About the product

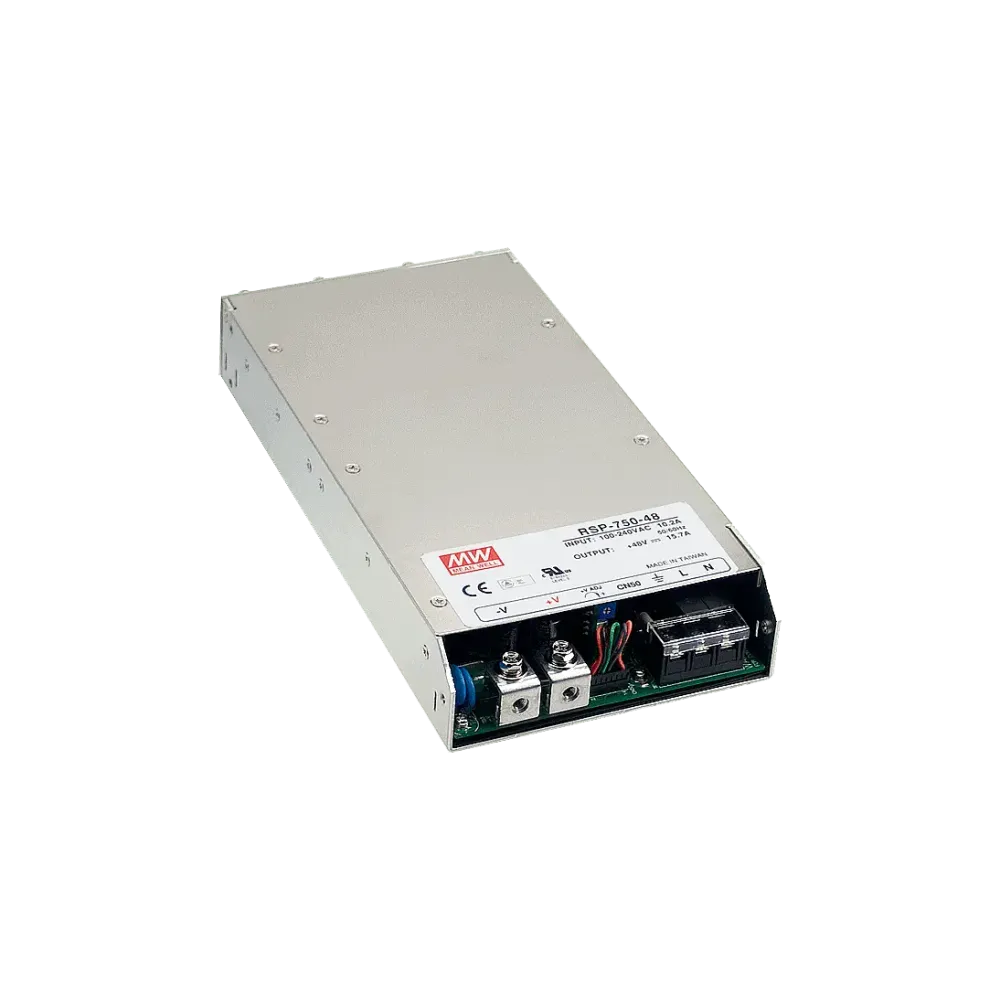

RSP-750-48 is a power supply unit in a housing for industrial applications.
Technical data
- Input voltage 90 to 264Vac
- With active PFC
- Remote Sense and On/Off functions integrated
- Auxiliary circuit 12V/0.1A
- Output voltage and output current can be trimmed between 40% and 110% using external control voltages from 2 to 5.5Vdc
- DC OK signal
- Air cooling with integrated, speed-controlled DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 250 x 127 x 41mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Control signals | Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense |
| Maximum VDC setting range | 55 V |
| Additional functions | 12VDC auxiliary output |
| Power | 753 W |
| Length | 250 mm |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Width | 127 mm |
| Input voltage range (VAC) | 85-264 V |
| Height | 41 mm |
| Output voltage (VDC) | 48 V |
| Minimum VDC setting range | 43 V |
