About the product

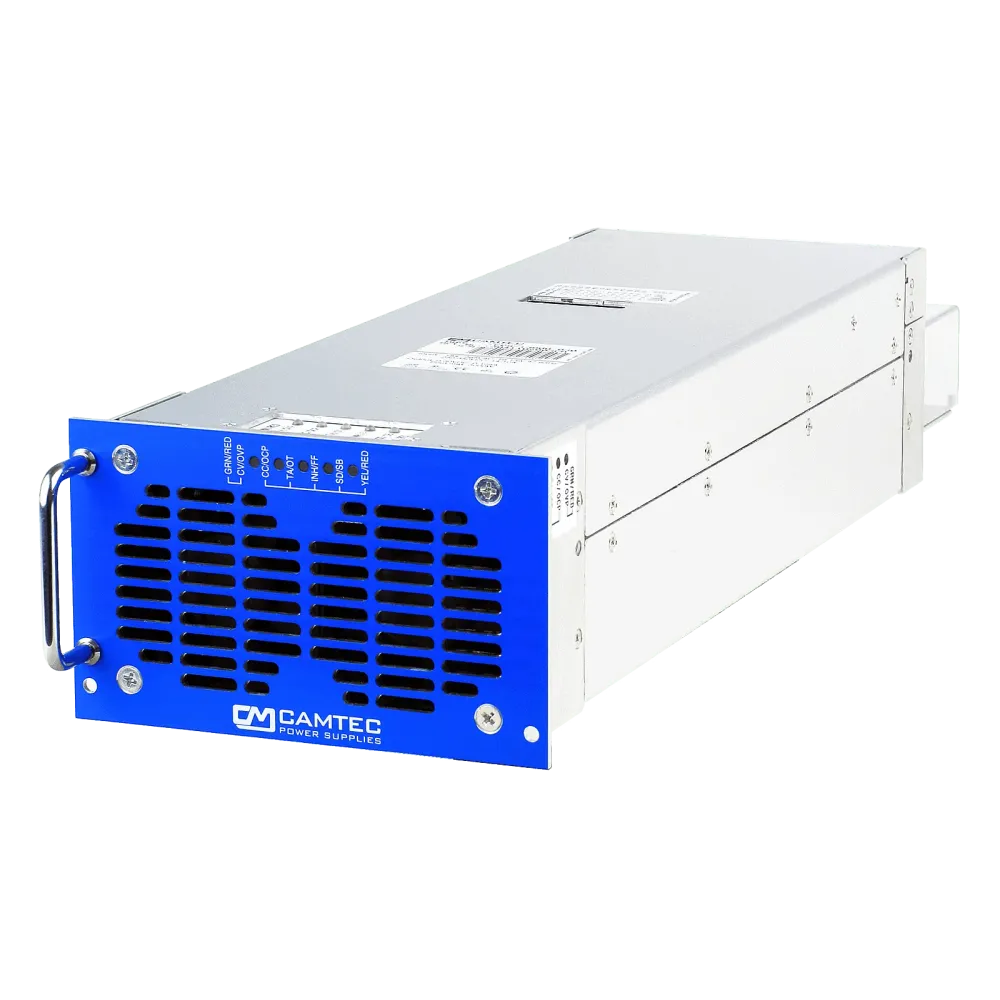

The Camtec CPS-EX3000 series are high-precision, programmable power supply units "Made in Germany". Thanks to the unique mechanical system, the power supply units can be installed flexibly in any desired mounting direction.

Technical data

3D-HD (3D Heat Dissipation) enables 360° mounting in three-dimensional space
Interface Real-time C/V programming
Interface real-time & real value C/V monitoring
Reference voltage for self-programming
CSB Current Share Bus
Inhibit / Interlock for safety shutdown
Remote shutdown
Scythe operation
Power Good Relay DC-OK
Precise dynamics during load changes
N+1 scalable up to over 100KW
Efficiency 92-94%
PFC power factor 0.99
Steplessly controlled Pope fans
Long service life under stress operation
EMC compliant Conducted Class B, radiated Class A
19 Subframes 2U and 3 optional
Dimensions 84×126.4x444mm

Product specifications

Output voltage (VDC)	12 V
Status signals	DC OK relay contact, voltage monitoring, current monitoring, temperature alarm
Control signals	Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense
Maximum VDC setting range	15 V
Additional functions	12VDC auxiliary output, switchable in parallel
Height	84 mm
Width	126.4 mm
Length	444 mm
Power	2400 W
Protection class	Class I
Application	ITE/AV
Input voltage range (VAC)	184-264 V
Manufacturer	Camtec
Minimum VDC setting range	2 V
