About the product

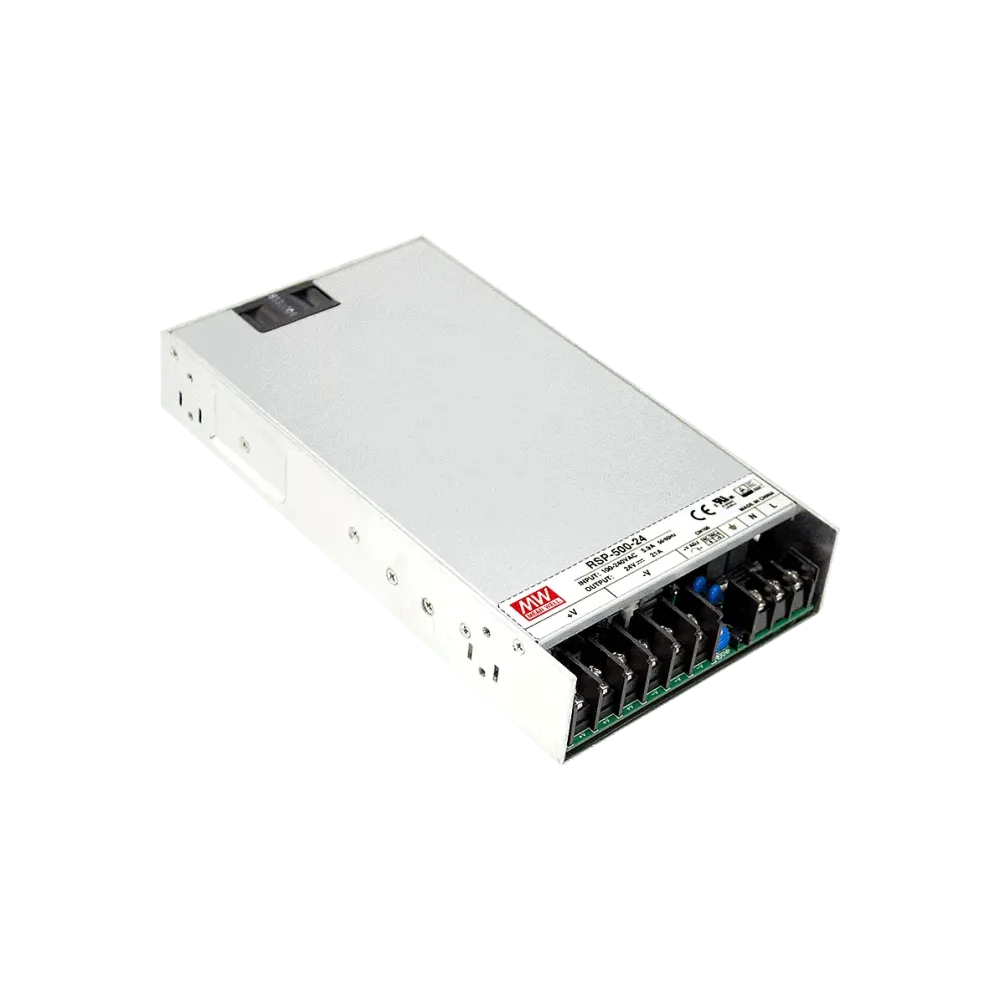

RSP-500-3.3 is a power supply unit in a housing for industrial applications.
Technical data
- Input voltage 85 to 264Vac
- With active PFC
- Remote Sense and Remote On/Off functions integrated
- Air cooling with integrated DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 230 x 127 x 40.5mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 3.6 V |
| Minimum VDC setting range | 2.8 V |
| Height | 40.5 mm |
| Length | 230 mm |
| Power | 297 W |
| Status signals | DC OK signal |
| Output voltage (VDC) | 3.3 V |
| Protection class | Class I |
| Application | ITE/AV |
| Width | 127 mm |
| Input voltage range (VAC) | 85-264 V |
| Control signals | Remote ON/OFF, Remote Sense |
