About the product

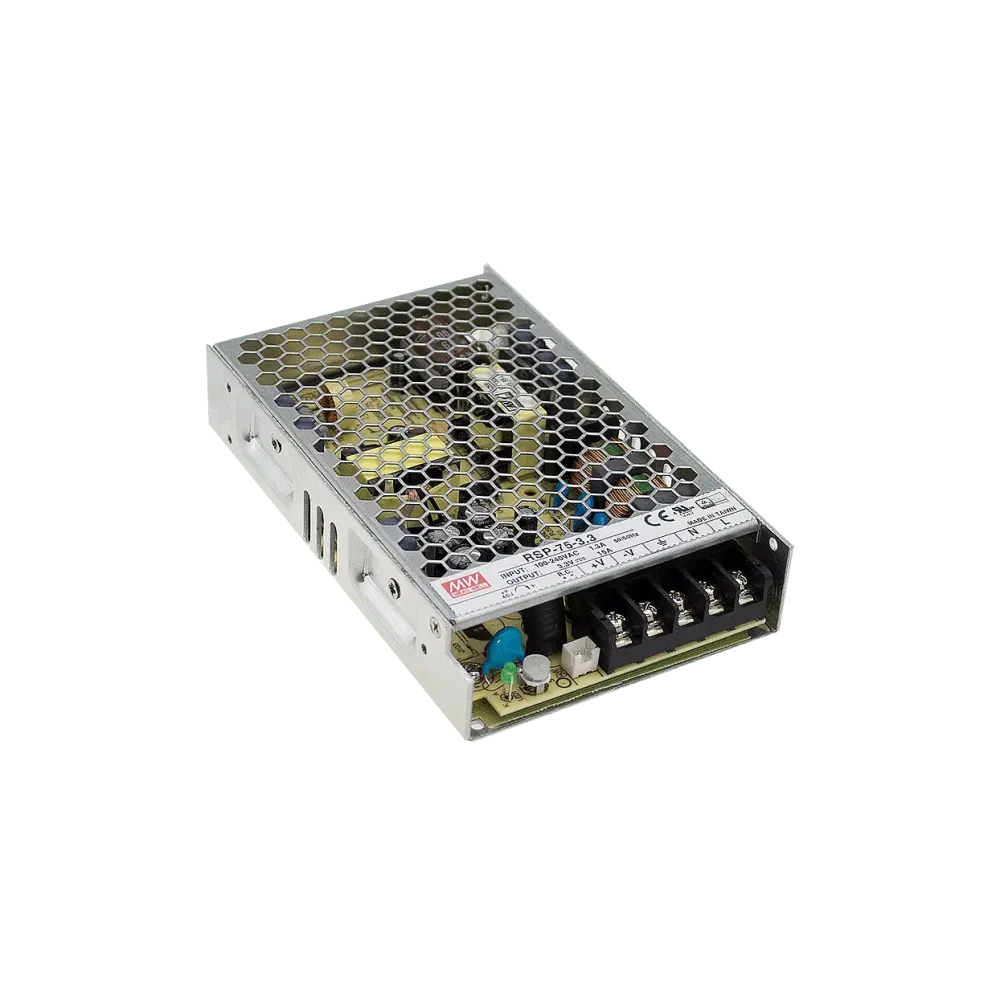

Mean Well RSP-75-3.3 switching power supply with active power factor correction.
Technical data
- Input voltage 85 to 264Vac
- With active PFC
- Metal housing with screw terminals
- Remote On/Off function
- Operating temperature range from -25°C to +70°C
- Dimensions 159 x 97 x 30mm (L x W x H)
Product specifications
| Height | 30 mm |
| Maximum VDC setting range | 3.6 V |
| Application | Budget, ITE/AV |
| Control signals | Remote ON/OFF |
| Power | 49 W |
| Output voltage (VDC) | 3.3 V |
| Width | 97 mm |
| Length | 159 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 3.3 V |
