About the product

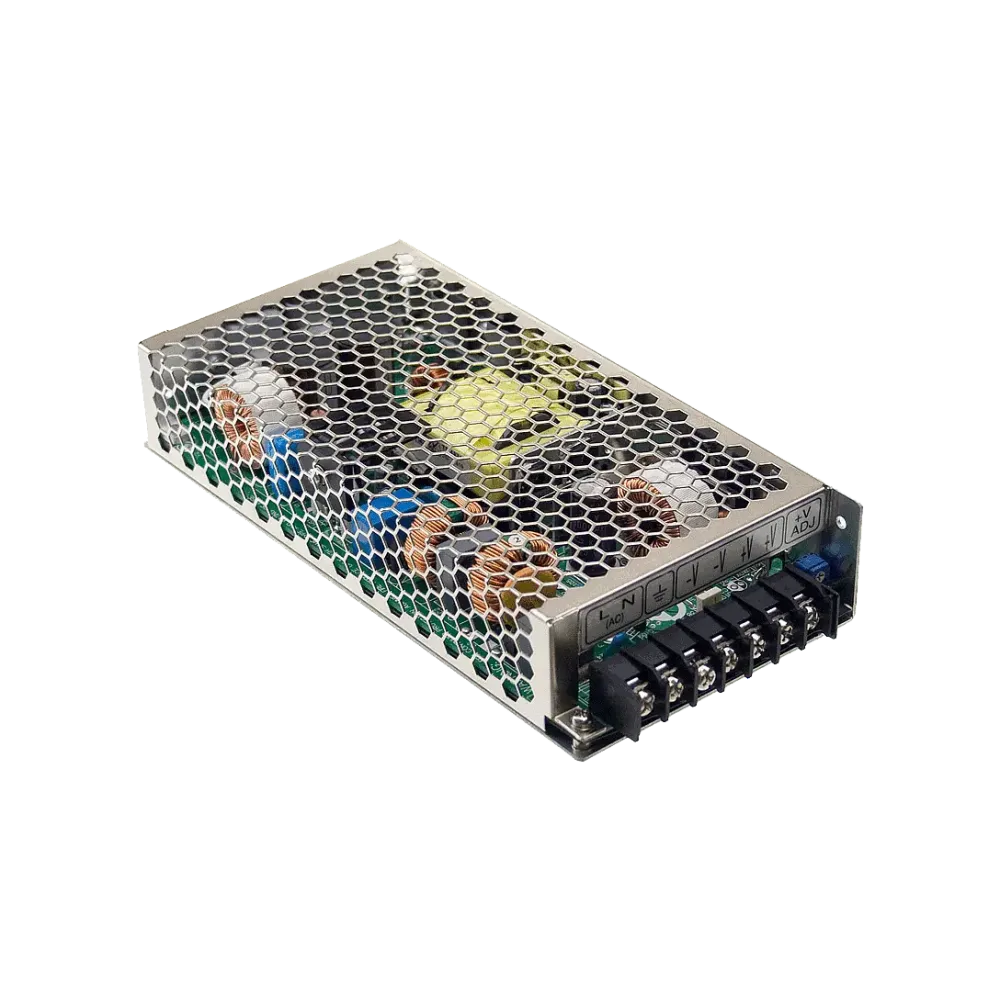

MSP-200-48 is a robust, fanless switching power supply for medical MOOP applications with high demands on service life and reliability.
Technical data
- Input voltage 85 to 264Vac
- With active PFC
- Power consumption at no load 0.5W
- Medical approval (MOOP level)
- Leakage current ≤300µA
- Remote Sense function
- Remote On/Off function
- Standby 5V/0.3A
- Operating temperature range from -40°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Dimensions 199 x 98 x 38mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 40.8 V |
| Maximum VDC setting range | 55.2 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Power | 206 W |
| Application | Medical |
| Width | 98 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Height | 38 mm |
| Length | 199 mm |
| Output voltage (VDC) | 48 V |
| Additional functions | 5VDC auxiliary output |
