About the product

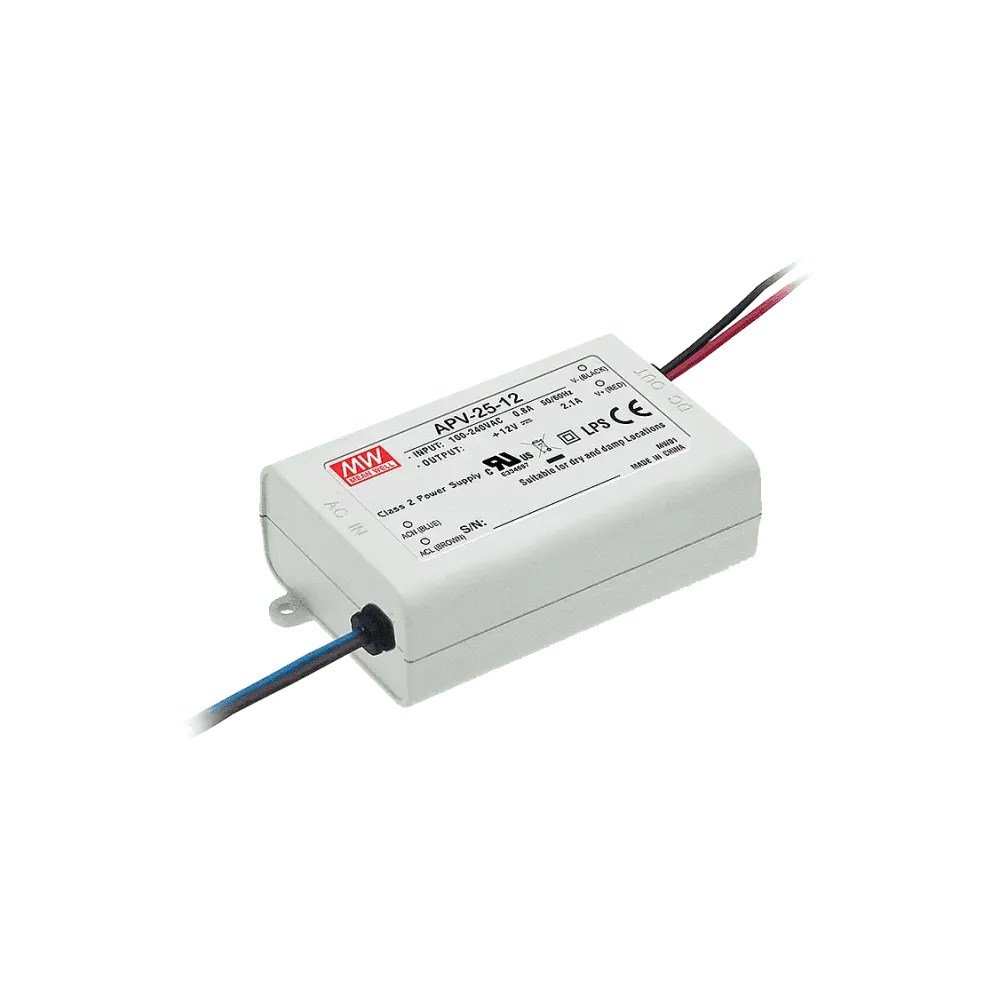

Power supply unit in plastic housing with cable connection and IP42 protection
Note:
Only for installation in devices with a primary use other than lighting, e.g. photocopiers, overhead and slide projectors or for scale and display lighting.
Technical data
- Input voltage 90 to 264Vac
- IP42 degree of protection
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -30°C to +70°C
- Dimensions 84 x 57 x 29.5mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Protection class | Class II |
| Application | ITE/AV |
| Power | 36 W |
| Height | 29.5 mm |
| Width | 57 mm |
| Length | 84 mm |
| Input voltage range (VAC) | 90-264 V |
| Manufacturer | MEAN WELL |
| IP protection | IP42 |
