560W power supply unit 20V/28A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

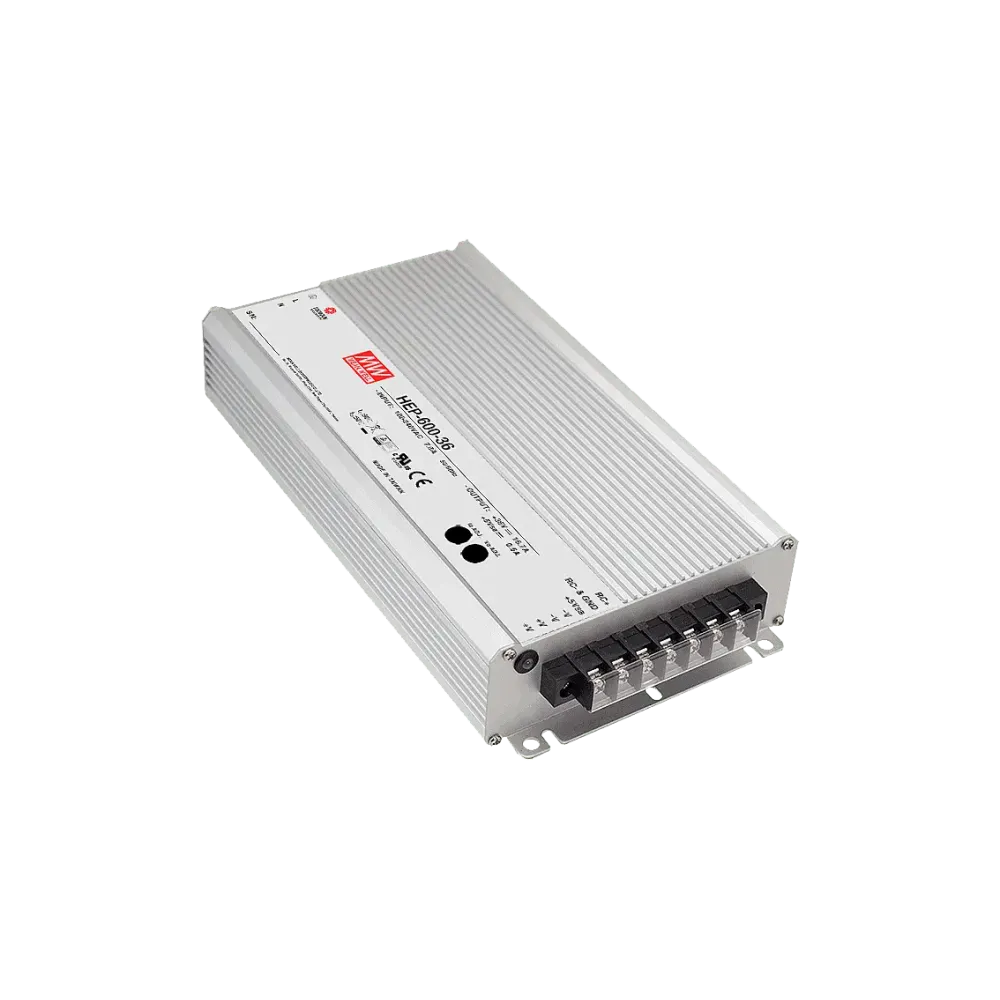

HEP-600-20 is a robust power supply unit for harsh environmental conditions. Thanks to its fully encapsulated construction, the power supply unit is designed for use in damp, dusty, oily and high-vibration environments.

Technical data

Input voltage 90 to 305Vac
With active PFC
Current and voltage adjustable on the power supply unit
Designed for operations up to max. 5000m.a.s.l. operating altitude
Very robust design with a long service life
Fully encapsulated in aluminum housing
Suitable for use in a harsh environment with high dust density, humidity, vibration and altitude
Operating temperature range from -55°C to +70°C
Surge immunity up to 6kV
Vibration test up to 10G
Dimensions 280 x 144 x 48.5mm (L x W x H)

Product specifications

Manufacturer	MEAN WELL
Maximum VDC setting range	21 V
Additional functions	5VDC auxiliary output
Control signals	Remote ON/OFF
Protection class	Class I
Application	ITE/AV
Input voltage range (VAC)	85-264 V
Power	560 W
Height	48.5 mm
Width	144 mm
Length	280 mm
Output voltage (VDC)	20 V
Minimum VDC setting range	17 V
