About the product

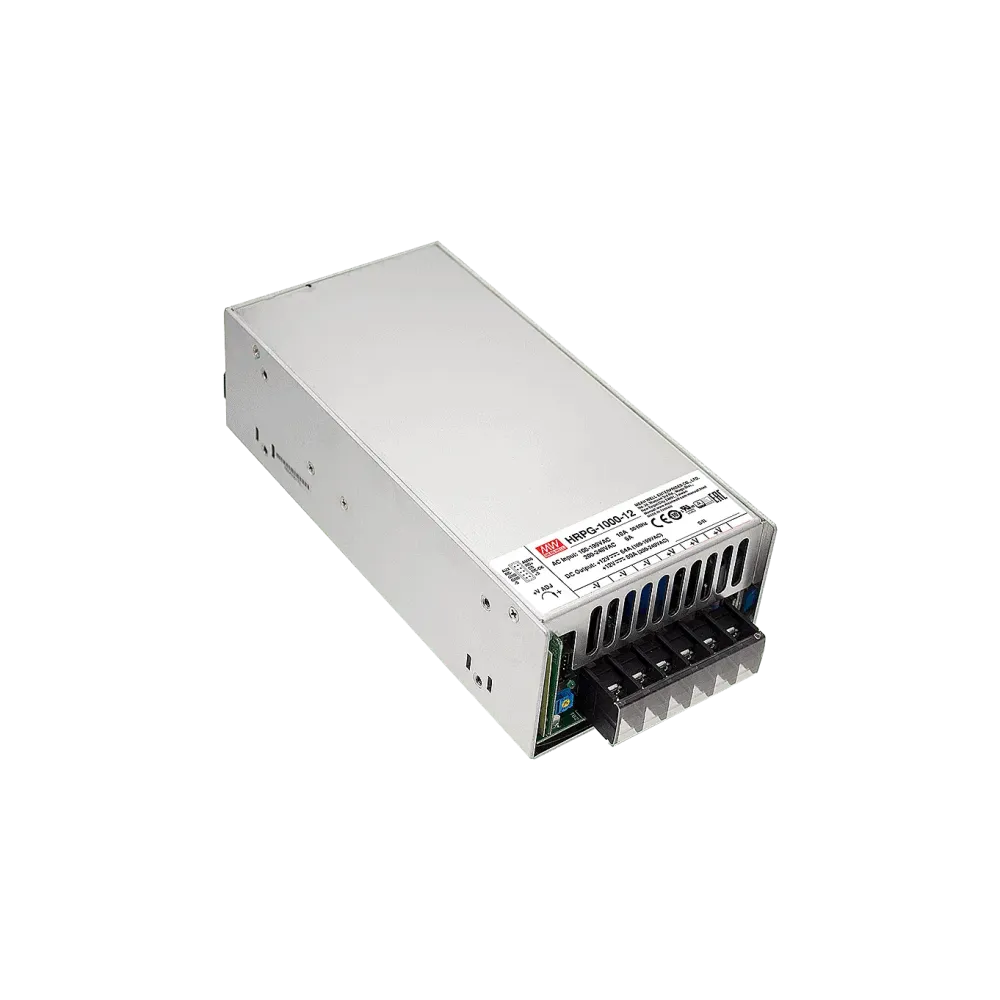

HRPG-1000-48 is a 1000W power supply unit in a housing for industrial applications. The power supply unit is cooled by a speed-controlled fan and can be used at ambient temperatures of up to 70°C.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- Remote On/Off
- Standby 5V@0.3A
- Remote Sense function
- Power consumption at no load 0.75W
- Current sharing up to 4000W (3+1)
- Air cooling with integrated fan
- Operating temperature range from -40°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Dimensions 218 x 105 x 63.5mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 56 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Additional functions | 5VDC auxiliary output, switchable in parallel |
| Height | 63.5 mm |
| Length | 218 mm |
| Width | 105 mm |
| Power | 1008 W |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 48 V |
| Minimum VDC setting range | 46 V |
