About the product

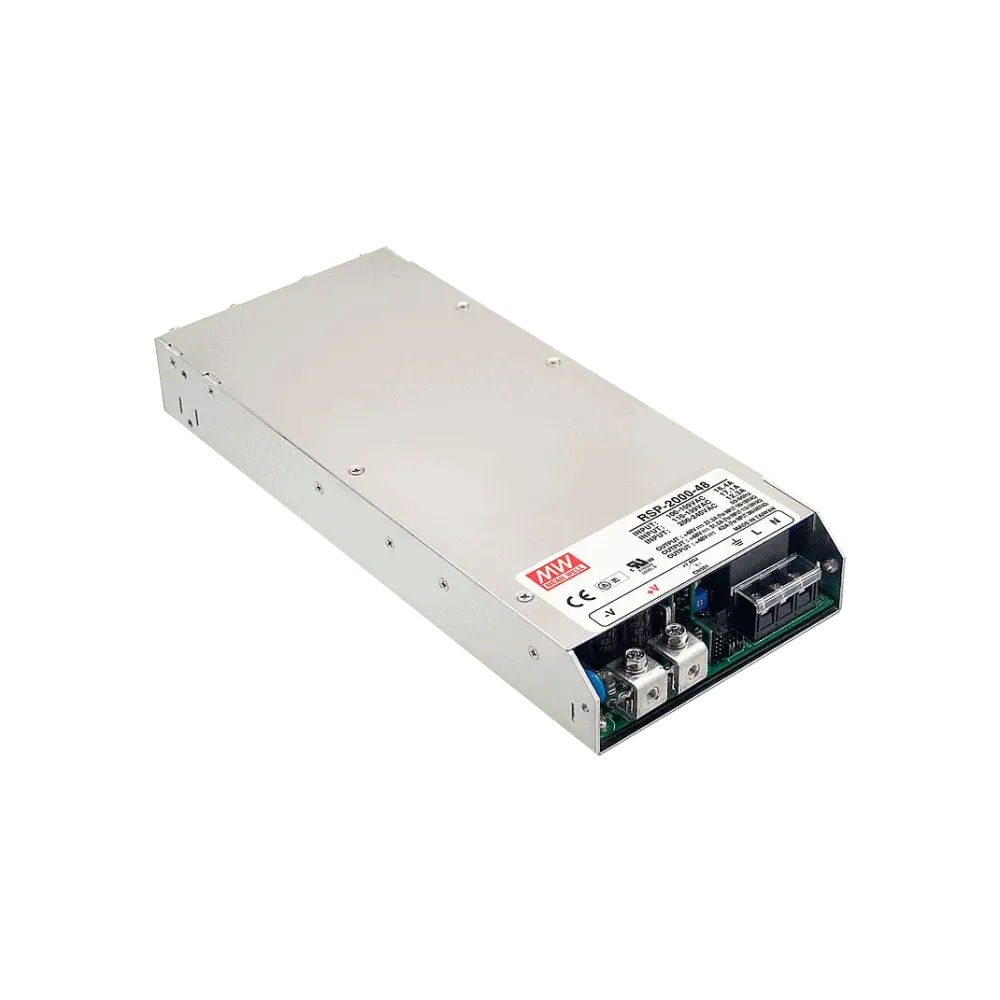

RSP-2000-12 is a power supply unit in a housing for industrial applications.
Technical data
- Input voltage 90 to 264Vac
- With active PFC
- Remote Sense and Remote On/Off functions integrated
- Auxiliary circuits 5V/0.3A and 12V/0.8A
- Output voltage can be trimmed between 40 - 115% using an external control signal
- Active current sharing up to 8000W (3+1)
- DC OK signal and overtemperature alarm signal (OTP)
- Air cooling with integrated, speed-controlled DC fan
- Operating temperature range from -35°C to +70°C
- Dimensions 295 x 127 x 41mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output, switchable in parallel |
| Maximum VDC setting range | 14 V |
| Minimum VDC setting range | 4.8 V |
| Control signals | Programmable voltage, remote ON/OFF, remote sense |
| Power | 1200 W |
| Length | 295 mm |
| Protection class | Class I |
| Application | ITE/AV |
| Width | 127 mm |
| Height | 41 mm |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 12 V |
| Status signals | DC OK signal, temperature alarm |
