160W medical power supply 12V/13.3A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

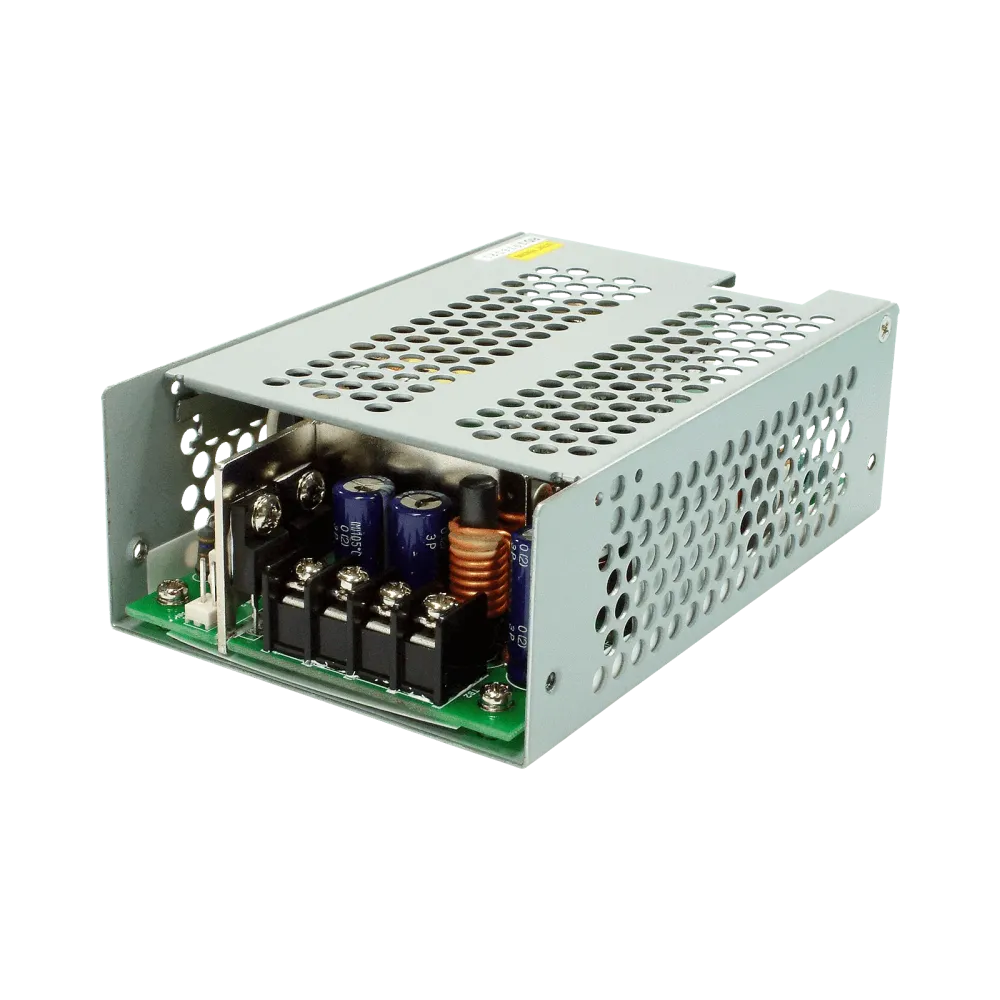

SNP-G16x-M is a reliable, medical power supply unit with a very high power density. The power supply unit is capable of supplying up to 320 W of power for short periods and is therefore ideal for operating motors, valves and other electromechanical components with high starting currents.

Technical data

Input voltage 90 to 264Vac
Medicine (2MOPP) and industry certification
320 watts peak load for 5 seconds.
Designed for operations up to max. 5000m.a.s.l. operating altitude
Remote Sense
12V output for fan
Efficiency 80% to 90%
Ambient temperature -20°C to +70°C
Power consumption at no load <0.5W
Dimensions 127 x 83.8 x 43mm (L x W x H)

Product specifications

Output voltage (VDC)	12 V
Control signals	Remote sense
Manufacturer	Skynet
Height	43 mm
Width	83.8 mm
Length	127 mm
Application	Medical
Protection class	Class I
Power	160 W
Input voltage range (VAC)	90-264 V
Additional functions	12VDC auxiliary output, peak power
