About the product

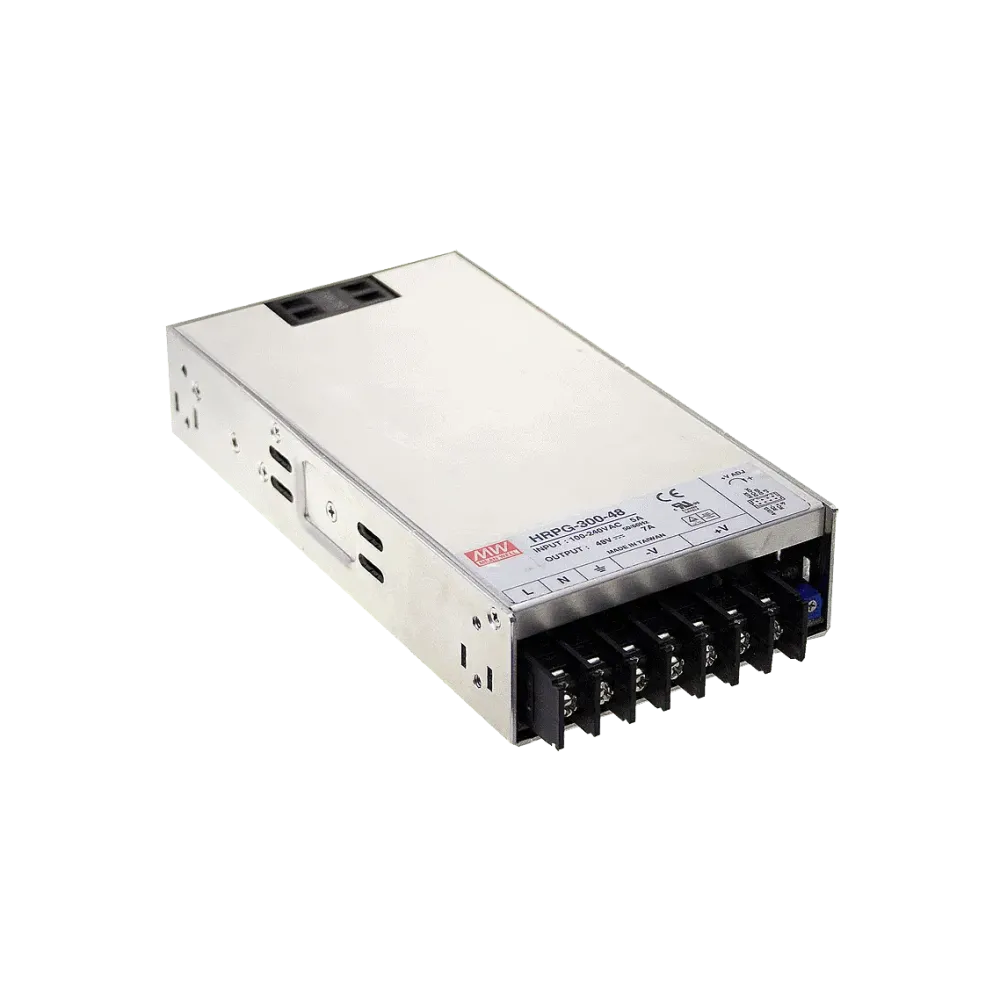

HRP-300-15 is a robust switching power supply with integrated fan for applications with high demands on service life and reliability.
Technical data
- Input voltage 85 to 264Vac
- With active PFC
- Remote Sense function
- DC OK signal
- Air cooling with integrated fan
- Operating temperature range from -40°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Dimensions 199 x 105 x 41mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 13.5 V |
| Control signals | Remote sense |
| Power | 330 W |
| Width | 105 mm |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 85-264 V |
| Height | 41 mm |
| Output voltage (VDC) | 15 V |
| Length | 199 mm |
| Maximum VDC setting range | 18 V |
