About the product

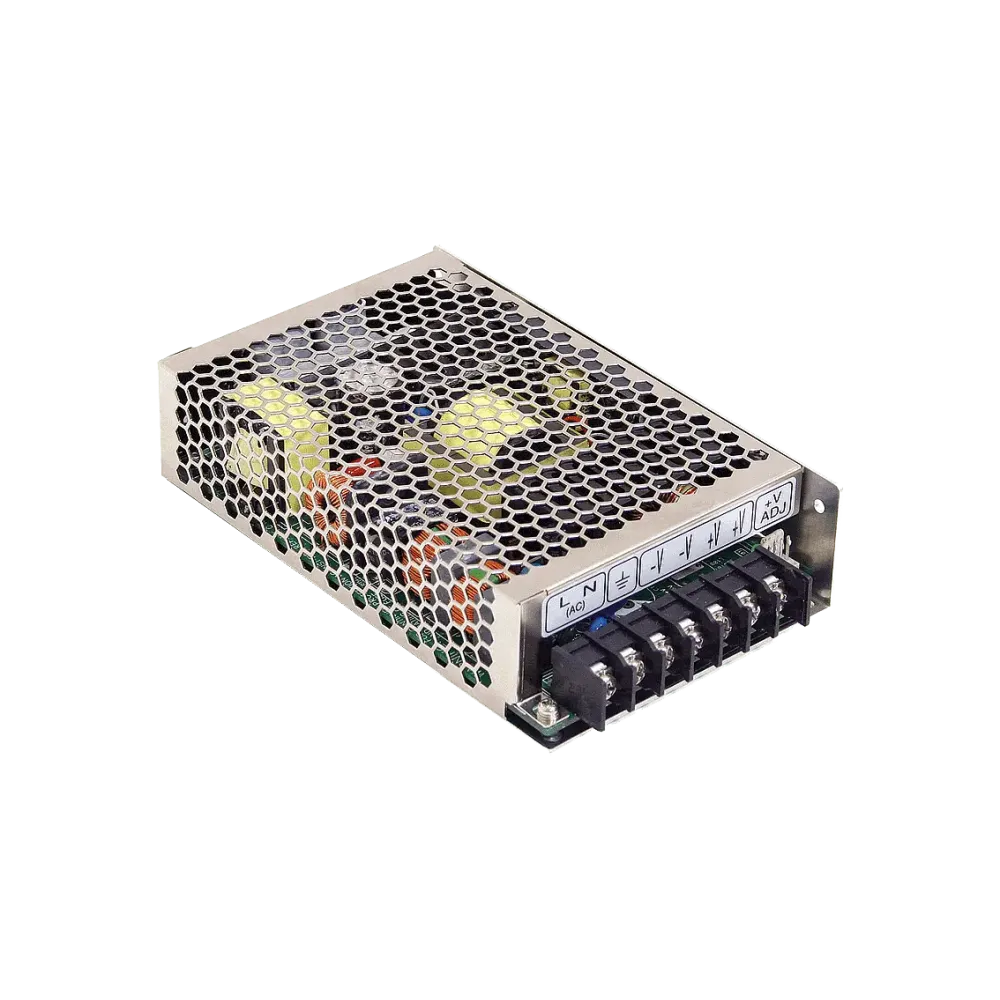

HRPG-150-24 is a robust, fanless switching power supply for applications with high demands on service life and reliability with stand-by function
Technical data
- Input voltage 85 to 264Vac
- With active PFC
- Remote On/Off
- Standby 5V@0.3A
- Remote Sense function
- Power consumption at no load <0.5W
- Operating temperature range from -40°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Dimensions 159 x 97 x 38mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Minimum VDC setting range | 21.6 V |
| Maximum VDC setting range | 28.8 V |
| Width | 97 mm |
| Length | 159 mm |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 85-264 V |
| Height | 38 mm |
| Power | 156 W |
| Manufacturer | MEAN WELL |
| Additional functions | 5VDC auxiliary output |
