About the product

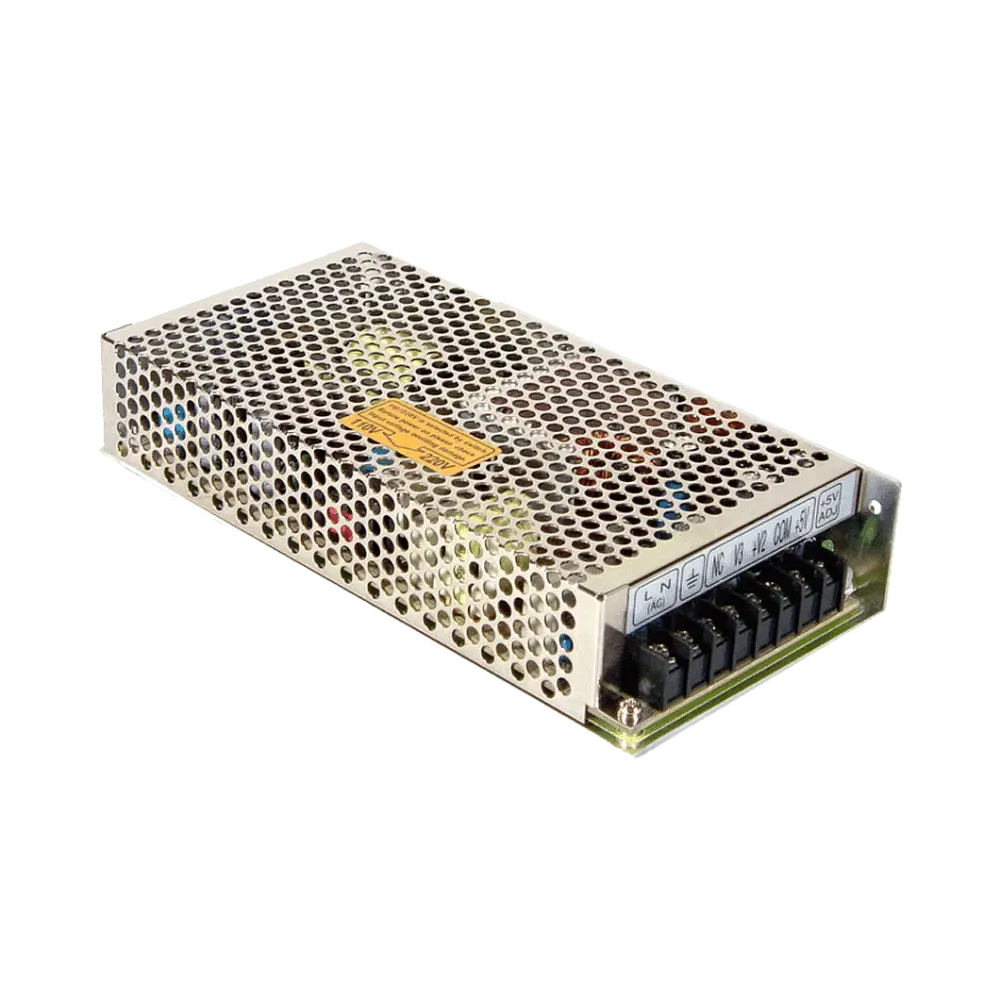

DUAL output power supply unit in perforated sheet metal housing. Outputs and GND isolated from channels 1 and 2.
Technical data
- Input voltage 88 to 132Vac / 176 to 264Vac switchable
- Dual output (no minimum loads!)
- Isolated outputs
- Metal housing with screw terminals
- Operating temperature range from -20°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Vibration test up to 5G
- Dimensions 199 x 98 x 38mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Length | 199 mm |
| Height | 38 mm |
| Application | ITE/AV |
| Protection class | Class I |
| Width | 98 mm |
| Output voltage (VDC) | 12-48 V |
| Power | 138 W |
| Input voltage range (VAC) | 110/230 V |
Data sheets
