About the product

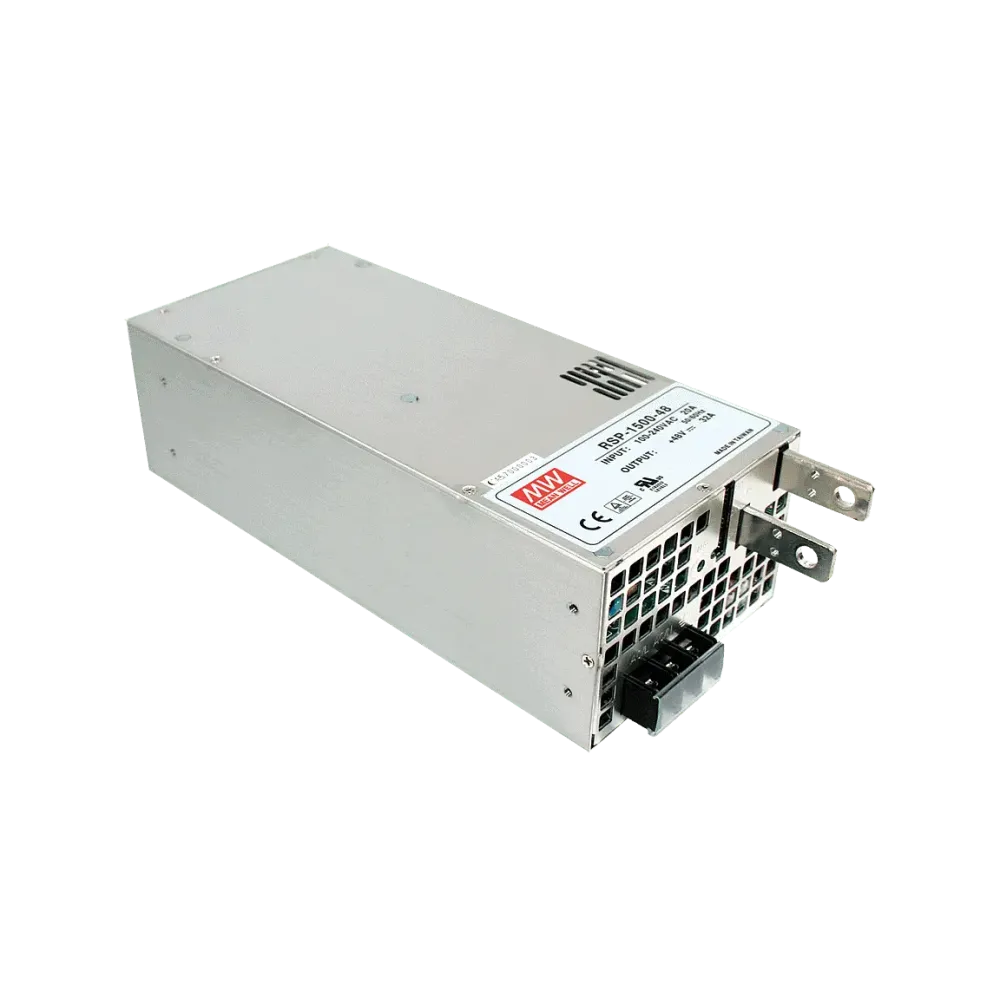

RSP-1500-48 is a power supply unit in a housing for industrial applications.
Technical data
- Input voltage 90 to 264Vac
- With active PFC
- Remote Sense and Remote On/Off functions integrated
- Auxiliary circuit 12V/0.1A
- Output voltage can be trimmed between 70 - 100% using an external resistor
- Current sharing up to 6000W (3+1)
- Alarm signal output
- Air cooling with integrated DC fan
- Operating temperature range from -20°C to +70°C
- Dimensions 278 x 127 x 83.5mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 56 V |
| Control signals | Programmable voltage, remote ON/OFF, remote sense |
| Additional functions | 12VDC auxiliary output, switchable in parallel |
| Power | 1536 W |
| Height | 83.5 mm |
| Length | 278 mm |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Width | 127 mm |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 48 V |
| Minimum VDC setting range | 33.6 V |
Data sheets
