Item ID: 43984

50W power supply 24V/2.2A

Delivery at your place between May 21 and Jun 25 2025

About the product

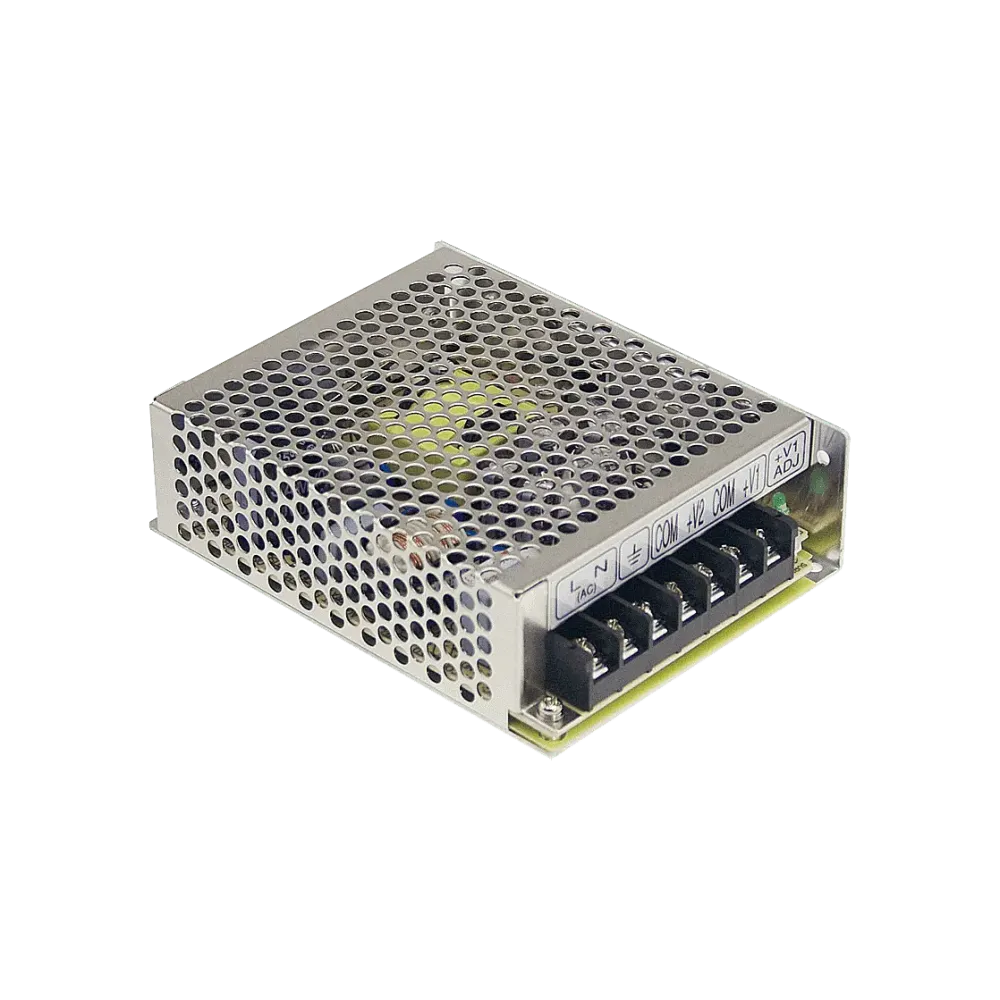

Mean Well RS-50-24 power supply unit in metal housing with screw terminals. Vibration-resistant up to 5G and 3-year guarantee.

Technical data
  • Input voltage 88 to 264Vac
  • Power consumption at no load <0.5W
  • Metal housing with screw terminals
  • Operating temperature range from -20°C to +70°C
  • Withstands surge voltages up to 300Vac for up to 5 seconds
  • Vibration test up to 5G
  • Dimensions 99 x 97 x 36mm (L x W x H)

Product specifications

Output voltage (VDC) 24 V
Maximum VDC setting range 27.6 V
Power 52 W
Length 99 mm
Width 97 mm
Input voltage range (VAC) 88-264 V
Protection class Class I
Application ITE/AV
Height 36 mm
Manufacturer MEAN WELL
Minimum VDC setting range 22 V

Data sheets

Accessories

20A redundancy module for 24V systems
20A redundancy module for 24V systems
30W DC/DC converter, input 9...36V, output 12V/2.5A
30W DC/DC converter, input 9...36V, output 12V/2.5A
Cover for 5-pin connection terminal MW
Cover for 5-pin connection terminal MW
