About the product

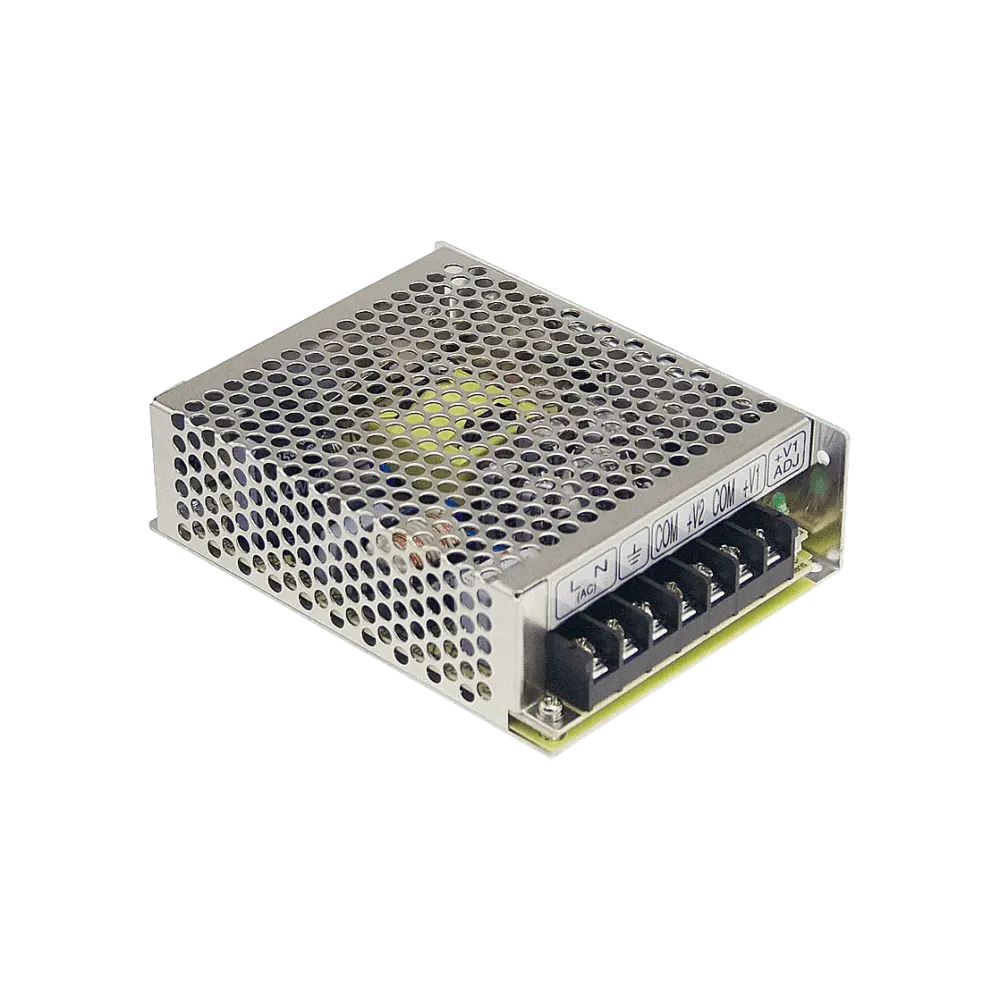

Mean Well RS-50-3.3 power supply unit in metal housing with screw terminals. Vibration-resistant up to 5G and 3-year guarantee.
Technical data
- Input voltage 88 to 264Vac
- Power consumption at no load <0.5W
- Metal housing with screw terminals
- Operating temperature range from -20°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Vibration test up to 5G
- Dimensions 99 x 97 x 36mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 3.6 V |
| Length | 99 mm |
| Power | 33 W |
| Output voltage (VDC) | 3.3 V |
| Width | 97 mm |
| Input voltage range (VAC) | 88-264 V |
| Protection class | Class I |
| Application | ITE/AV |
| Height | 36 mm |
| Minimum VDC setting range | 3 V |
