About the product

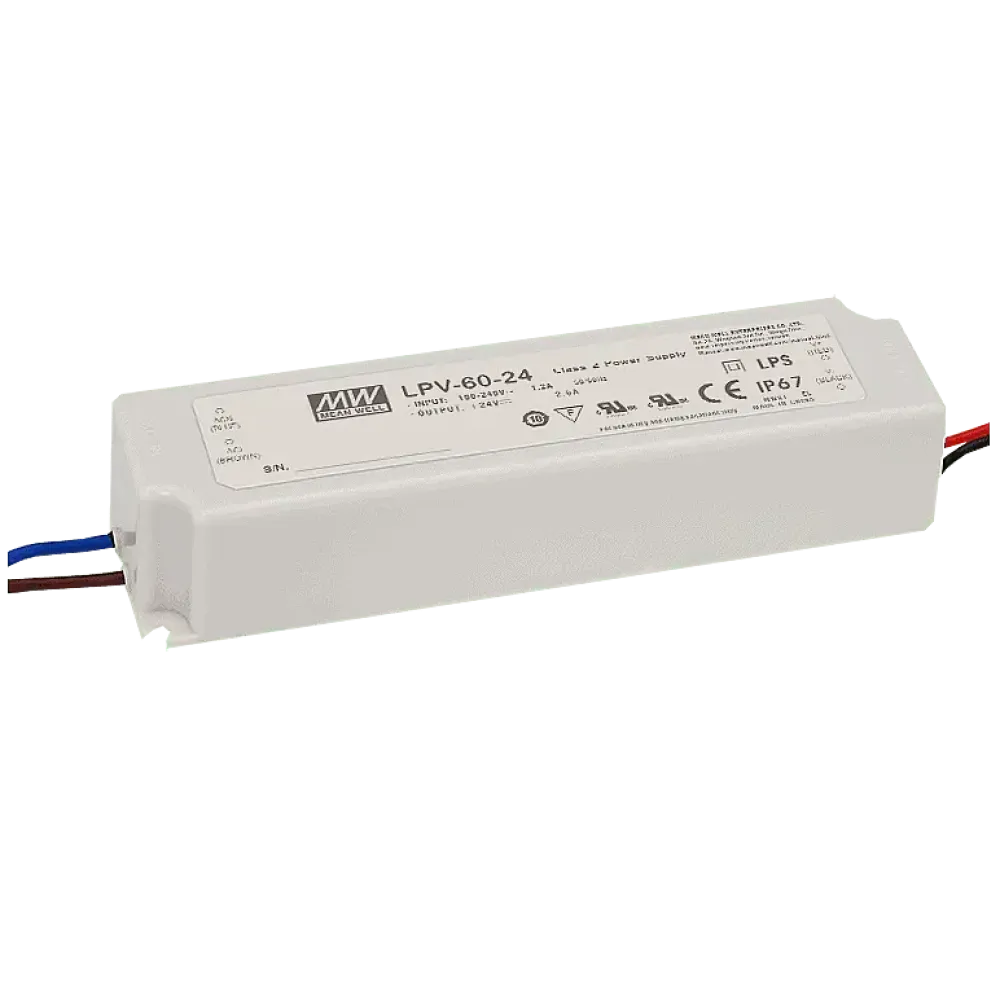

Power supply unit in plastic housing with cable connection
Note:
Only for installation in devices with a primary use other than lighting, e.g. photocopiers, overhead and slide projectors or for scale and display lighting.
Technical data
- Input voltage 90 to 305Vac
- Can be used as a constant voltage and constant current source
- IP42 degree of protection
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -30°C to +70°C
- Dimensions 162.5 x 42.5 x 32mm (L x W x H)
Product specifications
| Height | 32 mm |
| Manufacturer | MEAN WELL |
| Power | 60 W |
| Length | 162.5 mm |
| Output voltage (VDC) | 36 V |
| Input voltage range (VAC) | 90-264 V |
| Application | ITE/AV |
| Protection class | Class II |
| Width | 42.5 mm |
