400W power supply unit 5V/80A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

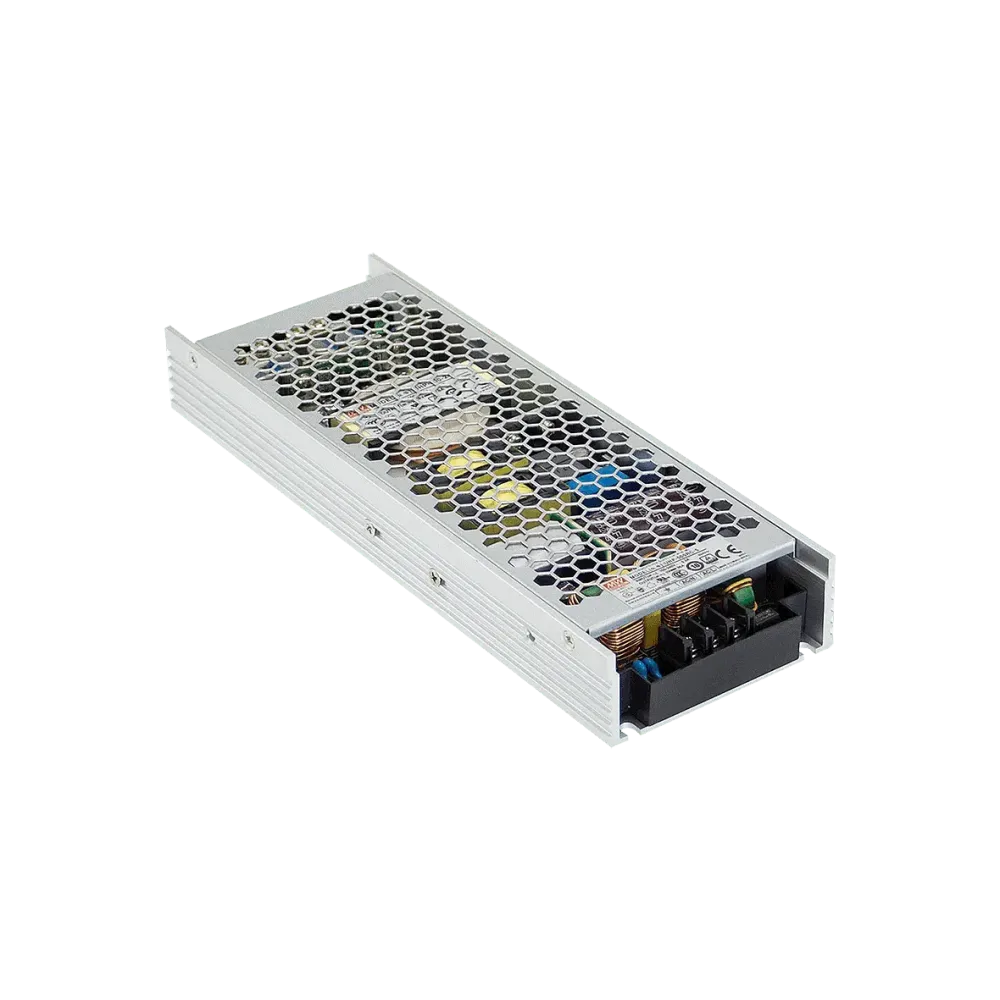

The UHP-500-5 is a slim, fanless power supply unit in a housing with a height of just 31 mm. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more.

Technical data

Input voltage 90 to 264Vac
with active PFC
Full load operation with conduction cooling (without fan)
Operating temperature range from -20°C to +70°C
Holds surge voltages up to 300Vac for up to 5 seconds
Approved for operation up to 5000 meters altitude
Dimensions 232 x 81 x 31mm (L x W x H)

Product specifications

Width	81 mm
Maximum VDC setting range	5.5 V
Application	Budget, ITE/AV
Length	232 mm
Protection class	Class I
Output voltage (VDC)	5 V
Power	400 W
Height	31 mm
Input voltage range (VAC)	90-264 V
Manufacturer	MEAN WELL
Minimum VDC setting range	4.5 V
