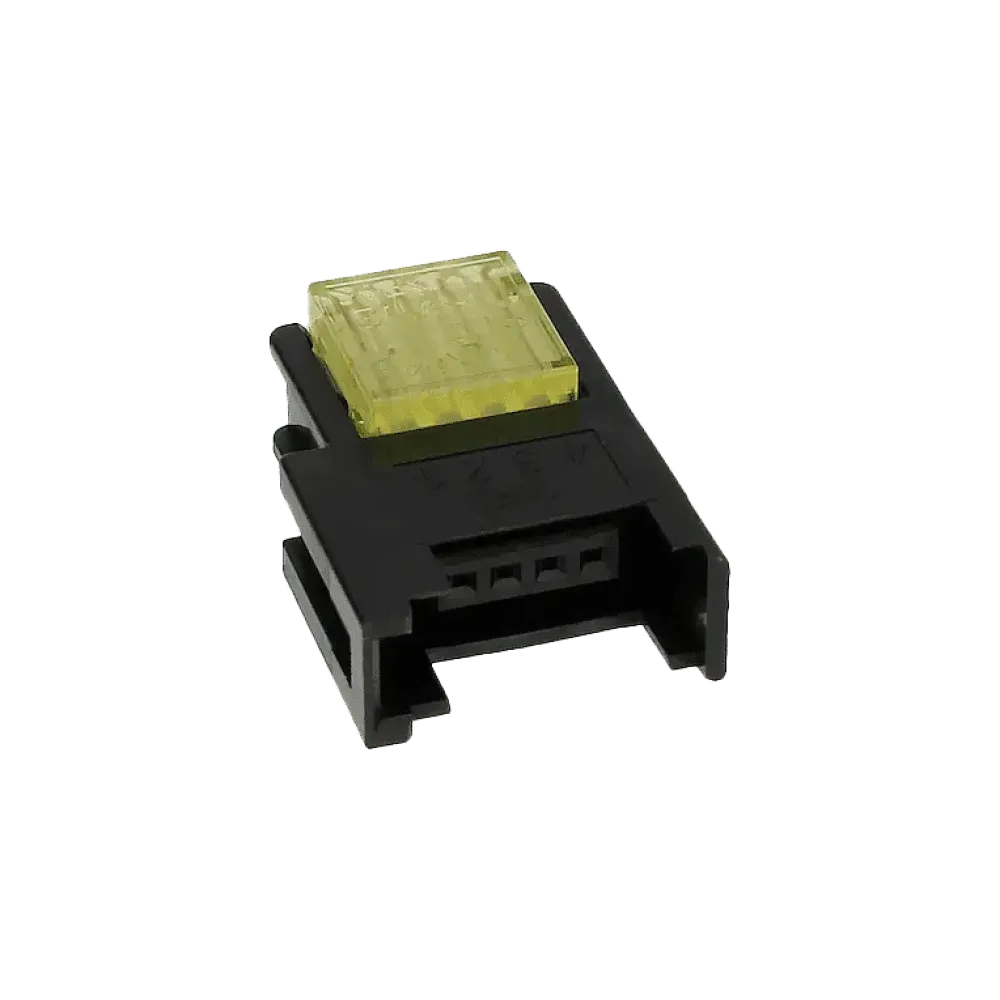

About the product
- Designed for the typical wiring specifications of European and North American suppliers.
. - Simple, fast and reliable IDC connection
. - Integrated cable holder
. - The design is suitable for different cable diameters
. - No special tools required
. - The locking mechanism enables a robust field connection
. - Compact design saves space on the board
. - High number of mating cycles
. - RoHS compliant as per regulatory information appendix E1 & C1
Technical data
Number of poles: 4 p
. Gender: Female
. Cable outlet: 180°
. Cable connection type: IDC
. Shielding: No
. Rated current: 3A
. Rated voltage: 32V
. Locking type: Latch-Lock
. Pitch: 2mm
. Connection cross-section (AWG): 20 AWG - 24 AWG
. Connection cross-section (mm²): 0.25 mm² - 0.5 mm²
. Operating temperature: -20 °C - 85 °C
. Contact surface on mating side: gold over nickel
. Color: black
. Flame retardancy: UL 94V-0
. Test voltage: 1000V
. Coding possible: No
. Color coding: yellow
. Design: Free plug connector
. Modular: No
Product specifications
| Manufacturer | 3M |
