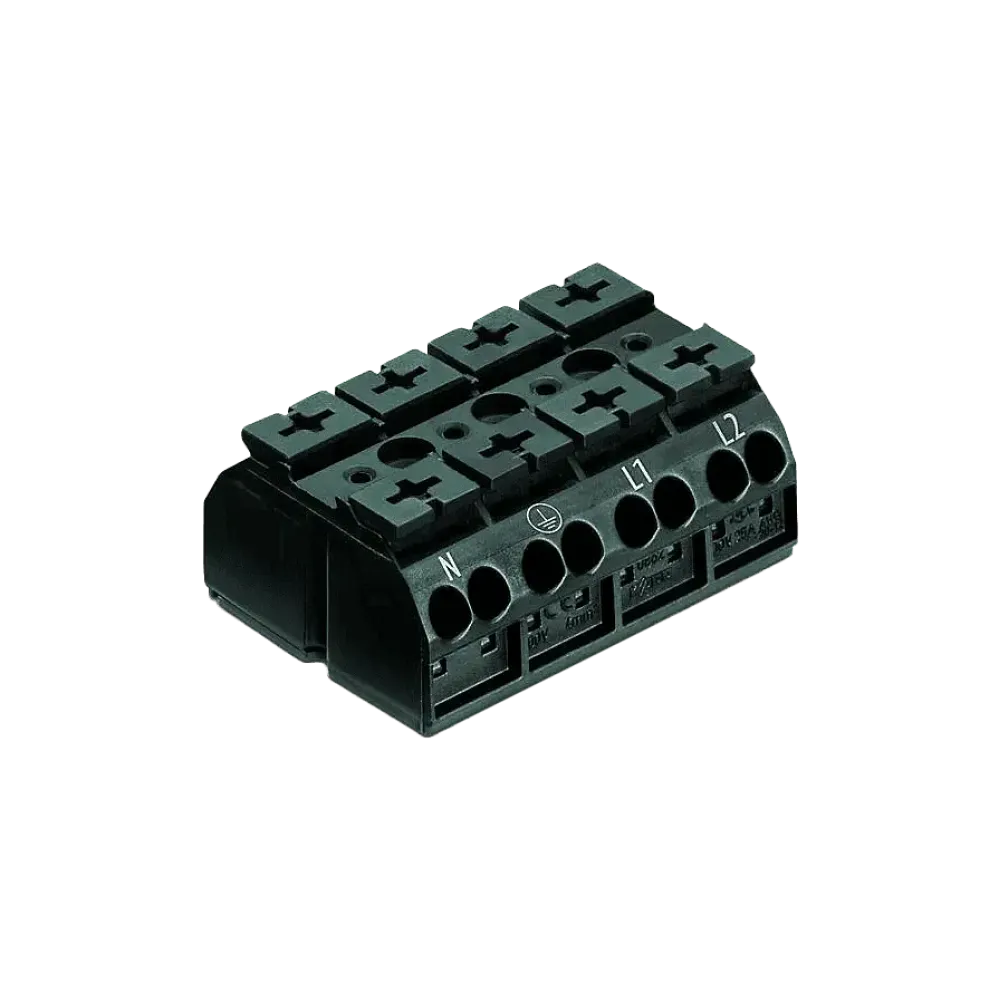

4-wire device connection terminal

4-wire device connection terminal
. 4-pole N-PE-L1-L2
. without PE contact
. 4 mm² 4.00 mm² black

Technical data

Rated voltage (III / 3) 500V
. Rated impulse voltage (III / 3) 6kV
. Rated current 32A
. Legend Rated data (III / 3) ≙ Overvoltage category III / pollution degree 3

Terminal points 16
. Total number of potentials 4
. PE function without PE contact

Connection technology Push-in CAGE CLAMP
. Actuation type lever handle
. Connectable conductor materials Copper
. Single-wire conductor 0.5 .. 4 mm² / 20 .. 12 AWG
. Single-wire conductor; can be plugged in directly >0.75 .. 4 mm² / 18 .. 12 AWG
. Stranded conductor 0.5 .. 4 mm² / 20 .. 12 AWG
. Fine-stranded conductor 0.5 .. 4 mm² / 20 .. 12 AWG
. Fine-stranded conductor; with wire end ferrule with plastic collar 0.5 .. 1.5 mm² / 20 .. 16 AWG
. Fine-stranded conductor; with ferrule, directly pluggable 0.75 mm² / 18 AWG
. Note (conductor cross-section) Depending on the properties of the conductor, a conductor with a smaller cross-section can also be plugged in directly.
. Stripping length 10 .. 11 mm / 0.39 .. 0.43 inch
. Number of poles 4
. Wiring direction Lateral wiring
