Item ID: 43799
Micro round plug, 3p, socket, screw connection, 0.25-1.0mm2, D5.8-6.9mm, IP66/IP68/IP69
About the product

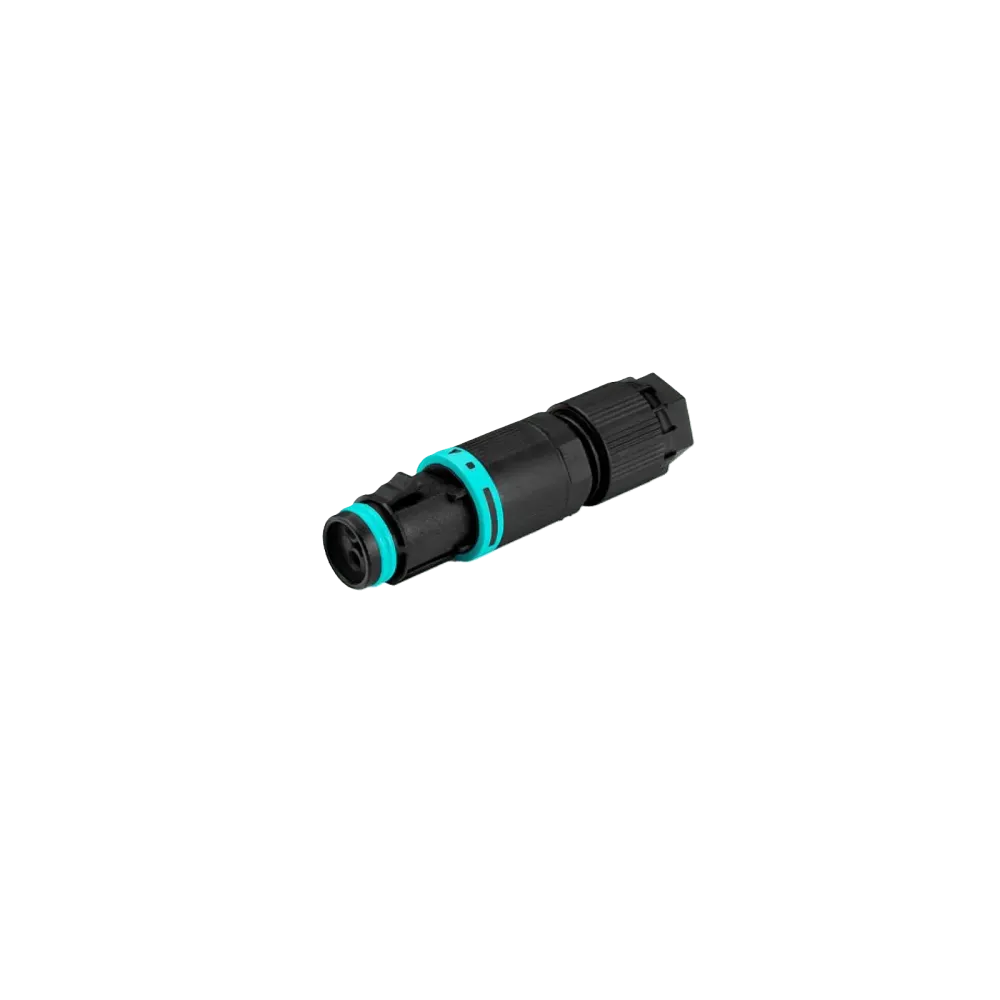

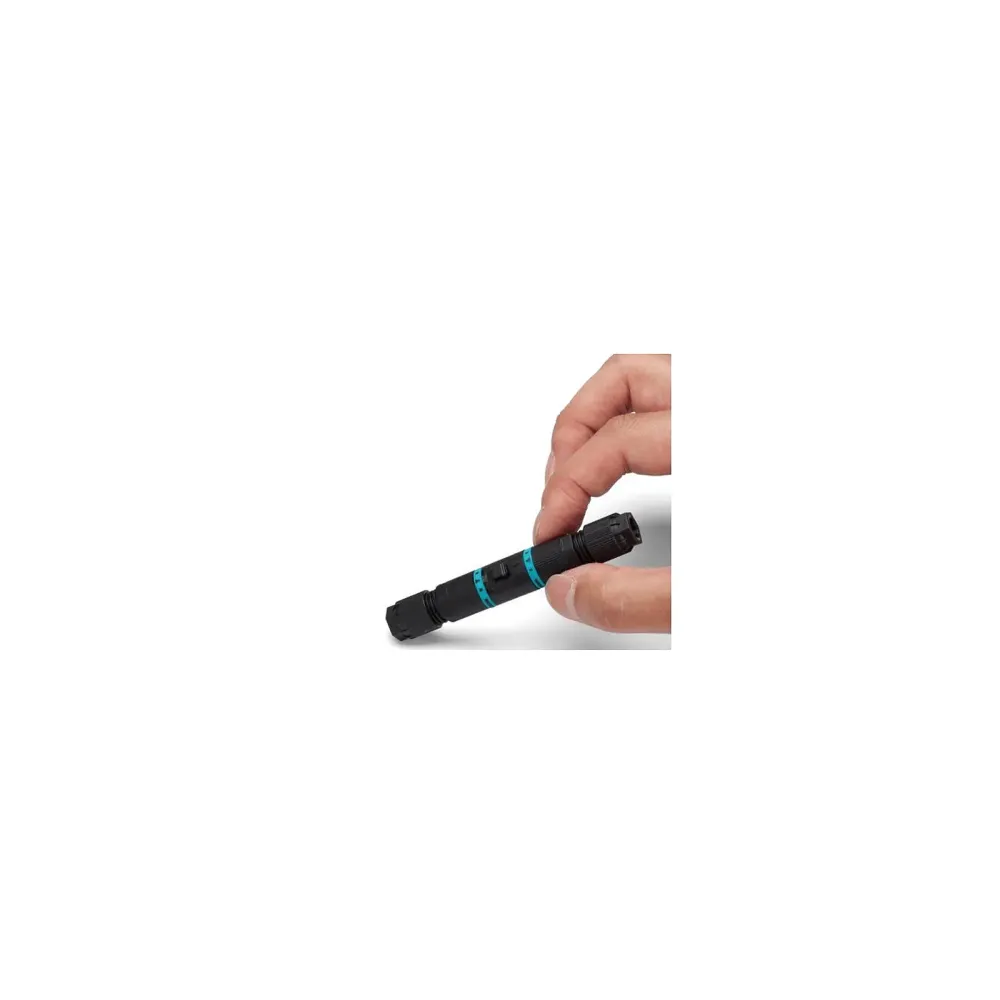

TH381 micro circular connector from Techno
Version: Socket
. Connection: Screw
. Locking: Push-Pull Saferlock
Other Techno products and designs on request.
Technical data
- 2p pole
- IP68 / 69K, 3bar (30m / 1h)
- Cable diameter: 5.8 - 6.9 mm
- Dimensions plugged in: 14 x 56mm
- 2 x 1.00 mm2
- 10 A / 400 V AC/DC, 250 V AC Protection class II / Approval: IEC (IMQ)
- -40°C..+125°C
- Manufacturer: Techno
Other Techno products and designs on request.
Product specifications
| Connection | Screw terminal |
| IP protection | IP69 - IP66 - IP68 |
| Connection cross-section (mm²) | 0.25 - 1.0 mm² |
| Number of poles | 3 |
| Temperature range | -40°C to 125°C |
| Product | Cable socket |
| Nominal voltage (V) | 250 V |
| Nominal current | 10 mA |
| Certificates | IEC |
| Manufacturer | Techno |
| Cable diameter | 7-8 mm |
