Item ID: 43758
Set: Mini circular connector, 3p, pin+socket, screw connection, D5-12, IP66/IP68
About the product

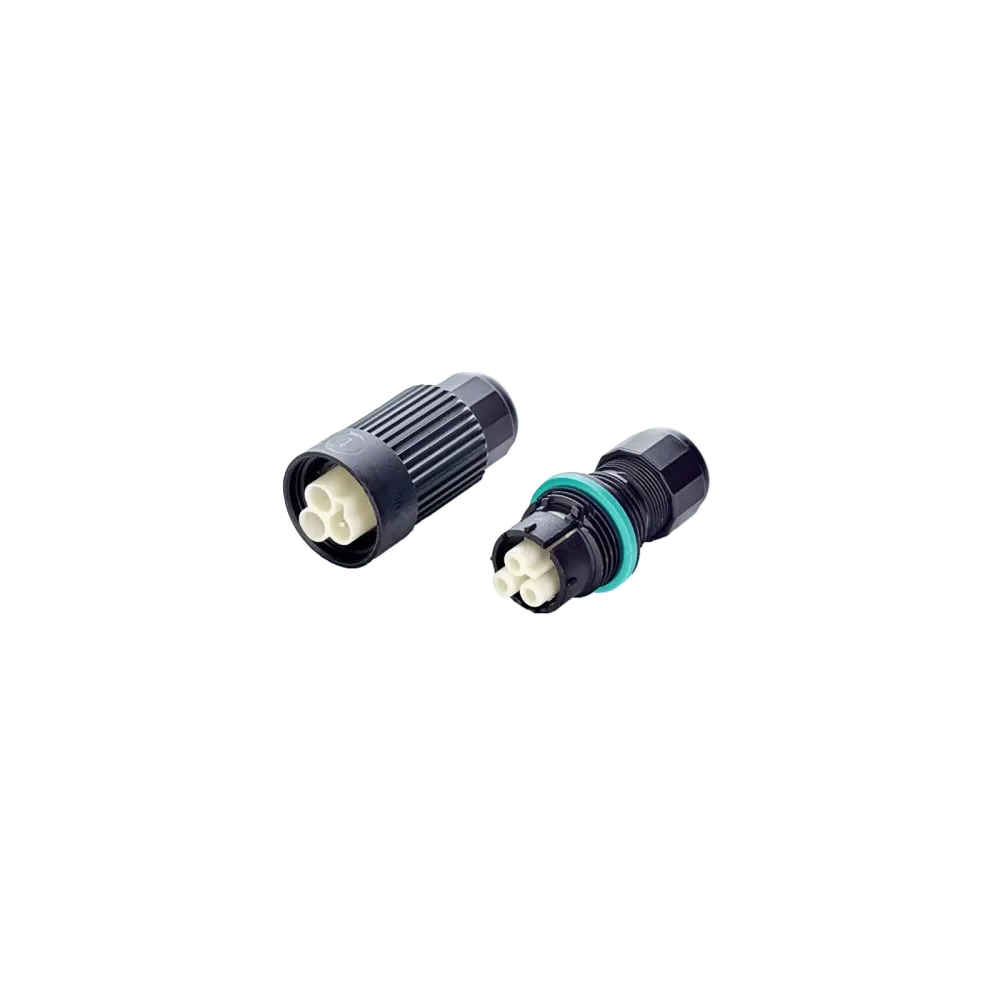

3-pin mini circular connector set TH384 with screw locking from Techno, Italy
Labeling: L-N-E
Version: Plug & socket
. Connection: Screw
. Locking: Screw
. Single packaging in plastic bag
Other Techno products and designs on request.
Technical data
Number of poles: 3

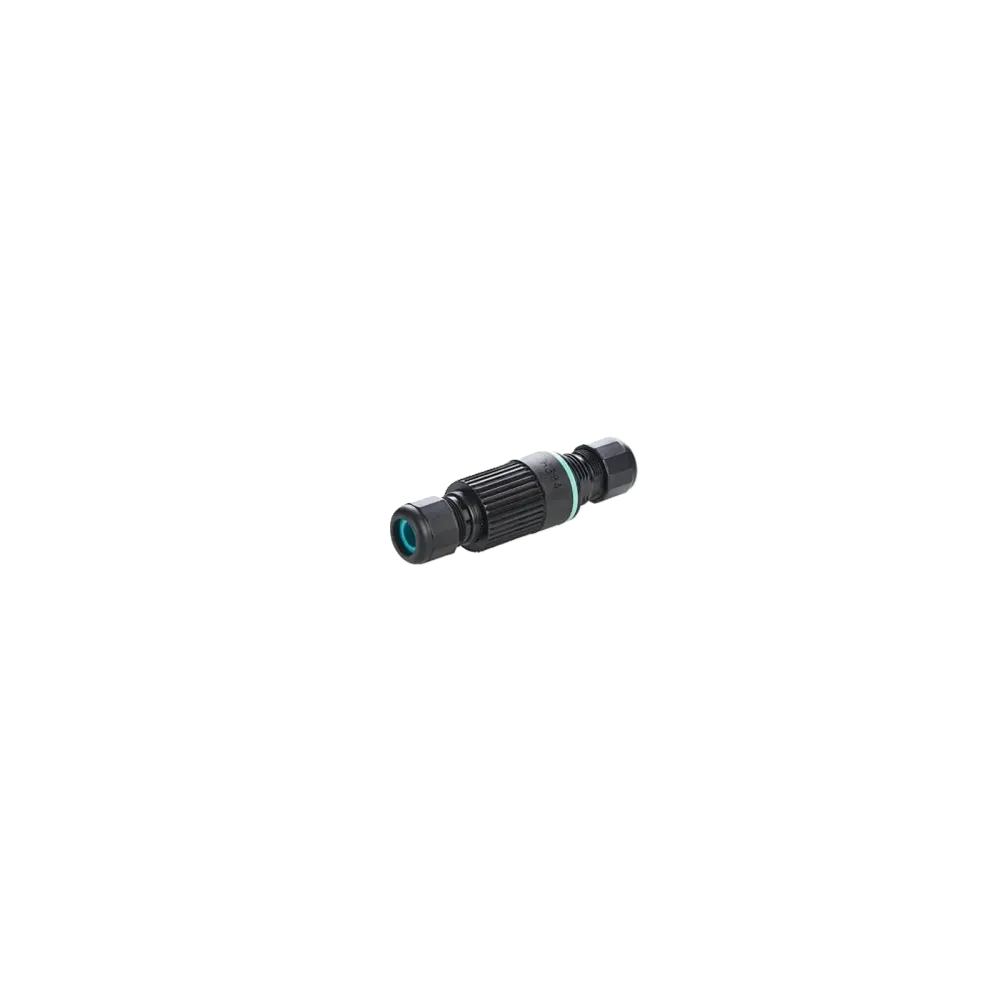

Dimensions when connected: Ø 27.0 x 95.0 mm
Protection class: IP66/IP68
Cable outer diameter: 5 - 12 mm
Cable cross-section: 0.5 - 2.5 mm²
Rated voltage: 400 V AC
Rated current: 16 A
Temperature range: -40°C..+125°C
Subject to errors and technical changes
Product specifications
| Connection | Screw terminal |
| Cable diameter | 5-9 mm |
| Product | Plug connector |
| Connection cross-section (mm²) | 0.5 - 2.5 mm² |
| Number of poles | 3 |
| Temperature range | -40°C to 125°C |
| IP protection | IP66 - IP68 |
| Nominal voltage (V) | 400 V |
| Nominal current | 16 A |
| Manufacturer | Techno |
| Certificates | IEC, CE |
