Item ID: 43755

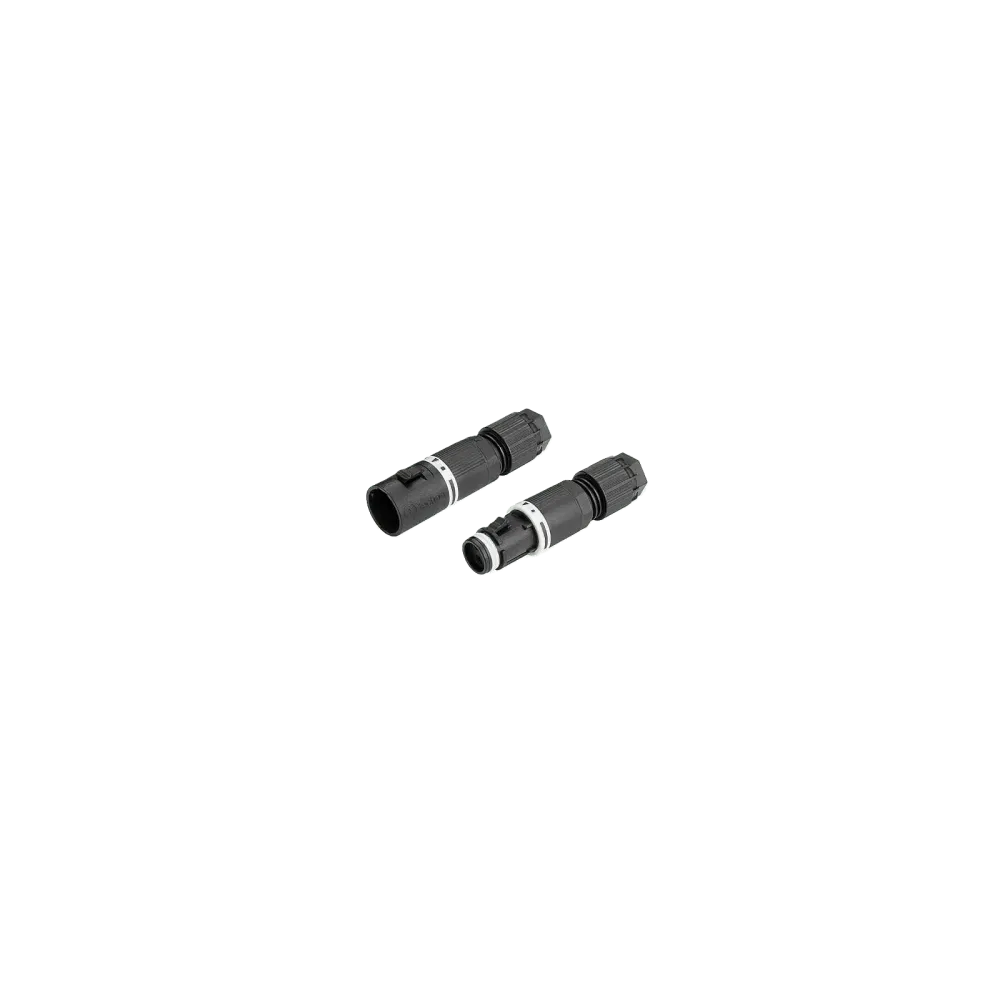

Set: Micro circular connector, 3p, male & female, screw connection, D4-8mm, IP66/IP68/IP69
About the product
3-pin micro circular connector set TH381 with push-pull locking from Techno, Italy
Labeling: 1-2-3
Version: Plug & socket
. Connection: Screw
. Locking: Push-pull
. Single packaging in plastic bag
Other Techno products and designs on request.
Technical data
Number of poles: 3
Protection class: IP66/IP68/IP69
Cable outer diameter: 4 - 8mm
Dimensions plugged in: Ø 14.0 x 90.0mm
Cable cross-section: 0.25-1.0mm²
Rated voltage: 500 V
Rated current: 10 A
Temperature range: -40°C..+125°C
Manufacturer: Techno
Subject to errors and technical changes
Product specifications
| Connection | Screw terminal |
| Product | Plug connector |
| IP protection | IP69 - IP66 - IP68 |
| Connection cross-section (mm²) | 0.25 - 1.0 mm² |
| Number of poles | 3 |
| Temperature range | -40°C to 125°C |
| Nominal voltage (V) | 500 V |
| Nominal current | 10 mA |
| Certificates | IEC |
| Manufacturer | Techno |
| Cable diameter | 4-8 mm |
