About the product

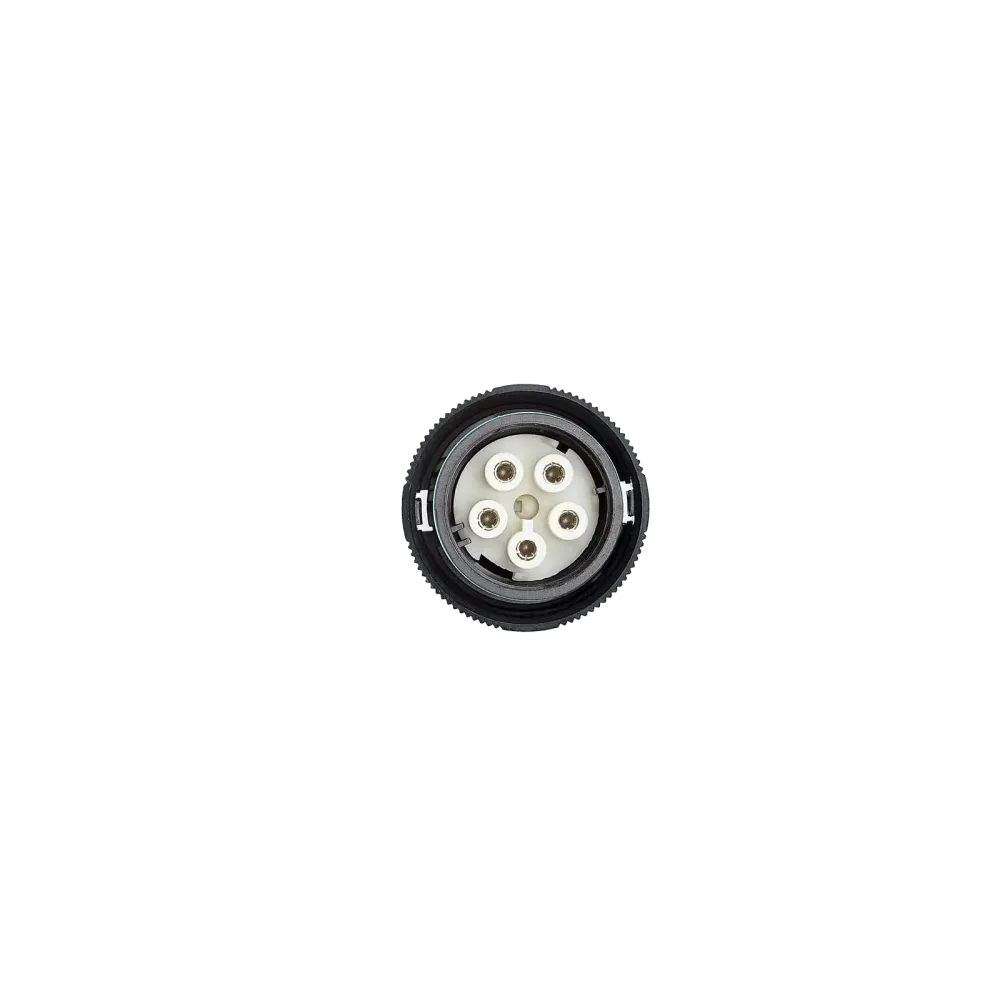

5-pin mini round socket THB405 with bayonet lock from Techno, Italy
Version: Socket
Connection: Screw
Locking: Bayonet
Counterpart: THB.405.A2A
Other Techno products and designs on request.
Technical data
Number of poles: 5
Protection class: IP66/IP68

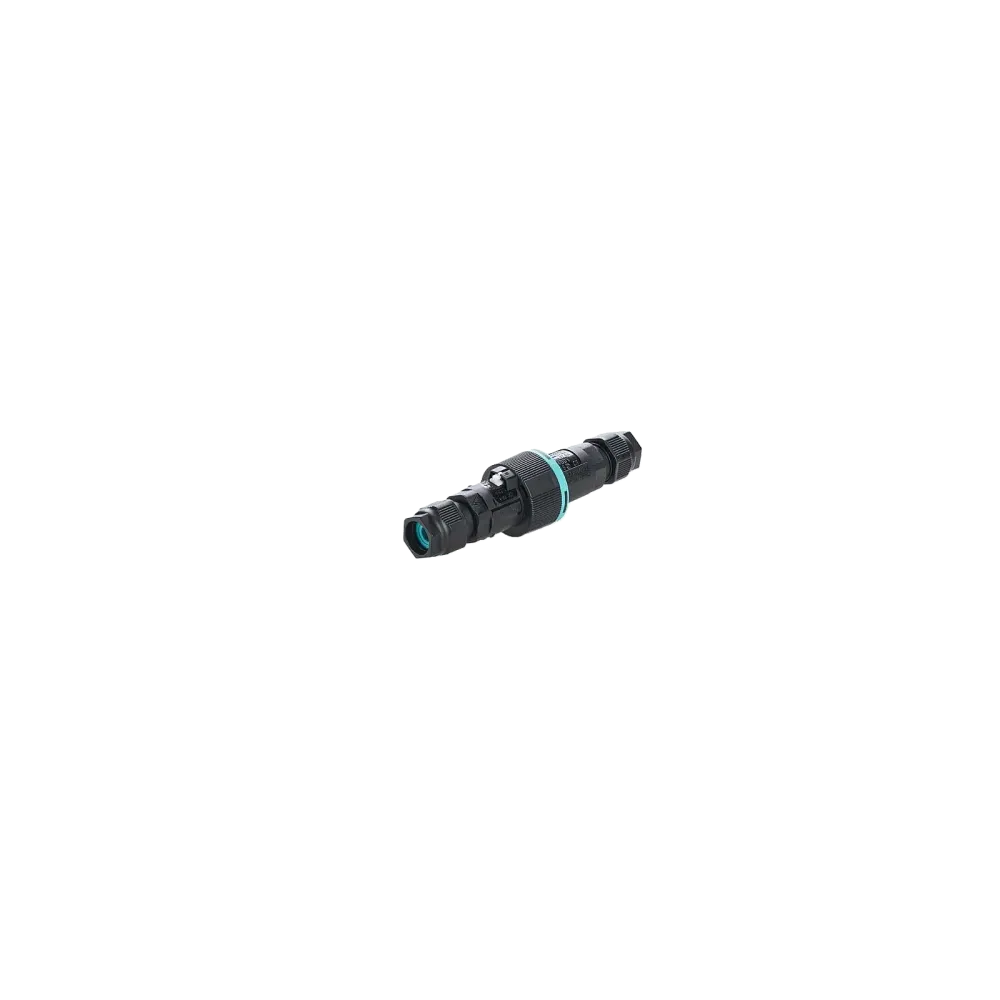

Dimensions: Ø 38.0 x 75.7 mm / mounted with counterpart Ø 38.0 x 141.2 mm
Cable diameter: Ø 7.0 - 13.5 mm
Cable cross-section: 0.5 - 1.5 mm2
Rated voltage: 500V AC
Rated current: 17.5 A
Temperature range: -40°C..+125°C
Manufacturer: Techno
Subject to errors and technical changes
Product specifications
| Connection | Screw terminal |
| IP protection | IP69 - IP66 - IP68 |
| Number of poles | 5 |
| Temperature range | -40°C to 125°C |
| Connection cross-section (mm²) | 0.5 - 1.5 mm² |
| Product | Cable socket |
| Nominal voltage (V) | 500 V |
| Certificates | IEC, UL |
| Nominal current | 17.5 A |
| Manufacturer | Techno |
| Cable diameter | 7-13.5 mm |
