About the product

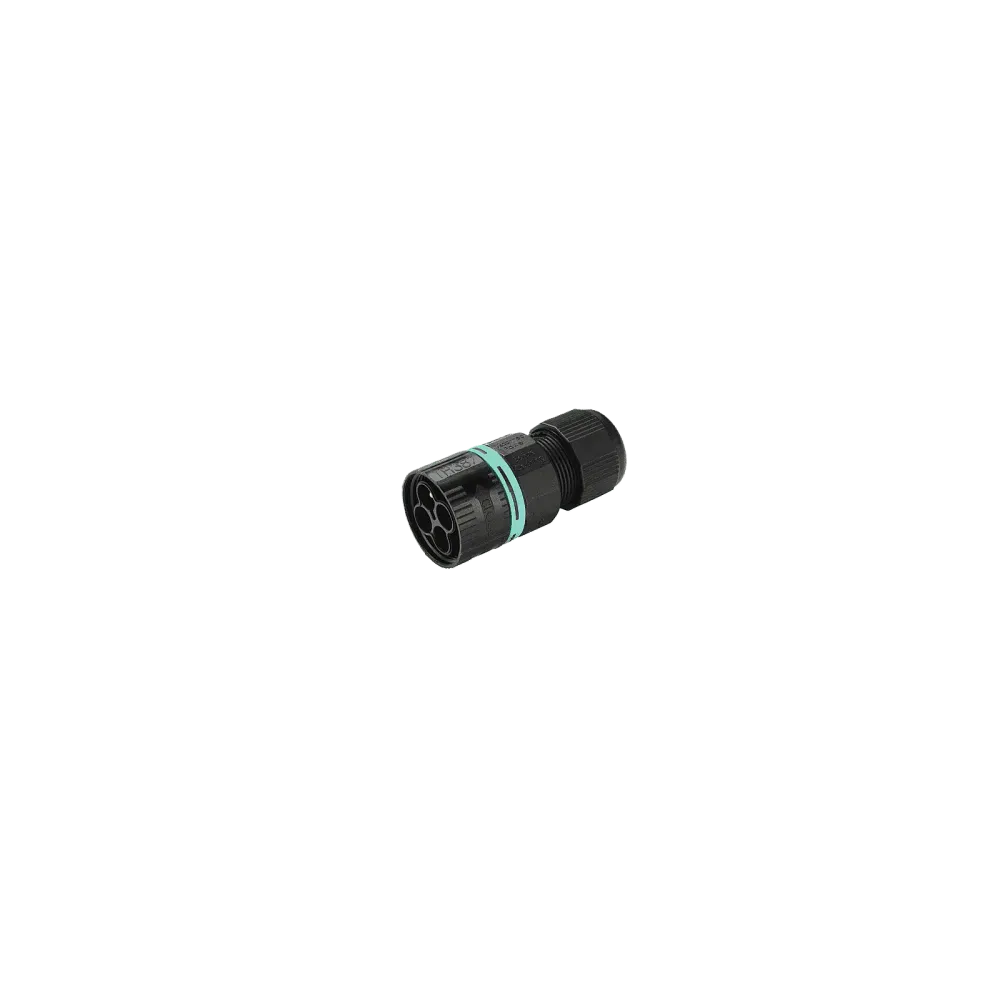

4-pin mini circular connector THP387 with screw lock from Techno, Italy
Version: Plug
Connection: Piercing*
Locking: Screw
Counterpart: THP.387.B4A
*Piercing is the ideal solution for PVC, neoprene & FEP cables
Other Techno products and designs on request.
Technical data
Number of poles: 4
Protection class: IP66/IP68
Dimensions: Ø 23.0 x 50.0 mm
Cable diameter: Ø 7.0 - 12.0 mm
Cable cross-section: 0.5 - 1.5 mm2
Rated voltage: 500V AC
Rated current: 17.5 A
Temperature range: -40°C..+125°C
Manufacturer: Techno
Subject to errors and technical changes
Product specifications
| Connection | Screw terminal |
| Temperature range | -40°C to 125°C |
| IP protection | IP66 - IP68 |
| Connection cross-section (mm²) | 0.5 - 1.5 mm² |
| Cable diameter | 7-12 mm |
| Number of poles | 4 |
| Nominal voltage (V) | 500 V |
| Certificates | IEC |
| Nominal current | 17.5 A |
| Manufacturer | Techno |
| Product | Cable plug |
