Item ID: 43741

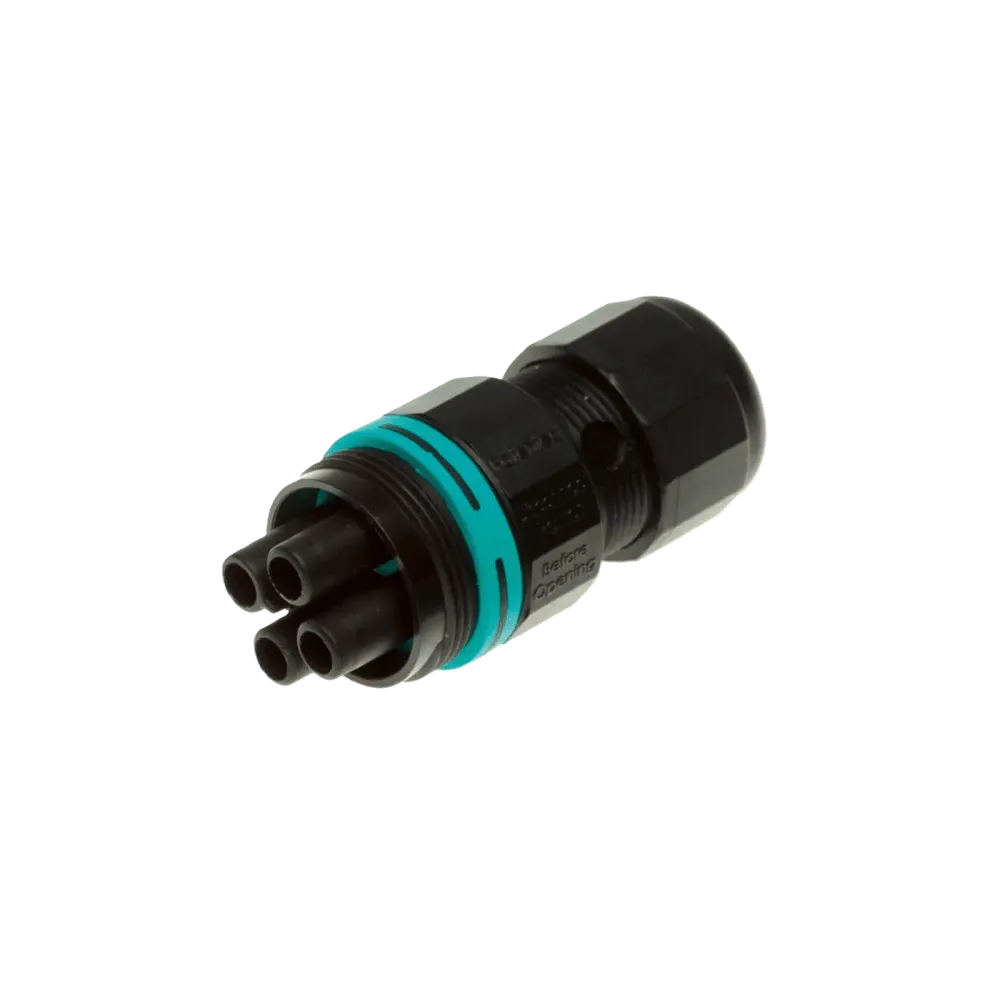

Mini circular connector THP387, socket, 4P, piercing, IP66/IP68

Delivery at your place between May 21 and Jun 25 2025

About the product

4-pin mini circular connector THP387 with screw lock from Techno

Version: Socket
Connection: Piercing*
Locking: Screw

Counterpart: THP.387.A4A

*Piercing is the ideal solution for PVC, neoprene & FEP cables

Other Techno products and designs on request.

Technical data

Number of poles: 4
Protection class: IP66/IP68
Dimensions: Ø 23.0 x 50.0 mm
Cable diameter: Ø 7.0 - 12.0 mm
Cable cross-section: 0.5 - 1.5 mm2
Rated voltage: 500V AC
Rated current: 17.5 A
Temperature range: -40°C..+125°C
Manufacturer: Techno

Subject to errors and technical changes

Product specifications

Connection Screw terminal
IP protection IP66 - IP68
Connection cross-section (mm²) 0.5 - 1.5 mm²
Cable diameter 7-12 mm
Number of poles 4
Product Cable socket
Certificates CE
Nominal voltage (V) 500 V
Nominal current 17.5 A
Manufacturer Techno
Temperature range -40°C to 125°C
