Item ID: 43739

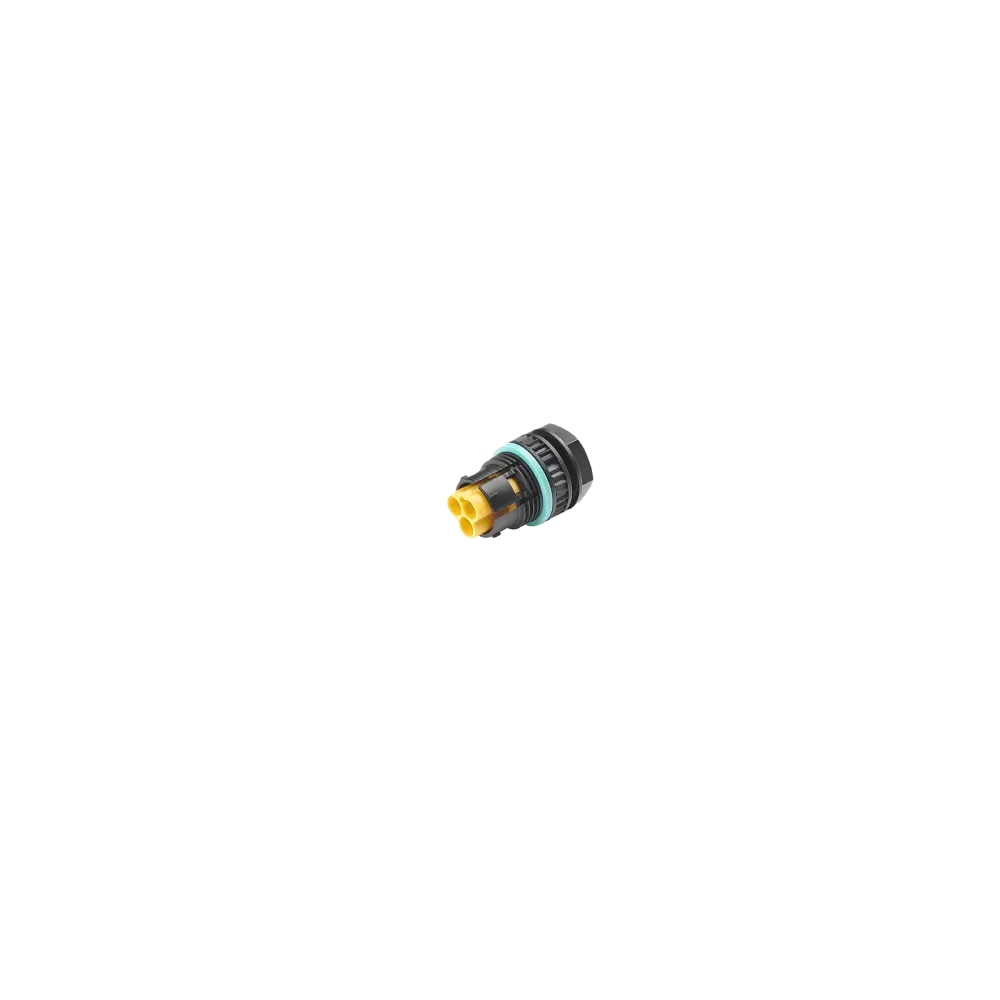

Mini circular device connector M20, 2p, plug, screw connection, 0.5-2.5mm2, IP68
About the product
2-pin M20 mini round device plug TH385 with screw lock from Techno, Italy
Version: Device plug
Connection: Screw
Locking: Screw
Counterpart: THB.384.B2A
Other Techno products and designs on request.
Technical data
Number of poles: 2
Protection class: IP68
Thread: M20
Dimensions: Ø 27.0 x 75.0 mm
For max. panel thickness: 4 mm
Cable cross-section: 0.5 - 2.5 mm2
Rated voltage: 400V AC
Rated current: 16 A
Temperature range: -40°C..+125°C
Manufacturer: Techno
Subject to technical changes
Product specifications
| Connection | Screw terminal |
| Number of poles | 2 |
| Connection cross-section (mm²) | 0.5 - 2.5 mm² |
| Product | Cable plug |
| Temperature range | -40°C to 125°C |
| Certificates | CE |
| Nominal voltage (V) | 400 V |
| Nominal current | 16 A |
| Manufacturer | Techno |
| IP protection | IP68 |
