Mini circular connector, 2p, socket, screw connection, 0.5-2.5mm2, D7.0-12.0mm, IP66/IP68

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

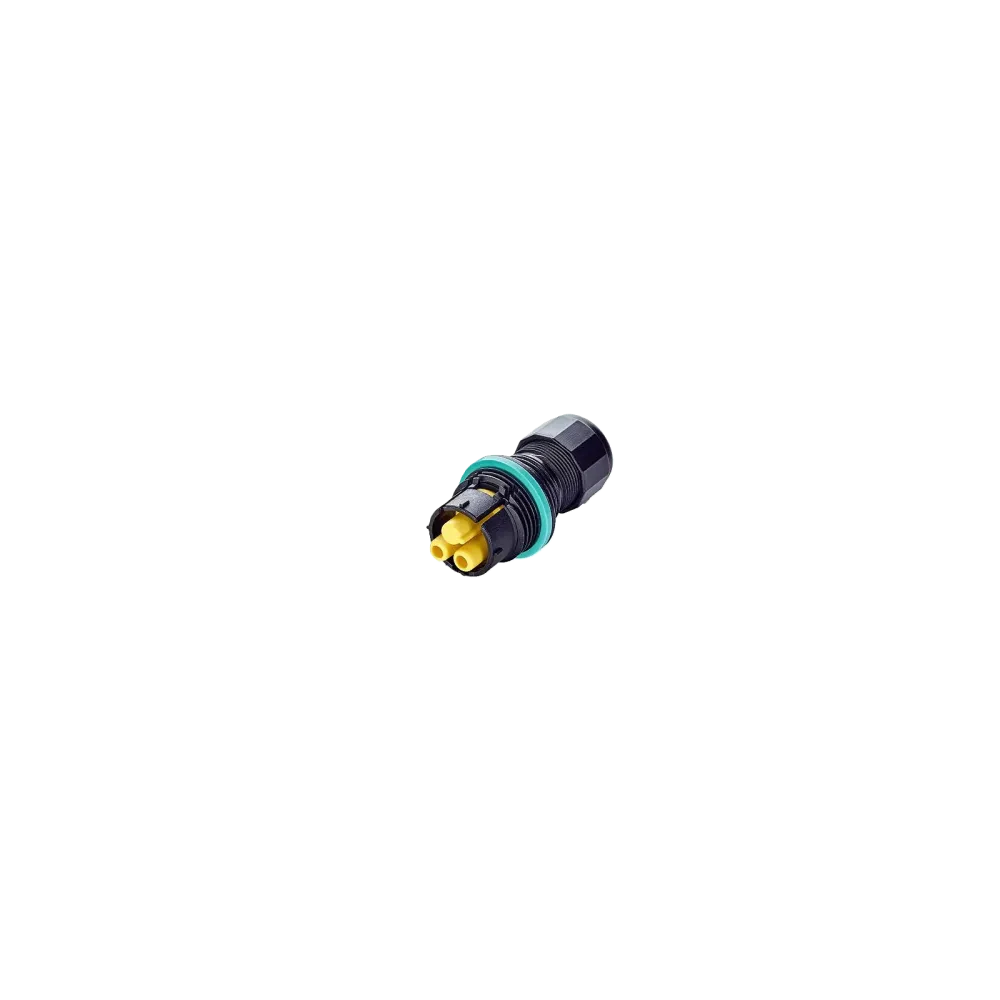

2-pin mini round socket THB 384 with screw cap from Techno, Italy

Version: Socket
Connection: Screw
Locking: Screw

Counterpart: THB.384.P2A

Other Techno products and designs on request.

Technical data

Number of poles: 2
Protection class: IP66/IP68
Cable diameter: Ø 7.0 - 12.0 mm
Dimensions:
. Plug size: Ø 26.5 x 55.0 mm
. with counterpart plugged in: Ø 27.0 x 95.0 mm
Cable cross-section: 0.5 - 2.5 mm2
Rated voltage: 400 V AC
Rated current: 16 A
Temperature range: -40°C..+125°C
Manufacturer: Techno

Product specifications

Connection	Screw terminal
Connection cross-section (mm²)	0.5 - 2.5 mm²
Temperature range	-40°C to 125°C
IP protection	IP66 - IP68
Cable diameter	7-12 mm
Product	Cable socket
Nominal voltage (V)	400 V
Nominal current	16 A
Certificates	IEC
Manufacturer	Techno
Number of poles	2
