Item ID: 43736
Mini circular device connector M20, 5p, plug, screw connection, 0.25-1.5mm2, IP66/IP68
About the product

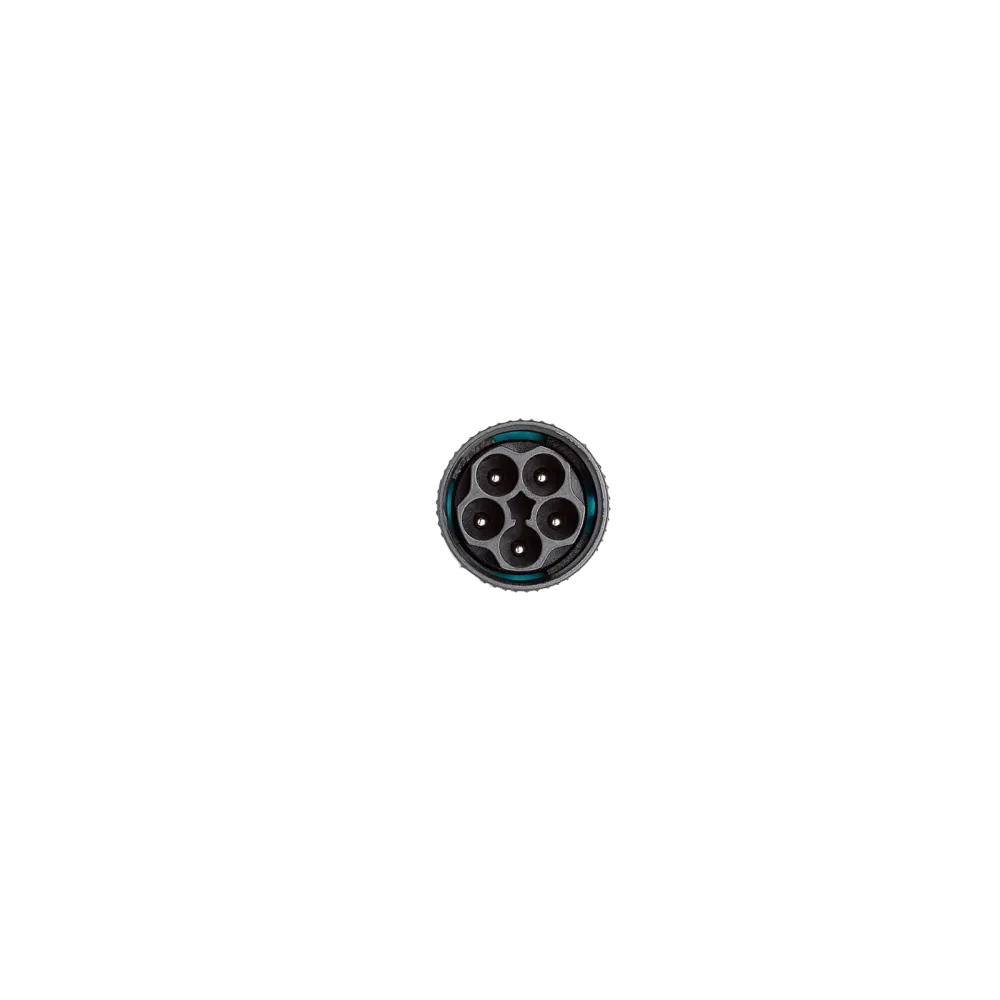

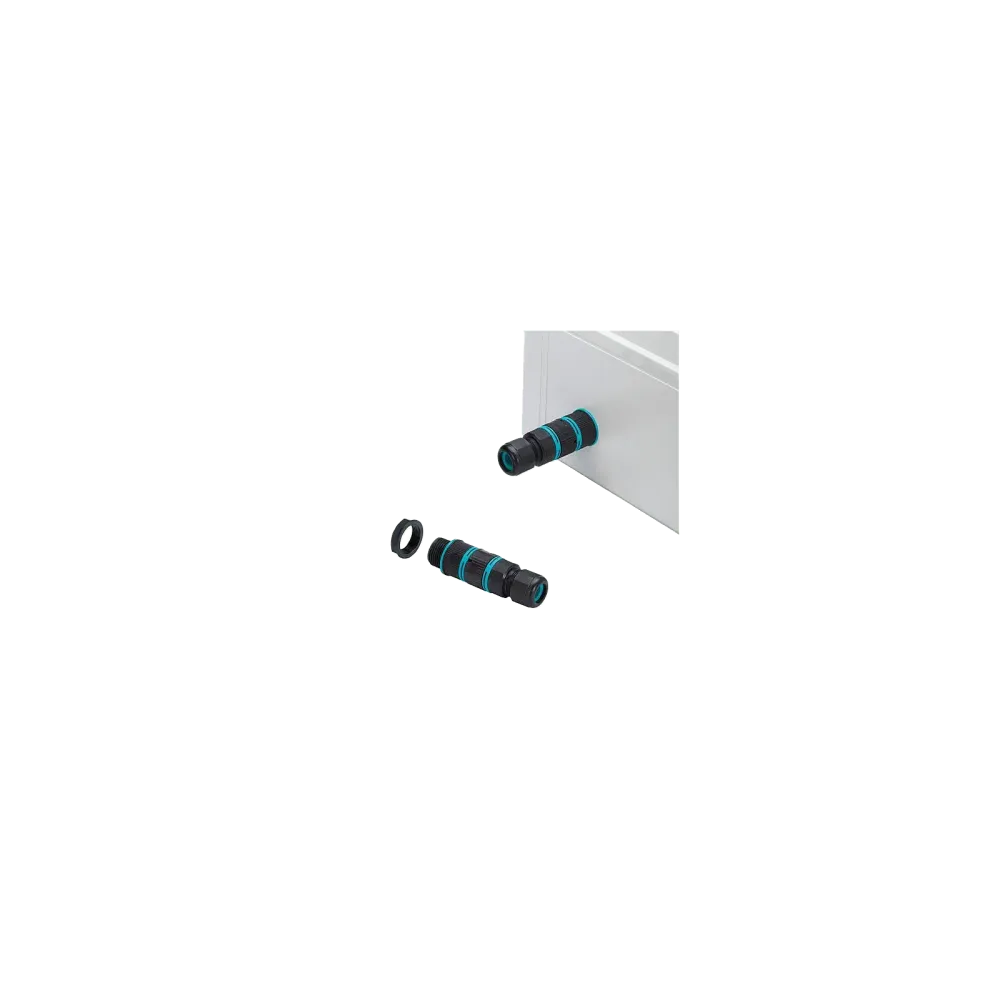

5-pin M20 mini round device plug TH387 with screw lock from Techno, Italy
Version: Device plug, wire protection
. Connection: Screw
. Locking: Screw

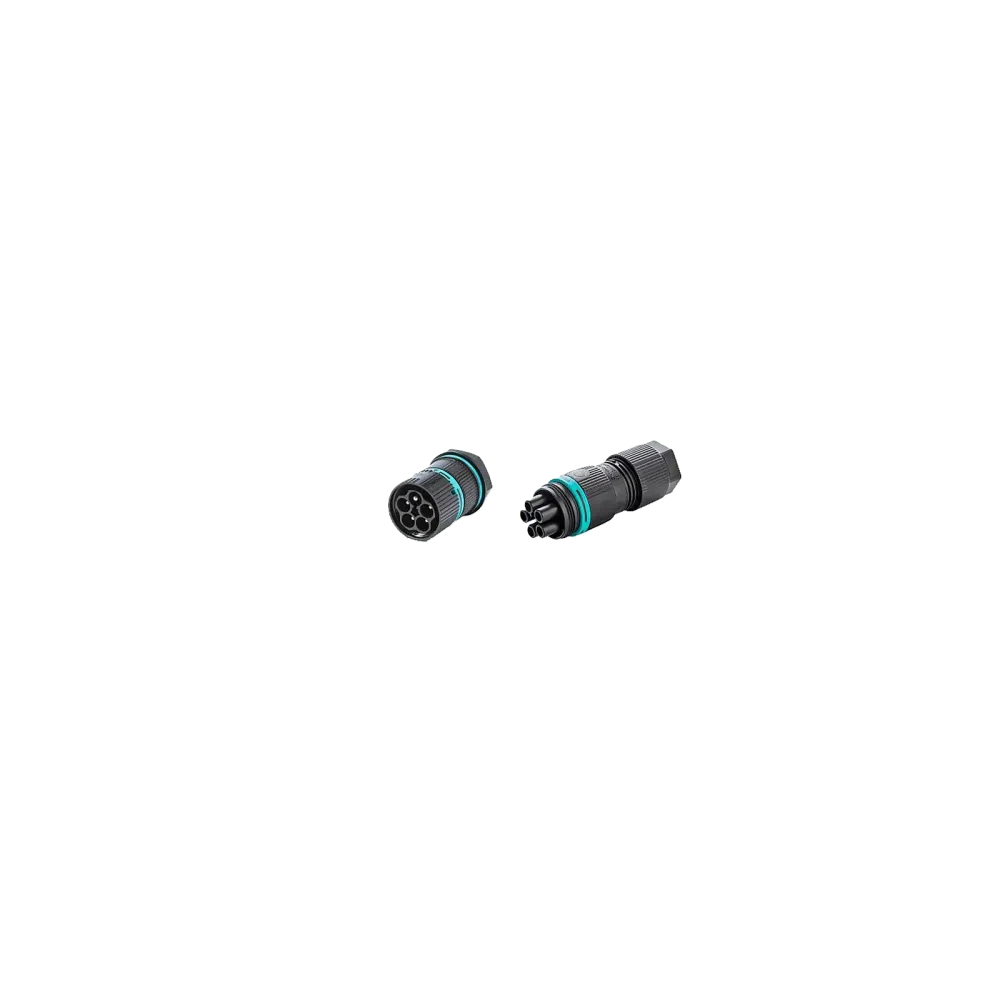

Counterpart: THB.387.B5A / THB.387.B5A.L
Other Techno products and designs on request.
Technical data
Number of poles: 5
Protection class: IP66/IP68
Thread: M20
Dimensions: Ø 23.0 x 31.75
For max. panel thickness: 9 mm
Cable cross-section: 0.25 - 1.5 mm2
Rated voltage: 500V AC
Rated current: 17.5 A AC/DC
Temperature range: -40°C..+125°C
Manufacturer: Techno
Subject to technical changes
Product specifications
| Connection | Screw terminal |
| Connection cross-section (mm²) | 0.25 - 1.5 mm² |
| Number of poles | 5 |
| Product | Cable plug |
| Temperature range | -40°C to 125°C |
| IP protection | IP66 - IP68 |
| Nominal voltage (V) | 500 V |
| Nominal current | 17.5 A |
| Manufacturer | Techno |
| Certificates | CSA, UL, CE |
