Item ID: 43728
Set of mini circular connectors, 5p, male & female, screw connection, wire protection, D6-13.5mm, IP66/IP68
About the product

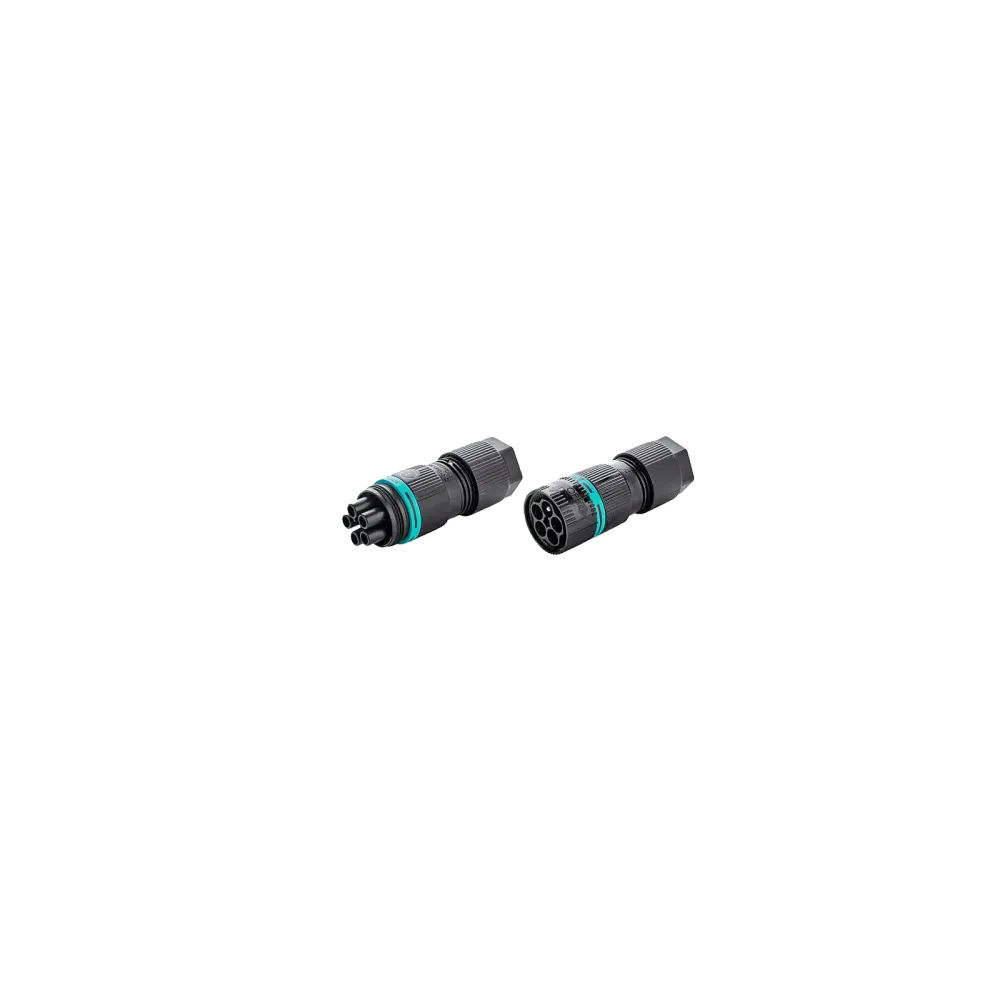

5-pin mini circular connector set TH387 with screw lock from Techno, Italy
Version: Plug, long, wire protection
. Connection: Screw
. Locking: Screw
. Single packaging in plastic bag
Other Techno products and designs on request.
Technical data
- Number of poles: 5
- Protection class: IP66/IP68
- Cable outer diameter: Ø 6.0 - 13.5 mm
- Cable cross-section: 0.25 - 1.5mm², wire protection
- Rated voltage: 500V / Approval: IEC / 600V / Approval: UL
- Rated current: 17.5 A /
- Temperature range: -40°C..+125°C
- Manufacturer: Techno
Subject to errors and technical changes
Product specifications
| Connection | Screw terminal |
| Connection cross-section (mm²) | 0.25 - 1.5 mm² |
| Number of poles | 5 |
| Temperature range | -40°C to 125°C |
| IP protection | IP66 - IP68 |
| Cable diameter | 7-12 mm |
| Nominal voltage (V) | 500 V |
| Certificates | IEC, UL |
| Nominal current | 17.5 A |
| Manufacturer | Techno |
| Product | Cable to cable connector |
