Item ID: 43726

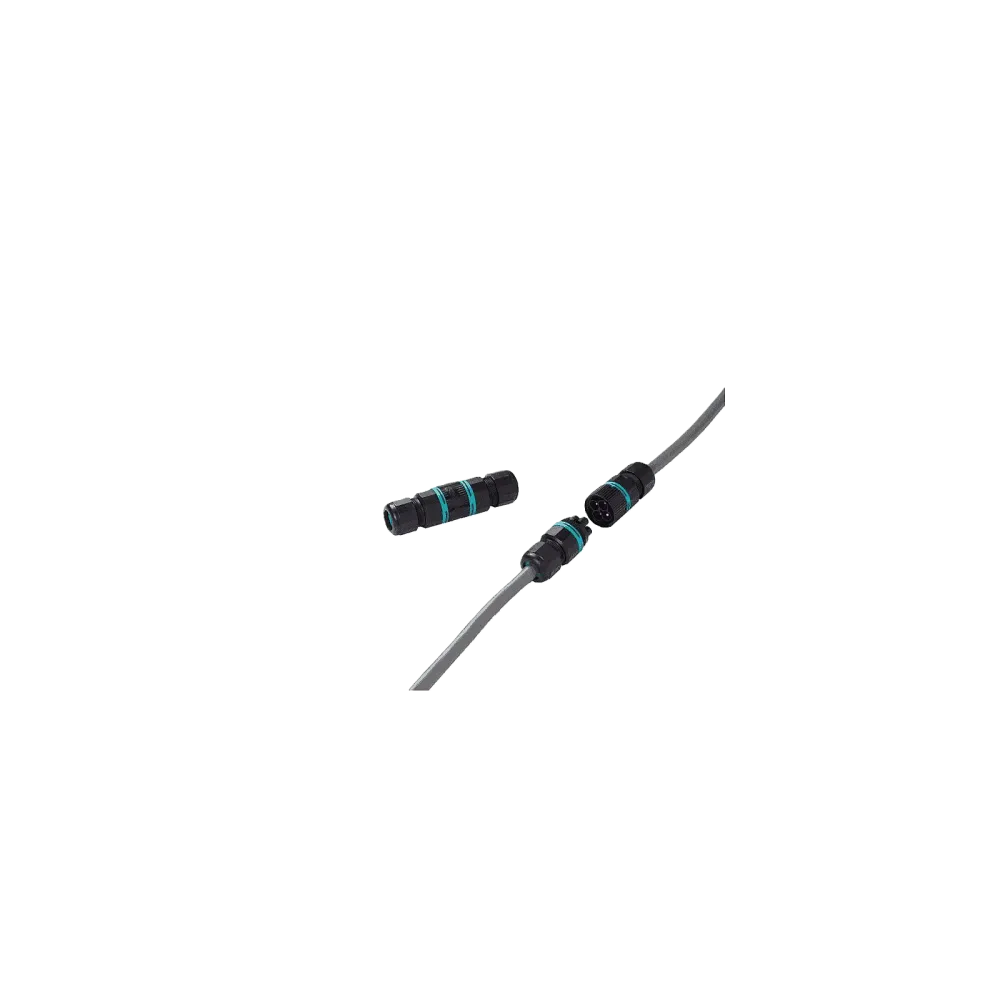

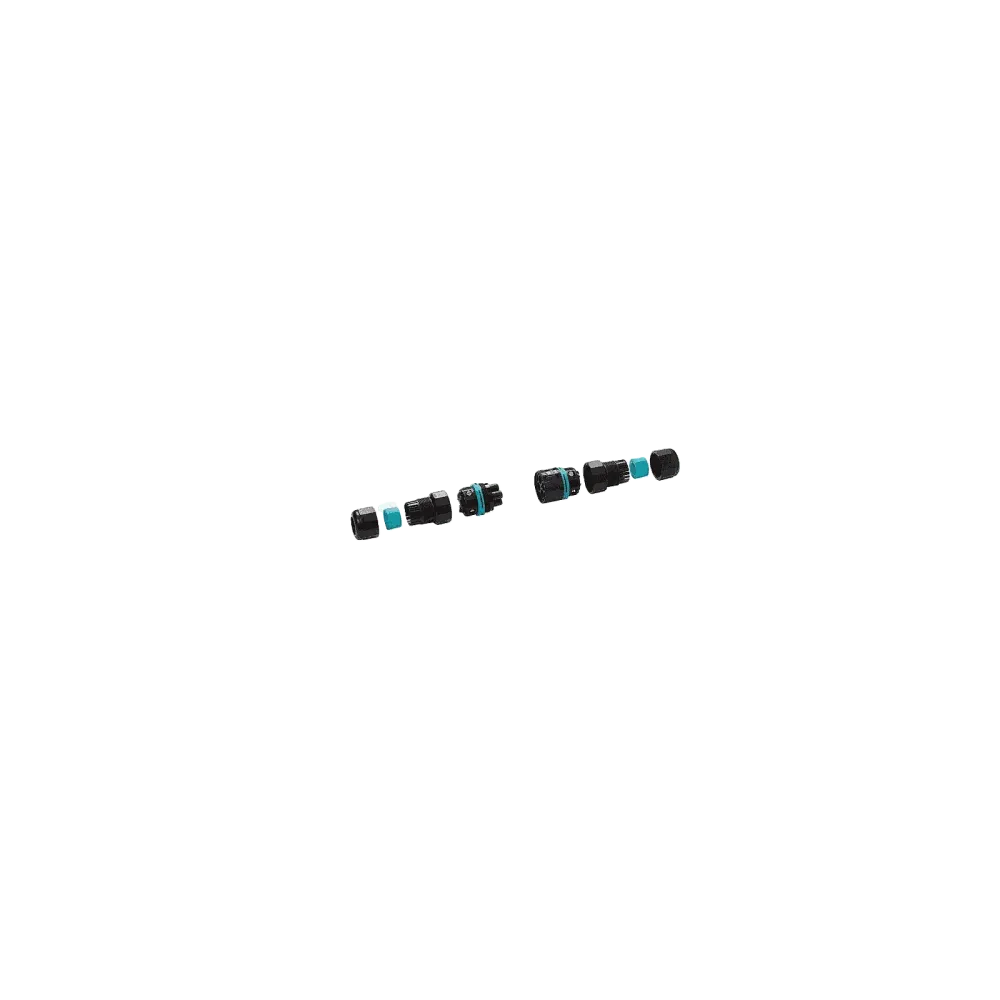

Set of mini circular connectors, 4p, male & female, screw connection, wire protection, D6-12mm, IP66/IP68
About the product
4-pin mini circular connector set TH387 with screw lock from Techno, Italy
Version: Plug, wire protection
. Connection: Screw
. Locking: Screw
. Single packaging in plastic bag
Other Techno products and designs on request.
Technical data
- Number of poles: 4
- Protection class: IP66/IP68
- Cable outer diameter: 6 - 12mm
- Dimensions plugged in: 23 x 85mm
- Cable cross-section: 0.5-1.5mm², wire protection
- Rated voltage: 500V / Approval: IEC / 600V / Approval: UL
- Rated current: 17.5 A /
- Temperature range: -40°C..+125°C
- Manufacturer: Techno
Subject to errors and technical changes
Product specifications
| Connection | Screw terminal |
| Temperature range | -40°C to 125°C |
| IP protection | IP66 - IP68 |
| Connection cross-section (mm²) | 0.5 - 1.5 mm² |
| Cable diameter | 7-12 mm |
| Number of poles | 4 |
| Nominal voltage (V) | 500 V |
| Certificates | IEC, UL |
| Nominal current | 17.5 A |
| Manufacturer | Techno |
| Product | Cable to cable connector |
