Item ID: 43723
Circular device connector M25, 4p, socket, screw connection, 0.5-1.5mm2, IP66/IP68
About the product

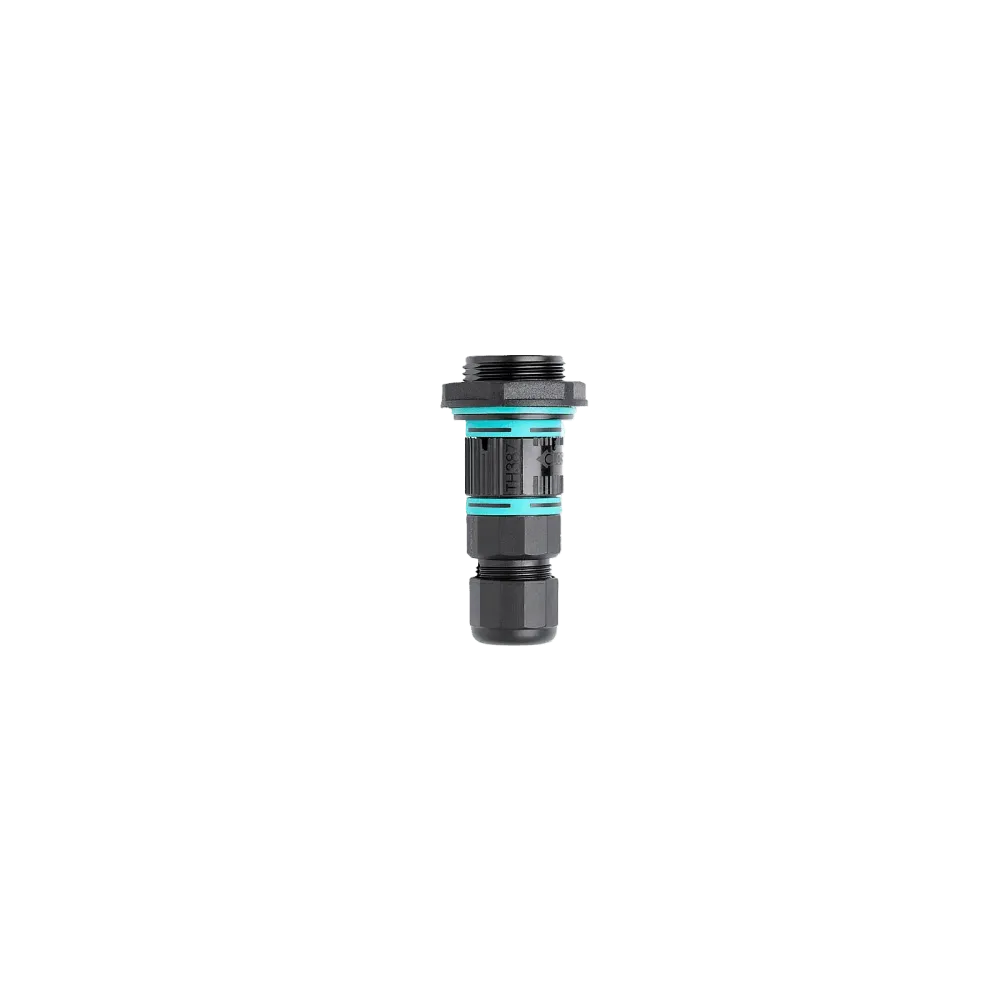

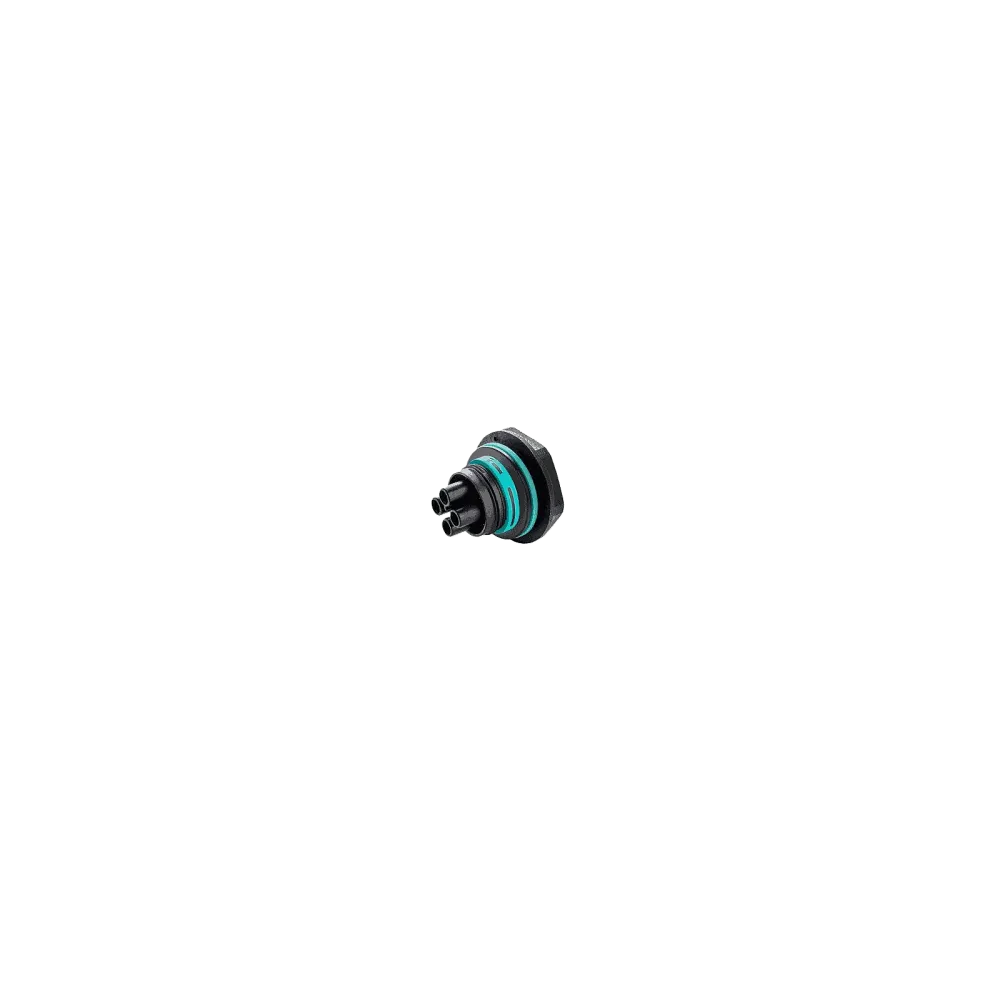

4-pin M25 round socket TH387 with screw lock from Techno
Version: Device socket, wire protection
. Connection: Screw
. Locking: Screw
Also available as a set with circular connector THB.387.EF4A
Other Techno products and designs on request.
Technical data
Number of poles: 4
Protection class: IP66/IP68
Thread: M25
For max. panel thickness: 7 mm
Cable cross-section: 0.5 - 1.5 mm2
Rated voltage: 500V AC
Rated current: 17.5 A AC/DC
Temperature range: -40°C..+125°C
Manufacturer: Techno
Subject to technical changes
Product specifications
| Connection | Screw terminal |
| Temperature range | -40°C to 125°C |
| IP protection | IP66 - IP68 |
| Cable diameter | 7-12 mm |
| Number of poles | 4 |
| Product | Cable socket |
| Nominal voltage (V) | 400 V |
| Nominal current | 16 A |
| Certificates | IEC, UL |
| Manufacturer | Techno |
| Connection cross-section (mm²) | 0.5 - 2.5 mm² |
