Item ID: 43715

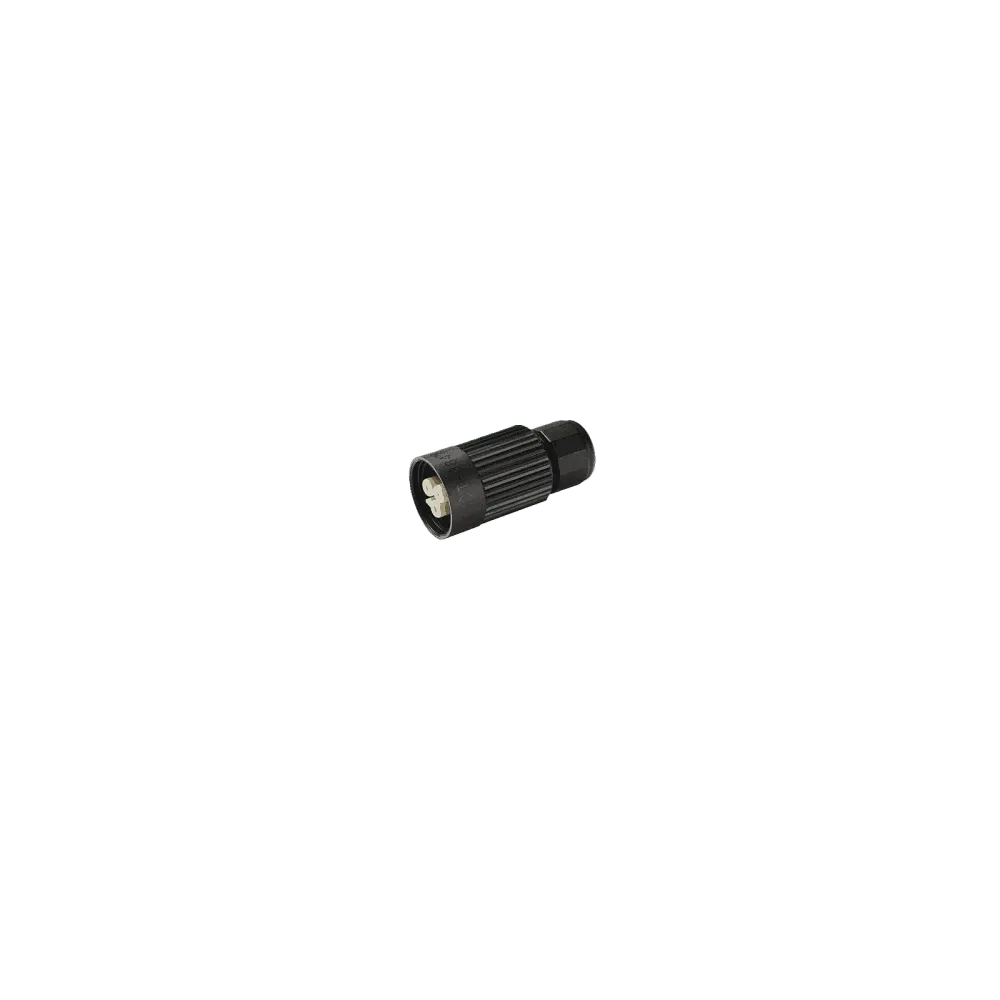

Round plug, 3p, socket, screw connection, 0.5-2.5mm2, D7.0-12.0mm, IP66/IP68
About the product
TH384 circular connector with screw locking from Techno, Italy
Version: Socket
. Connection: Screw
. Locking: Screw
Other Techno products and designs on request.
Technical data
Number of poles: 3
Protection class: IP66/IP68
Cable diameter: Ø 7.0 - 12.0 mm
Dimensions:
. Plug size: Ø 27.0 x 63.0 mm

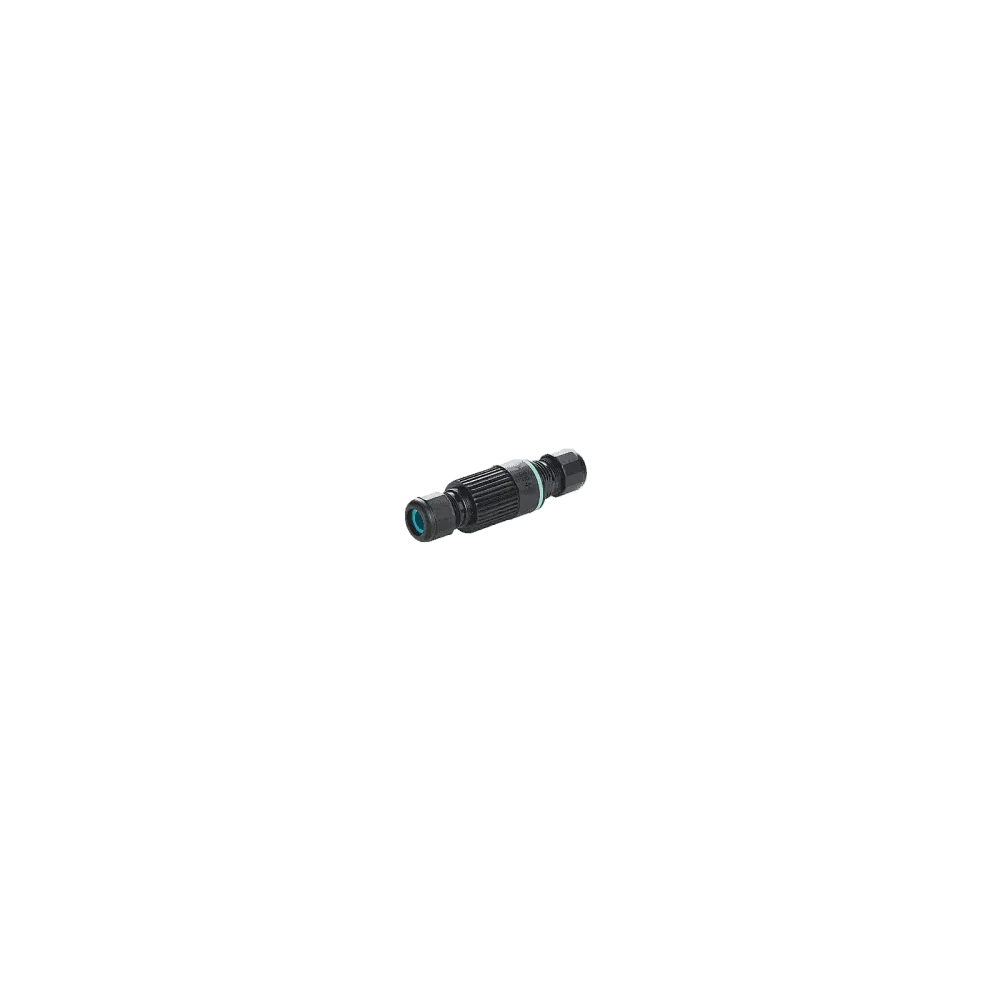

. with counterpart plugged in: Ø 27.0 x 95.0 mm
Cable cross-section: 0.5 - 2.5 mm2
Rated voltage: 400V AC
Rated current: 16A AC/DC
Temperature range: -40°C..+125°C
Manufacturer: Techno
Subject to errors and technical changes
Product specifications
| Connection | Screw terminal |
| Number of poles | 3 |
| Temperature range | -40°C to 125°C |
| IP protection | IP66 - IP68 |
| Cable diameter | 7-12 mm |
| Product | Cable socket |
| Nominal voltage (V) | 400 V |
| Nominal current | 16 A |
| Certificates | IEC, UL |
| Manufacturer | Techno |
| Connection cross-section (mm²) | 0.5 - 2.5 mm² |
