Item ID: 43707

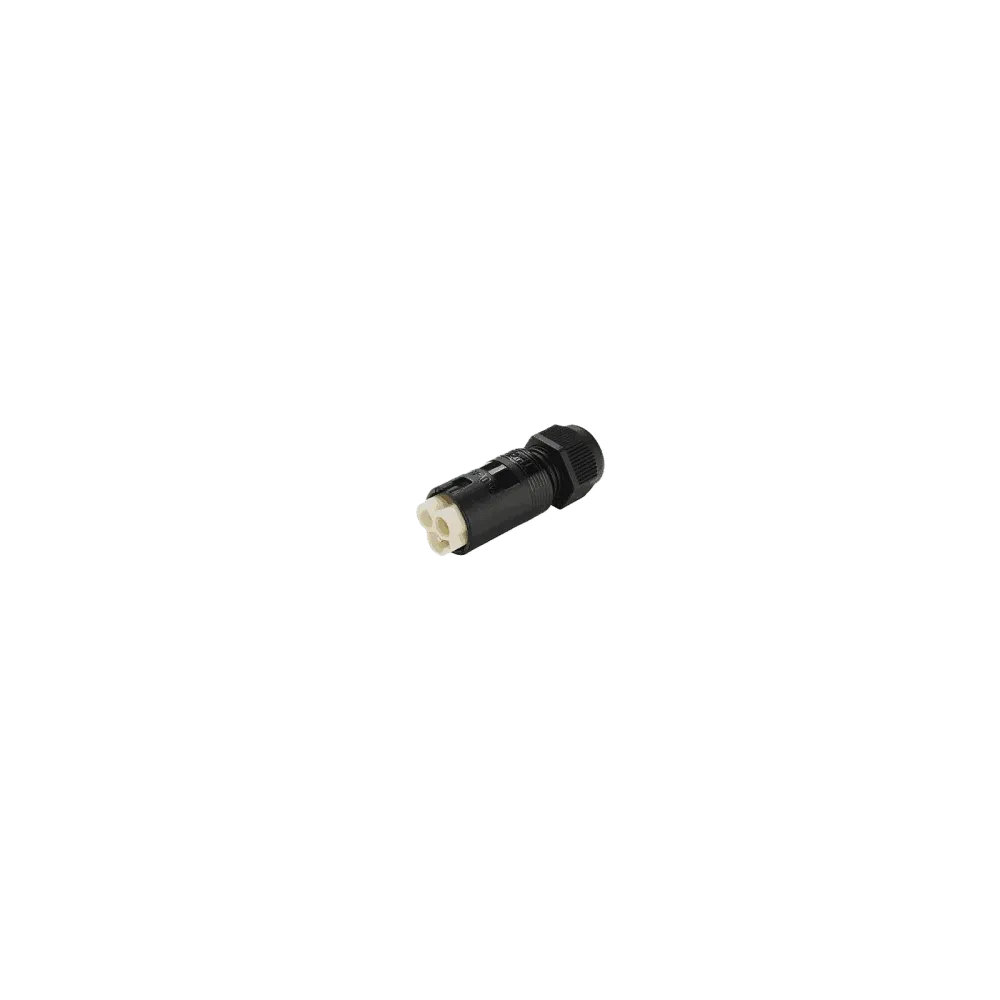

Mini round plug, 3p, plug, screw connection, 0.5-1.5mm2, D7.0-9.5mm, IP40
About the product
THB 382 mini circular connector from Techno
Version: Plug
. Connection: Screw
. Locking: Push-pull
Other Techno products and designs on request.
Technical data
- Number of poles: 3
- Protection class: IP40
- Cable diameter: Ø 7.0 - 9.5 mm
- Dimensions:
. Plug size: Ø 19.0 x 53.0 mm

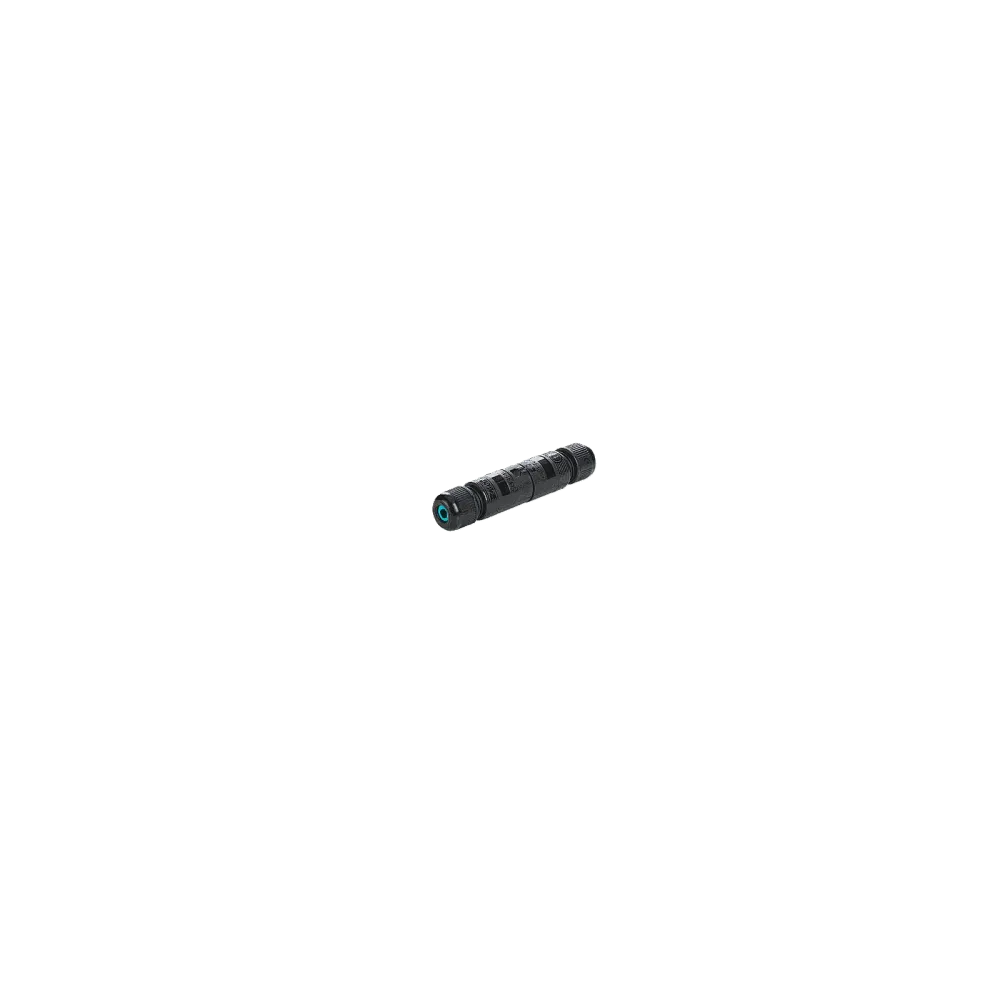

. with counterpart plugged in: Ø 19.0 x 93.0 mm - Cable cross-section: 0.5 - 1.5 mm2
- Rated voltage: 400 V AC
- Rated current: 16 A
- Temperature range: -40°C..+125°C
- Manufacturer: Techno
Product specifications
| Connection | Screw terminal |
| Cable diameter | 7-9.5 mm |
| Number of poles | 3 |
| Product | Cable plug |
| Temperature range | -40°C to 125°C |
| Connection cross-section (mm²) | 0.5 - 1.5 mm² |
| Nominal voltage (V) | 400 V |
| Nominal current | 16 A |
| Certificates | IEC |
| Manufacturer | Techno |
| IP protection | IP40 |
