Item ID: 43698

Round plug, 2p, pin+socket, screw connection, 0.25-1.5mm2, IP68 (30m/1h)

Delivery at your place between May 20 and Jun 24 2025
Add to cart

About the product

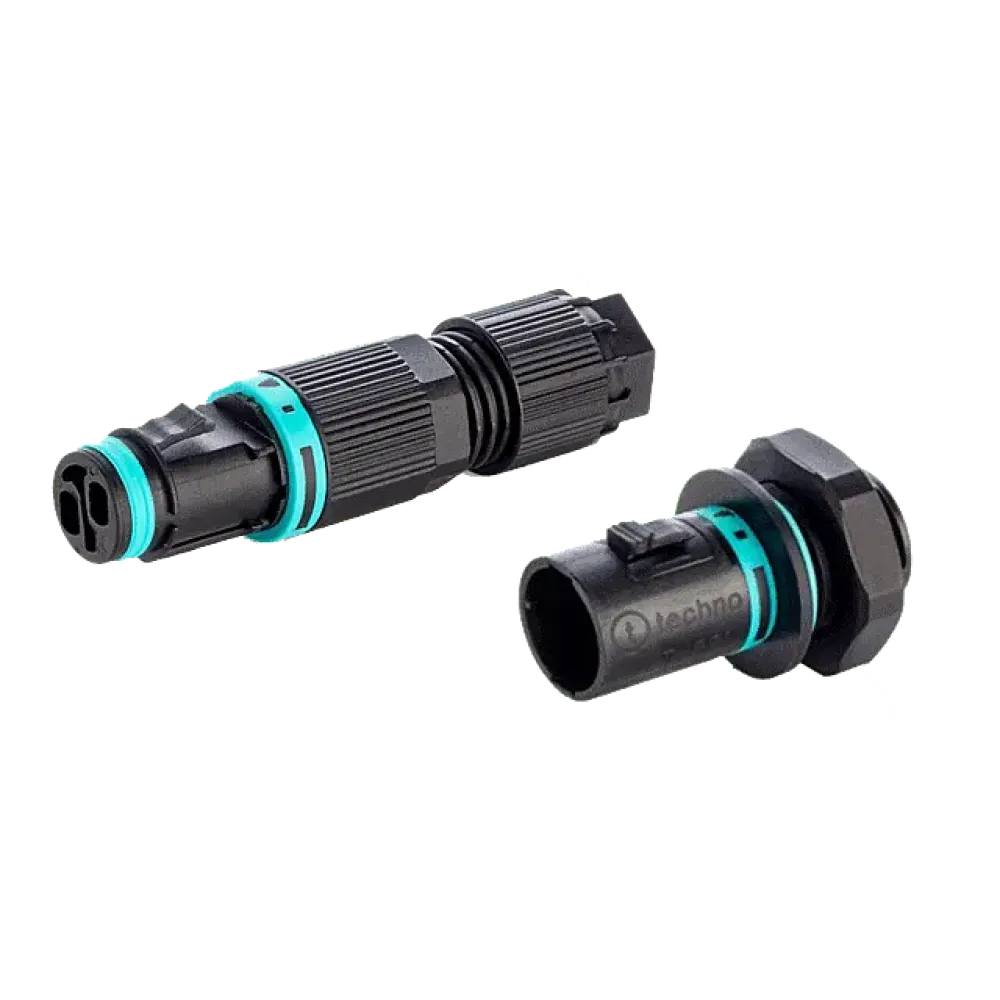

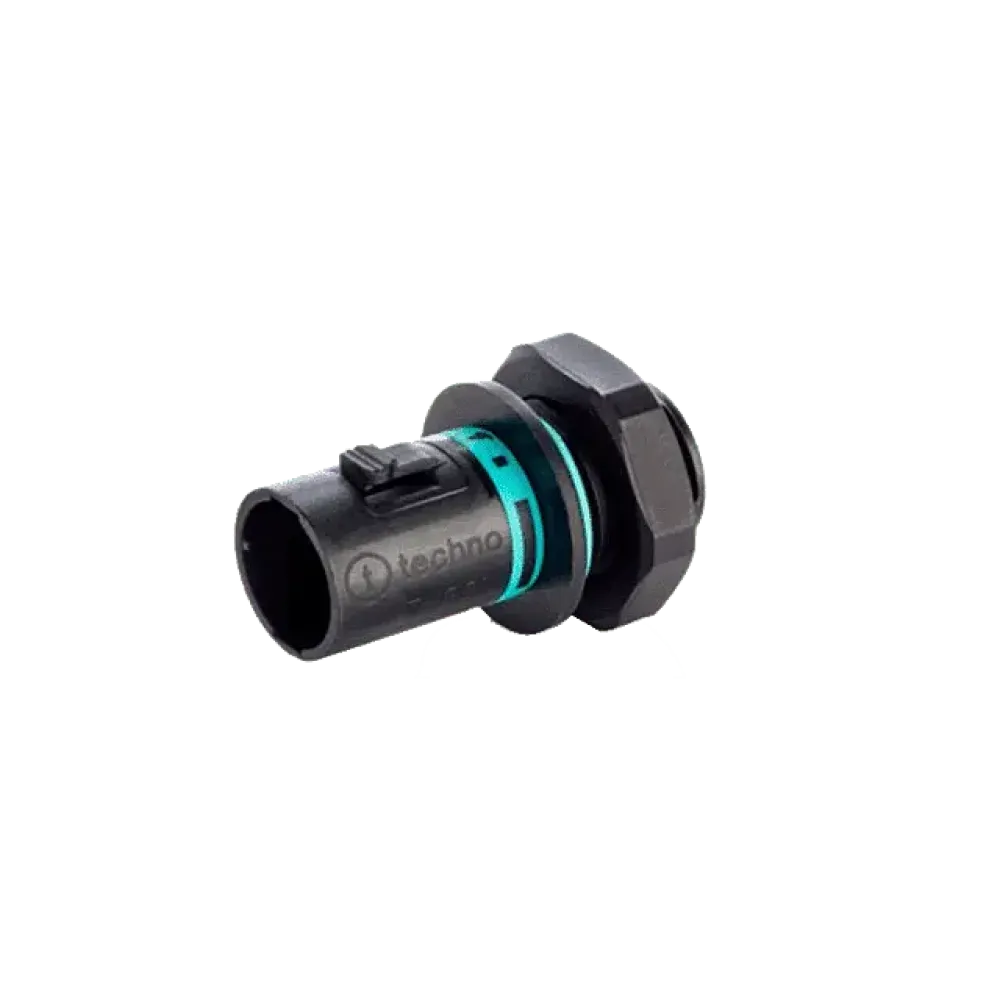

Round plug connector - screw connection - cable to device

Technical data
  • 2 pole
  • IP68 / 69K, 3bar (30m / 1h)
  • Cable diameter: 5.8 - 6.9 mm
  • Dimensions plugged in: 14 x 56mm
  • 0.25 - 1.5mm2, H05RN-F: 2 x 1.00mm2
  • 10 A / 400 V AC/DC, 250 V AC Protection class II / Approval: IEC (IMQ)
  • -40°C - +125°C
  • Manufacturer: Techno

Product specifications

Connection Screw terminal
Product Cable to device connector
Connection cross-section (mm²) 0.25 - 1.5 mm²
IP protection IP68
Number of poles 2
Temperature range -40°C to 125°C
Nominal voltage (V) 250-400 V
Nominal current 10 mA
Certificates IEC
Manufacturer Techno
Cable diameter 5.8-6.9 mm
