About the product

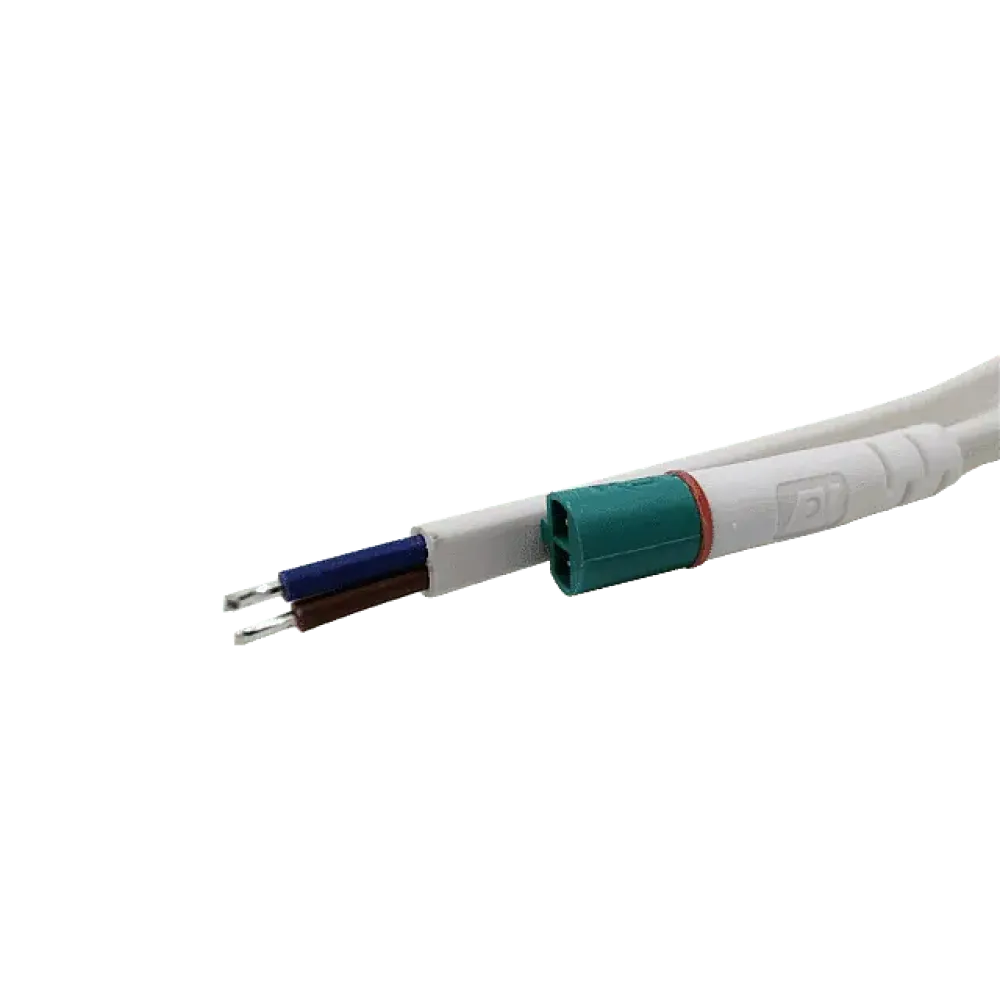

The 7.6mm IP54 LED connector system 24V is a small LOW-VOLTAGE connector for powering luminaires that meets the lighting industry's need for a compact, easy-to-install connection solution. This LED connector system is the ideal solution for connecting discrete LED lighting in showcases or shelves where space is at a premium. Compared to other connectors that require much larger openings, this mini connector fits easily into an 8 mm opening. Targeted applications include lighting cabling in offices, kitchens, bathrooms, display cabinets, mountable lighting, store and household furniture.
Technical data
- Type: Round plug
- Nominal values: 24V 6A
- Materials: Nylon66 UL94 V-0
- Approval: CE, RoHS, Reach
- Cable: VDE H03VVVH2-F 2*0.75mm² white
- Length: 1m
- Color: Green
- Dimensions: Ø7.6mm
- IP54
Product specifications
| Nominal current | 10 mA |
| Nominal voltage (V) | 24 V |
| Connection | Cables |
| Product | Cable plug |
| Number of poles | 2 |
| Connection cross-section (mm²) | 0.75 - 1.5 mm² |
| IP protection | IP54 |
