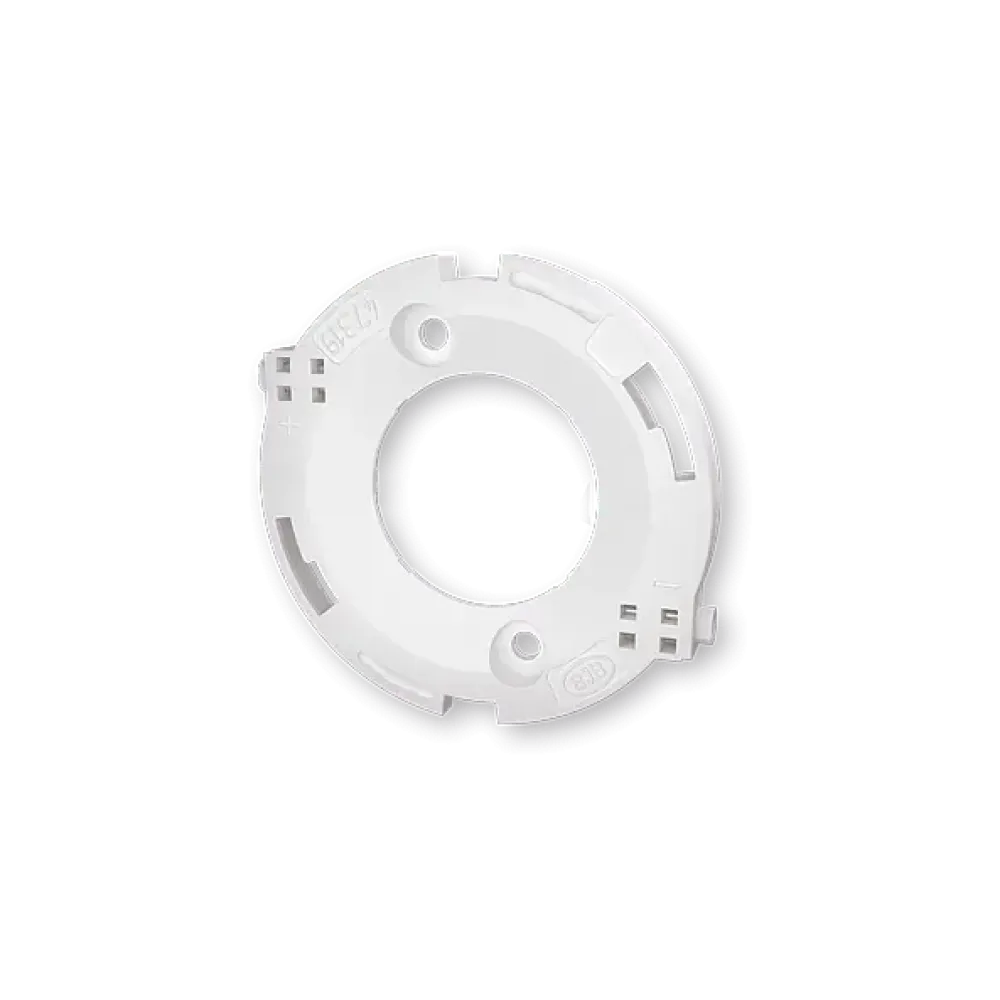

Zhaga bracket for Samsung COB LES22

• With integrated COB holder and interface for reflectors
• Easy handling thanks to pre-centering of the COB
• Screw fastening: for M3 screws with lock washer
• Max. Torque for screw fastening 0.5 Nm*
• Stripping length: 7-1 mm
• Please note the polarity of the LED
• Please refer to the LED manufacturer's specifications
• When connecting LED modules in series, the creepage and clearance distances of the individual modules must be designed for the total voltage of the series connection
  . *The maximum torque of the COB manufacturer must be observed

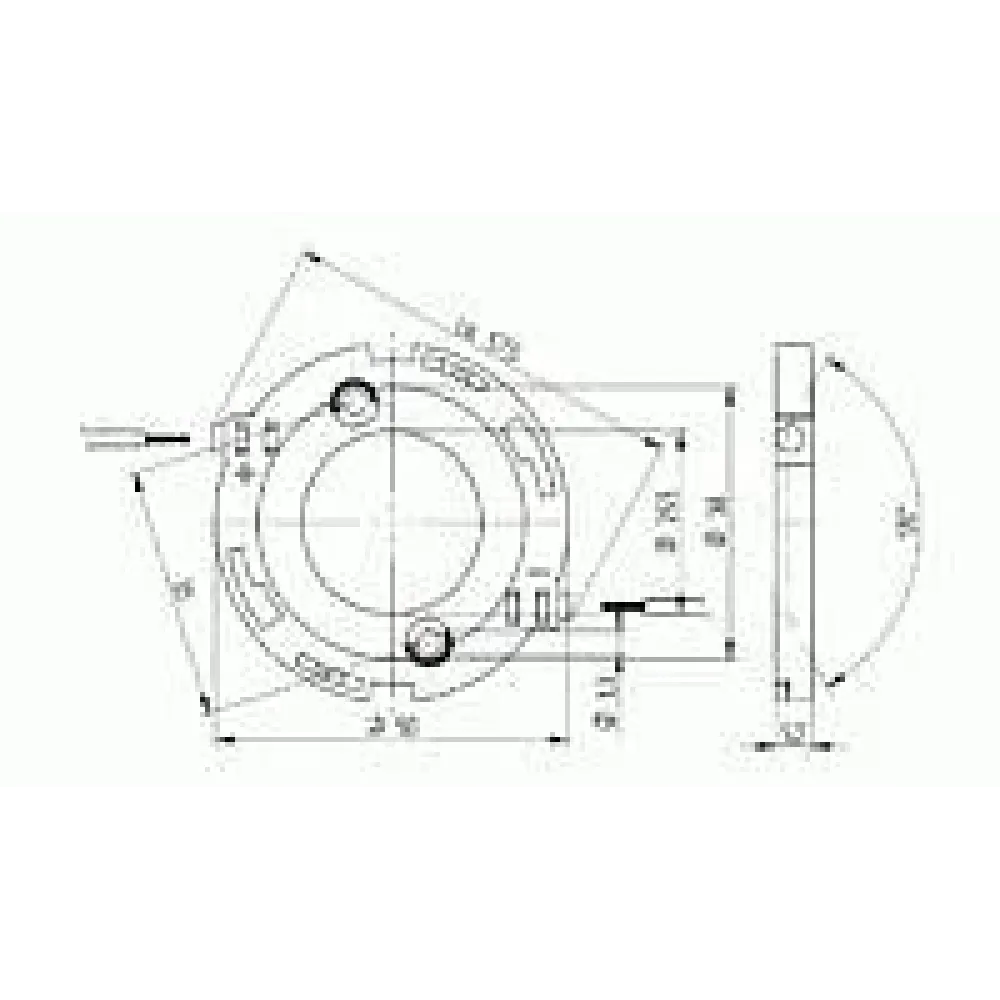

Technical data

• For COBs: 28 x 28mm
• LES: 22
• Diameter: 50mm
• Height: 5.2mm
• Material: Housing: PBT Contacts: CuSn
• Rating: 3A / 150 VDC
• Fastening type: Screw fastening for M3 screws with lock washer
• Operating temperature: max. 130°C
• Conductor cross-sections: 0.35-0.5mm²
• Suitable for Samsung:
  . LC040D /60D / 80D
