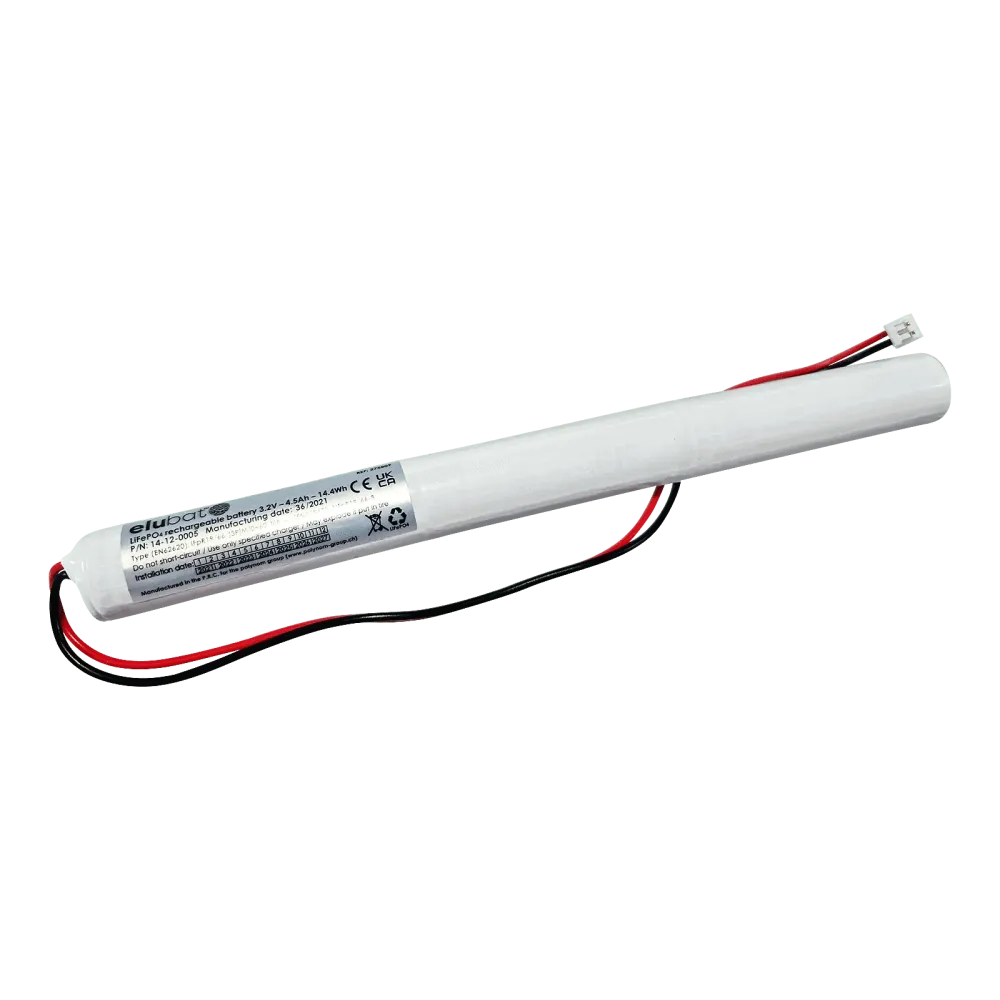

4.5Ah battery for emergency lighting unit (3h emergency operating time)

Advantages of LFP batteries

• High level of safety: Due to the cell chemistry, LFP cells are considered intrinsically safe, i.e. thermal runaway and membrane melting are prevented.
• as with other lithium-ion batteries can be ruled out.
• High mechanical safety due to the metal cylinder shape (similar to NiCd). The electrodes also contain no unbound oxygen atoms, which react violently chemically when released into the air.
• Thanks to this fact, the nail penetration test according to UL 1642 is passed.
• High cycle stability: 75 % residual capacity after 6 years at max. 55 °C (one discharge per month).
• Low self-discharge, i.e. approx. 5 % per month compared to 30 % for NiCd and 35 % for NiMH).
• Improved environmental compatibility due to the absence of heavy metals such as cobalt.
• Over 50 % less space required thanks to smaller cells compared to NiCd and NiMH.
• Lower procurement costs compared to NiMH batteries.

Technical data

• 3 Lithium iron phosphate (LiFePO4)
• High-temperature cells 5 to 55 °C, 4.5Ah, 18650 format
• in bar arrangement, 250 mm connection cable with reverse polarity protected JST-EH plug
• l = 200mm (+/-2)
• Diameter: 19mm (+/-0.5)
