About the product

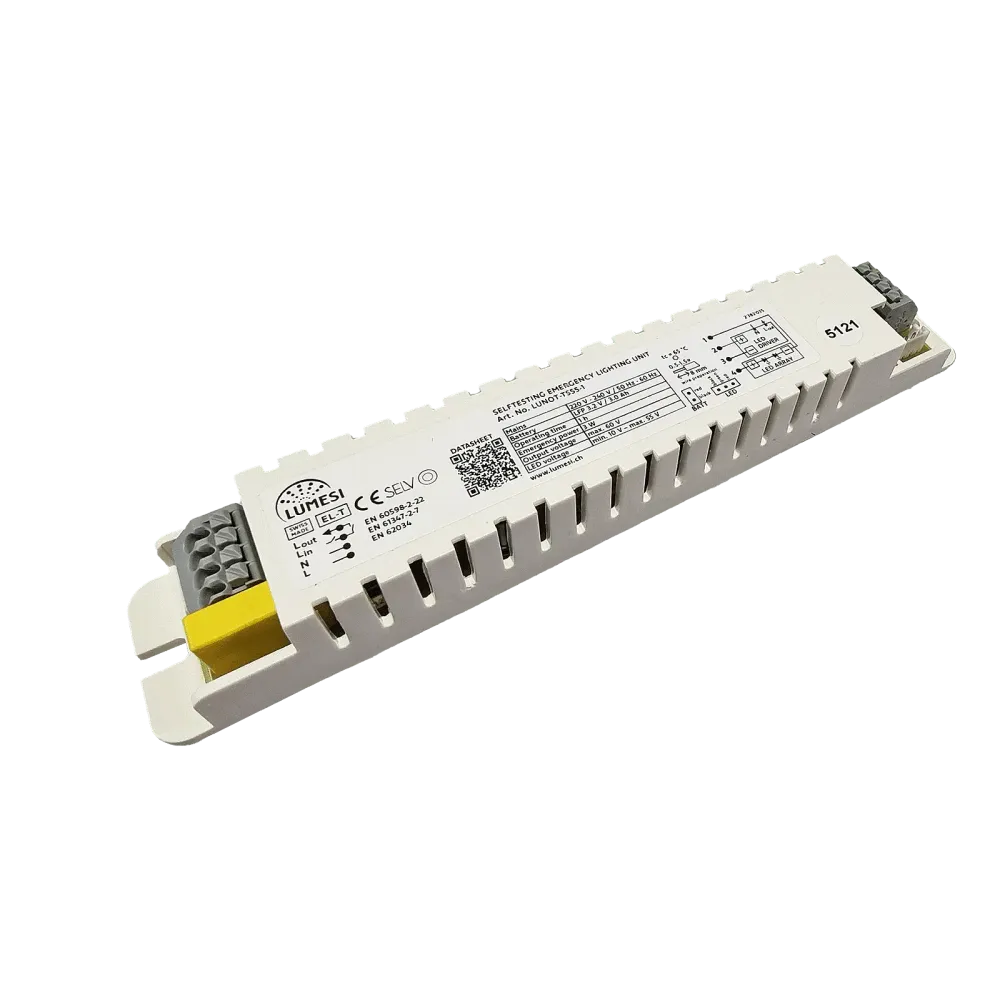

The EMCU T emergency lighting unit is used to add emergency operation and self-test functions to existing LED luminaires in accordance with the IEC 62034 standard. The space-saving polycarbonate housing fits into a large number of protection class II LED luminaires, together with the likewise very compact LFP rechargeable batteries. Battery regeneration to optimize the battery capacity is initiated automatically immediately after initial commissioning and every time the battery is changed.
Technical data
- Emergency lighting control gear for LED luminaires as a standby self-contained system
- Forward voltages between 10 and 220 V
- Emergency operating time 1 h or 3 h, others on request
- 3 W constant output power in emergency mode, others on request
- Automatic battery regeneration
- Deep discharge protection
- Self-test function according to IEC 62034
- Visual status display with two-color LED
- Compatible with all dimmable and non-dimmable LED drivers
- 3-pole technology: switching of the LED module and delayed mains connection for the LED driver
- DALI or M-Bus communication optional
- Polycarbonate housing L 177 x W 30 x H 21.5 mm
- for LED luminaires of protection class II
- 60 months warranty
Product specifications
| Manufacturer | Lumesi |
