About the product

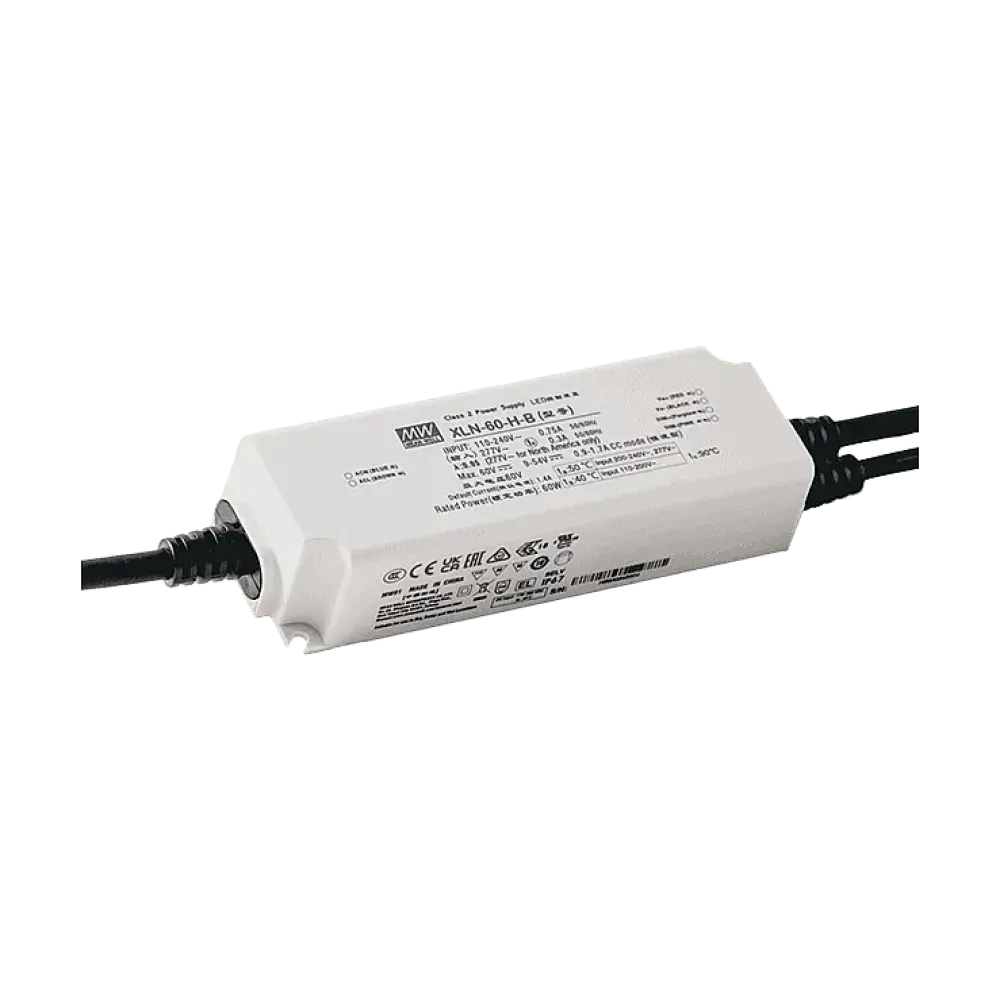

XLN-60-H-B is a flexible LED driver with constant current output for direct operation of LED lighting applications and 3in1 dimming function.
Highlights
- The output current can be programmed via the smartphone using NFC
- Wide voltage range of 9-54Vdc also enables the operation of smaller loads
- 3in1 dimming function (0-10V / 1-10V / resistor / 10V PWM control)
- Dimming is flicker-free with current control, no PWM at the output
- IP67 protected
Control
- 0/1-10V signal (10V=100% Iout, 1V=10% Iout, 0V=Off)
- Resistance (100kΩ=100% Iout, 8kΩ =8% Iout,0kΩ=Off)
- 10V PWM signal (100% Duty Cycle=100% Iout, 10% Duty Cycle=10% Iout, 0% Duty Cycle=Off)
Dimming range
The dimming range is 6% to 100% of the selected output current.
Technical data
- Fully encapsulated plastic housing with IP67 protection
- Output current programmable via NFC
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Product specifications
| Height | 32 mm |
| Additional functions | EL certified |
| Connection | Cables |
| Dimming type | Current control |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Width | 49 mm |
| Length | 141 mm |
| Current setting | NFC |
| Power | 60 W |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Application | Single color |
| Control | 0-10V, 1-10V, resistor, PWM control |
