About the product

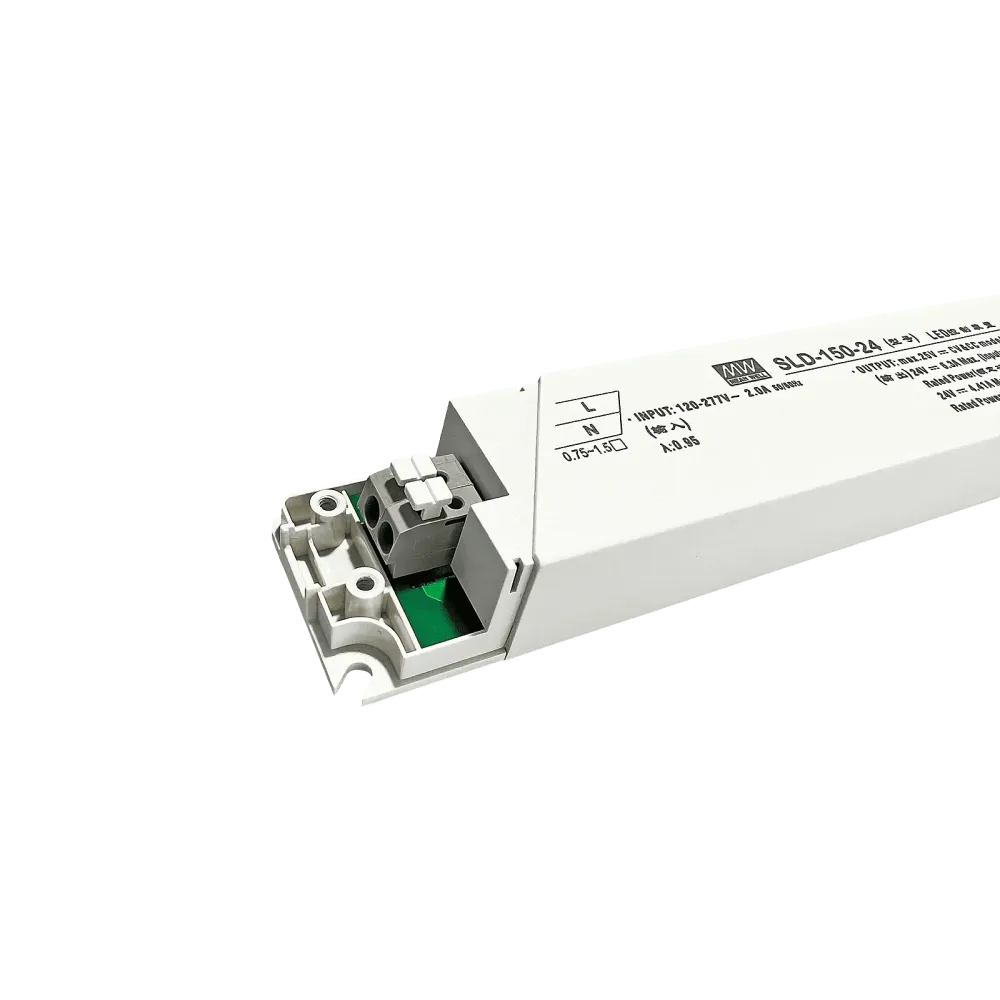

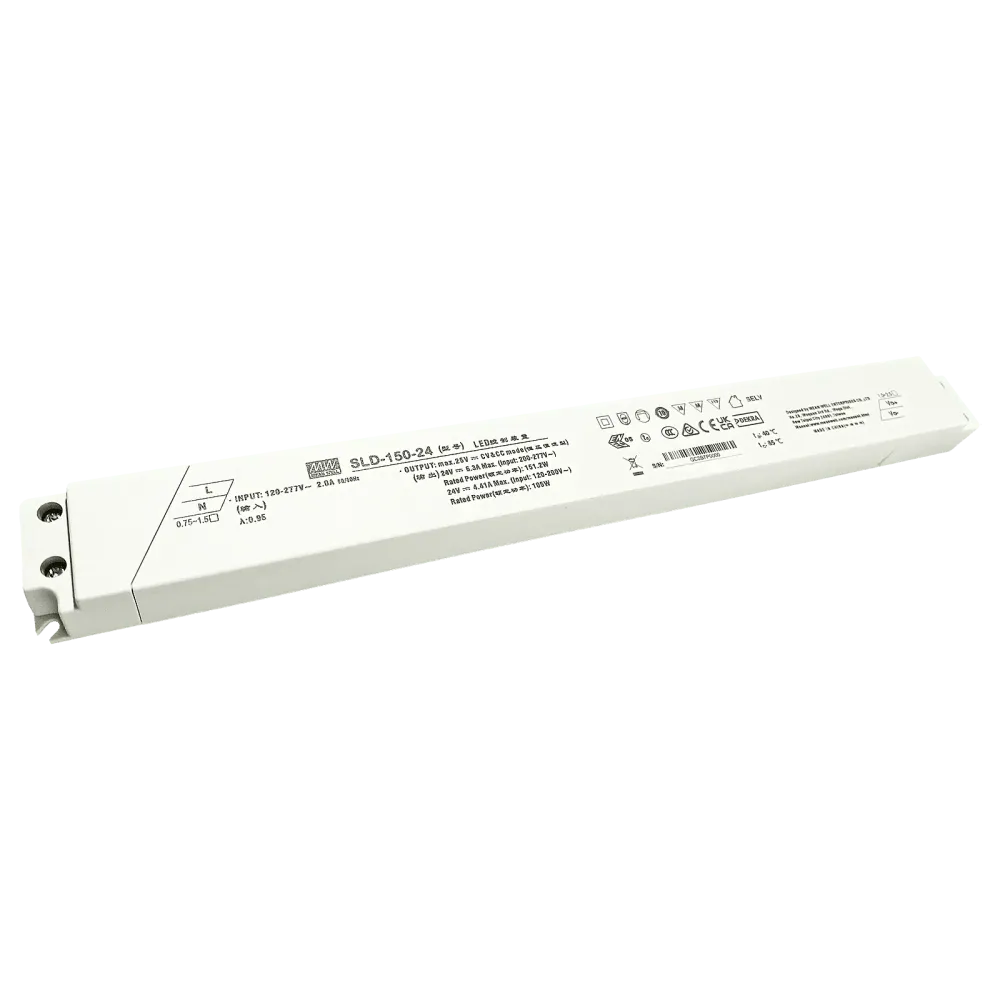

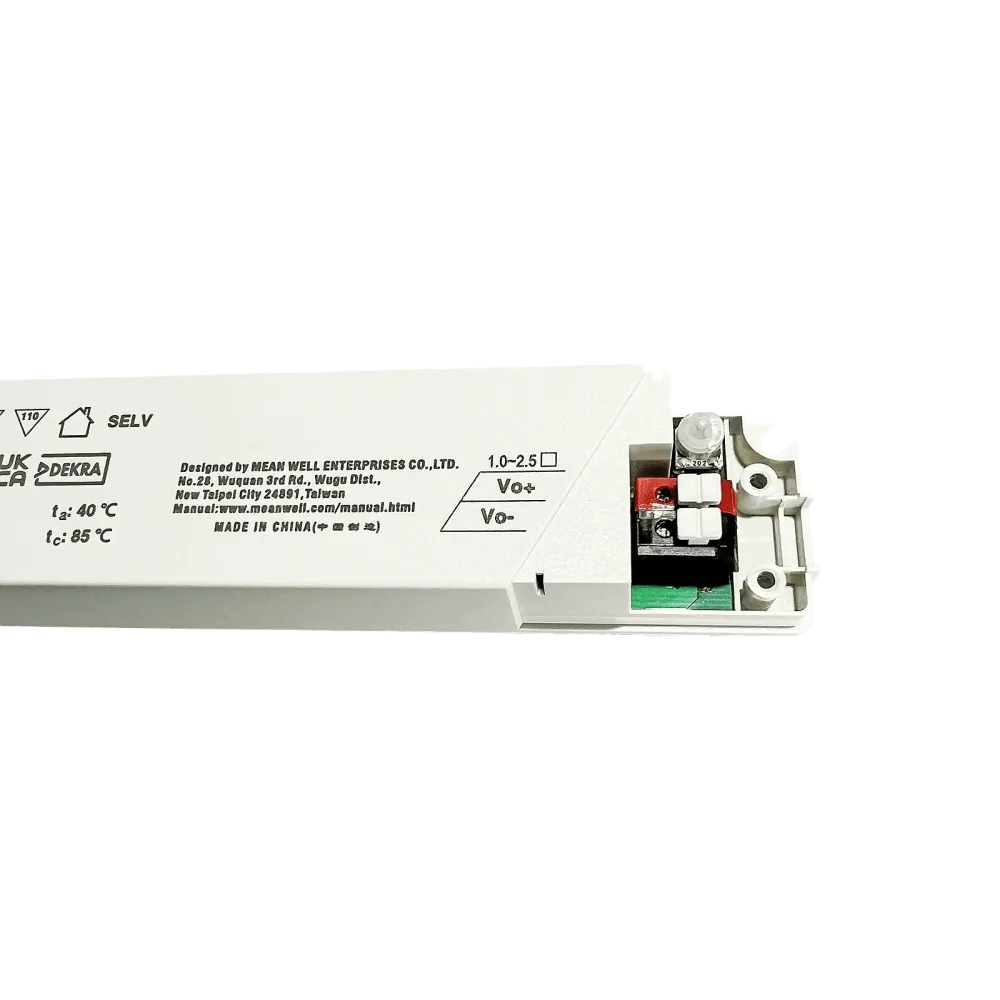

The SLD-150-56 LED driver with a width of just 35mm and a height of 22mm is suitable for constant current LED applications. The proven constant power circuit with extended operating window enables the same power supply unit to be used in different luminaires.
Technical data
- Slim design, only 35 mm wide and 22 mm high
- Constant power circuit for extended operating range
- Protection class II Device without earth connection
- Connections with spring terminals
- Dimensions 330 x 35 x 22mm (L x W x H)
Product specifications
| Application | Single color |
| Additional functions | Constant power |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Length | 330 mm |
| Current setting | Potentiometer |
| Height | 22 mm |
| Power | 150 W |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Width | 35 mm |
| Control | not dimmable |
Data sheets
