About the product

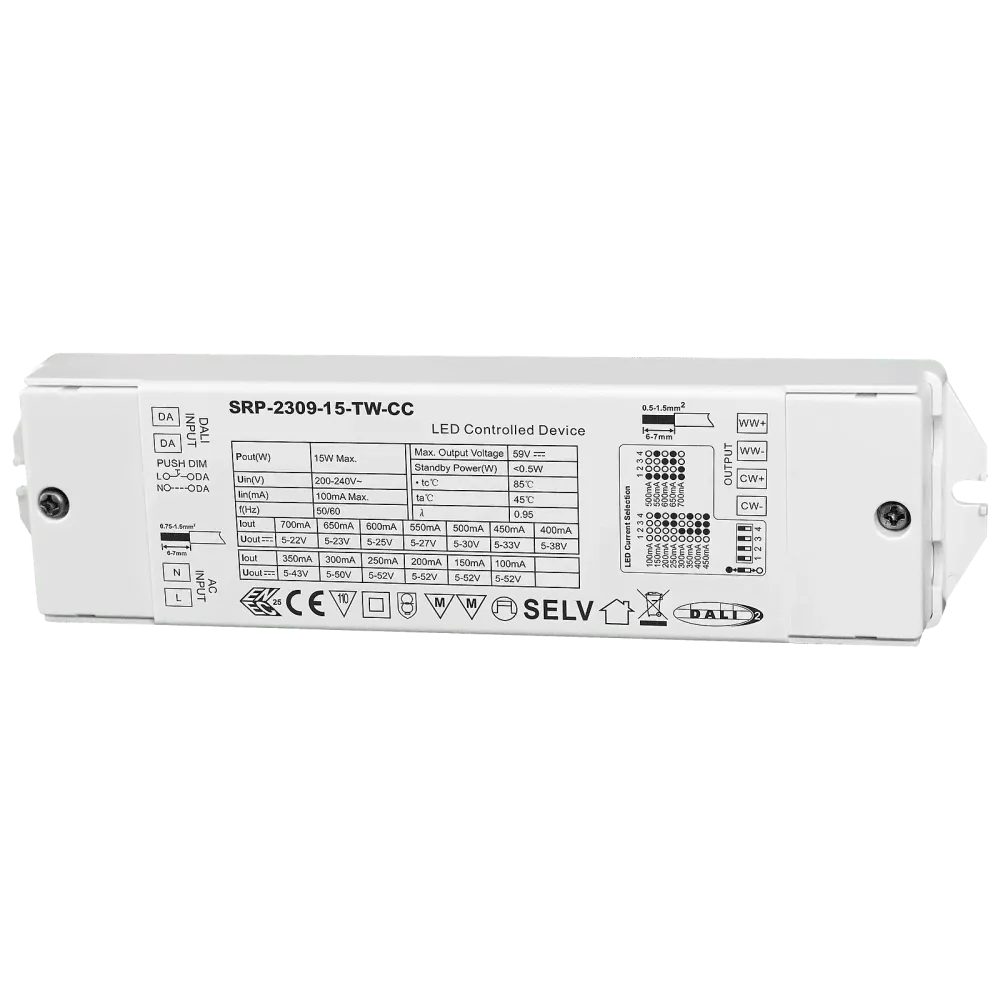

SRP-2309-15-TW-CC is a flexible, dimmable Tunable white LED converter with constant current output. The power supply unit can be controlled with DALI DT8.
Control
- DALI DT8
Application
- Tunable White
Dimming range
The load-dependent dimming range is 0.1% to 100%
Dimming method: Amplitude dimming
Technical data
DT8 dimmable 2-channel TW power supply unit
. In accordance with IEC 62386-101:2014, IEC 62386-
. 102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
. Built-in DALI-2 interface, DALI DT8 device
. Dimmable LED driver. Max. Output power 15W
. 2 channel 100~700mA constant current output, selectable via
. DIP switch
. Class 2 power supply, fully insulated plastic housing
. High power factor and efficiency
. For switching and dimming Tunable White LED lighting fixtures
. Amplitude dimming, smooth and deep dimming down to 0.1%
. Compatible with universal DALI masters that support DT8 commands
. IP20 protection class
. 5 year guarantee
. Dimensions: 178x46x22mm
Product specifications
| Manufacturer | Sunricher |
| Manufacturer's warranty | 5 years |
| Application | Tunable White |
| IP protection | IP20 |
| Width | 46 mm |
| Length | 178 mm |
| Power | 15 W |
| Control | DALI DT8 |
| Height | 22 mm |
| Connection | Screw terminal |
| Current setting | DIP switch |
| Channels | 2 |
| Dimming type | Current control |
