About the product

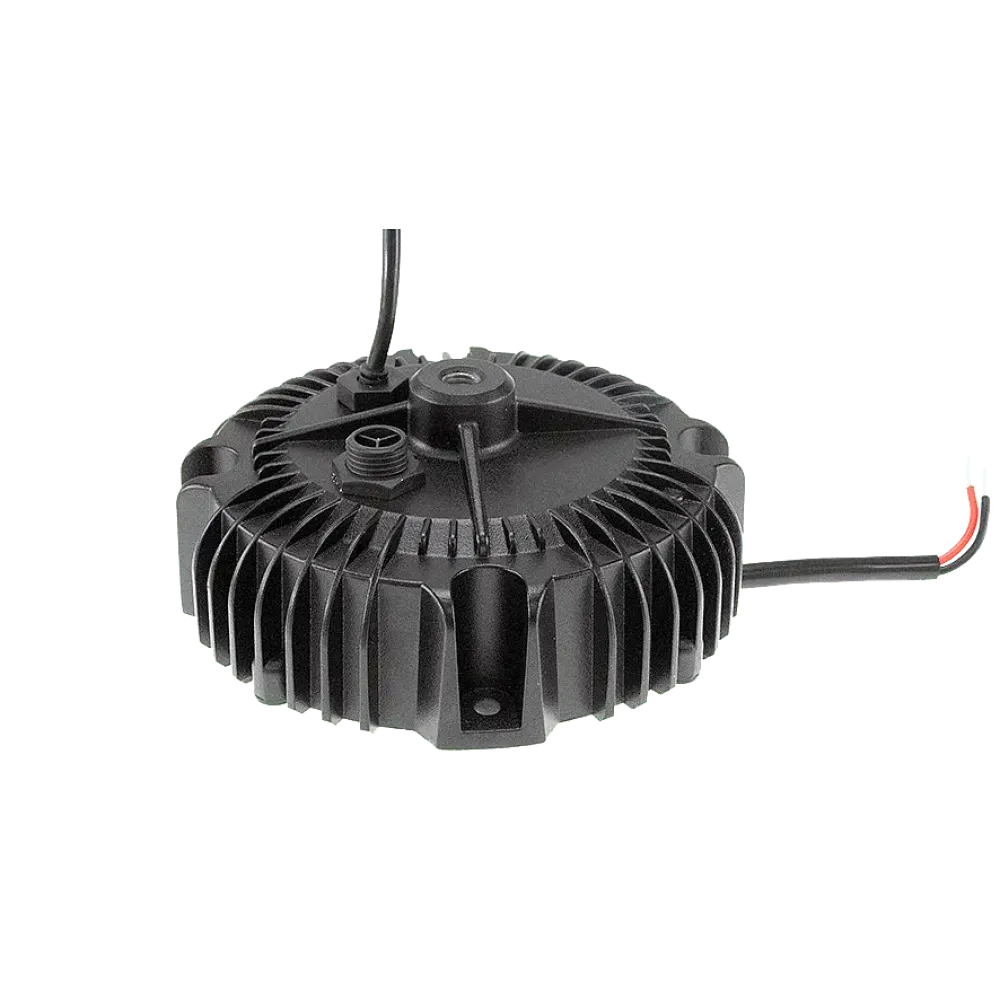

The XBG-160 LED driver with 160W constant power output is designed for the operation of LED lighting applications with constant current. Thanks to the IP67 protection, the power supply unit can be used in both indoor and outdoor applications. AB version with built-in dimming interface.
Control
- 0/1-10V signal (10V=100% Iout, 0.8V=8% Iout, 0V=Off)
- Resistance (100kΩ=100% Iout, 8kΩ =8% Iout,0kΩ=Off)
- 10V PWM signal (100% Duty Cycle=100% Iout, 8% Duty Cycle=8% Iout, 0% Duty Cycle=Off)
Dimming range
The dimming range is 8% to 100% of the set output current.
Technical data
- Output current adjustable with built-in potentiometer
- Extended operating range due to constant power design
- Output voltage range: 34 to 56Vdc
- Setting range for output current on the power supply unit: 1425 to 4100mA (default setting 3300mA)
- Built-in 3in1 dimming function (0-10Vdc, PWM, resistor)
- Dimming through current reduction
- Full power from 2850 to 4100mA
- Metal housing with IP67
- ø 151.5mm x 60mm(DxH)
Product specifications
| Application | Single color |
| Additional functions | Constant power |
| Connection | Cables |
| Dimming type | Current control |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Diameter | 151.5 mm |
| Height | 60 mm |
| Power | 160 W |
| Current setting | Potentiometer |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Control | 0-10V, 1-10V, resistor |
