About the product

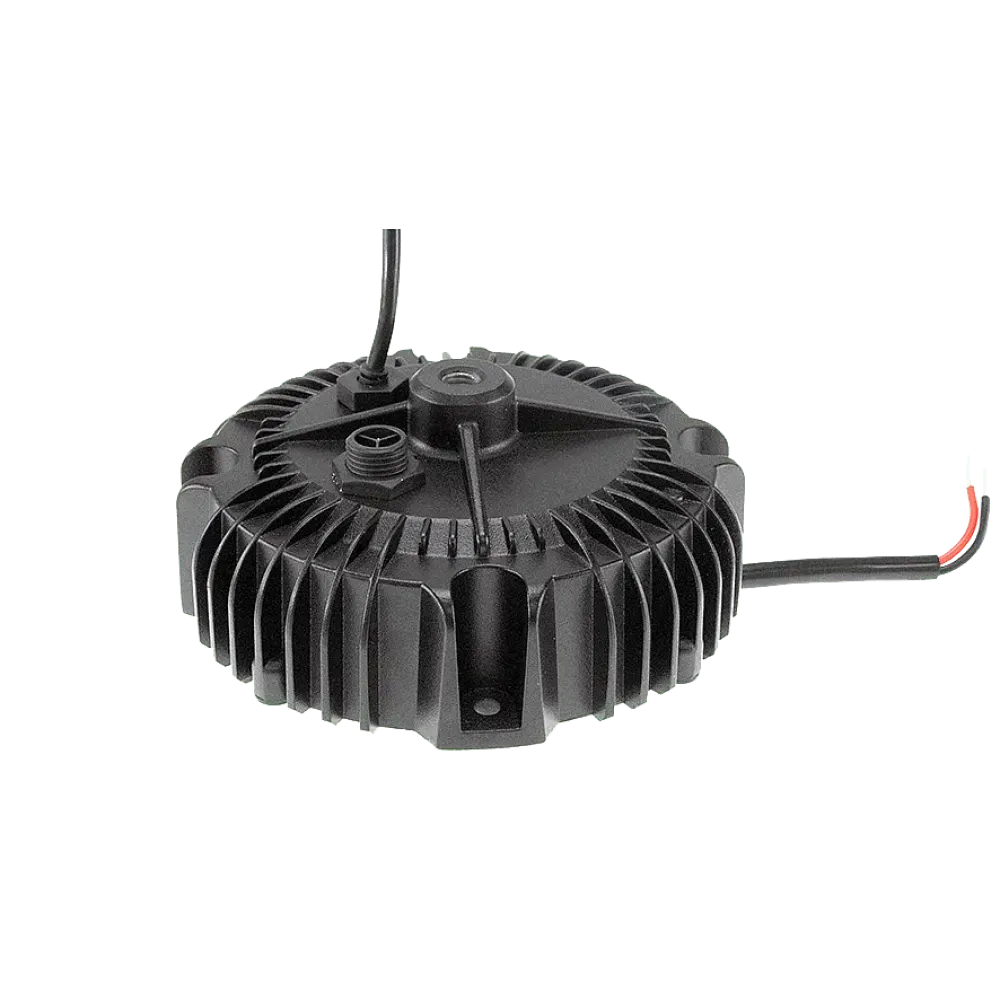

The XBG-160 LED driver with 160W constant power output is designed for the operation of LED lighting applications with constant current. Thanks to the IP67 protection, the power supply unit can be used in both indoor and outdoor applications.
Technical data
- Output current adjustable with built-in potentiometer
- Extended operating range due to constant power design
- Output voltage range: 34 to 56Vdc
- Setting range for output current on the power supply unit: 1425 to 4100mA (default setting 3300mA)
- Full power from 2850 to 4100mA
- Metal housing with IP67
- ø 151.5mm x 60mm(DxH)
Product specifications
| Application | Single color |
| Additional functions | Constant power |
| Connection | Cables |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Diameter | 151.5 mm |
| Height | 60 mm |
| Power | 160 W |
| Current setting | Potentiometer |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Control | not dimmable |
