About the product

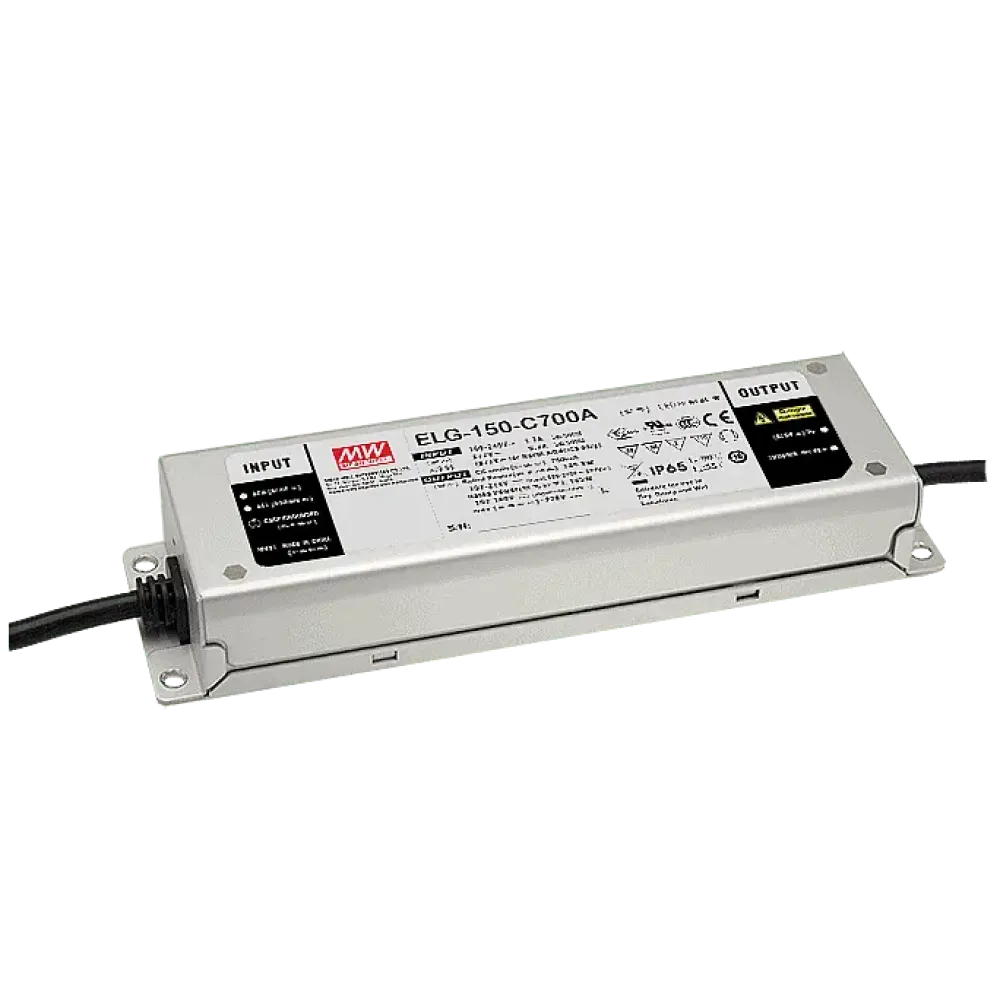

MEAN WELL ELG-150-Cxx3Y is an LED driver for use as a constant current source. Version with earth connection via cable. Current can be regulated on the LED driver.
Technical data
- Input voltage 100 to 305Vac (note derating at low input voltage)
- Service life >50,000 hours
- No load power consumption <0.5W
- IP65 design
- Fully encapsulated in a metal housing
- Operating temperature range from -40°C to +70°C
- Dimensions 199 x 63 x 35.5mm (L x W x H)
Product specifications
| Application | Single color |
| Connection | Cables |
| Manufacturer's warranty | 5 years |
| IP protection | IP65 |
| Current setting | Potentiometer |
| Height | 35.5 mm |
| Width | 63 mm |
| Length | 219 mm |
| Power | 150 W |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Control | not dimmable |
