About the product

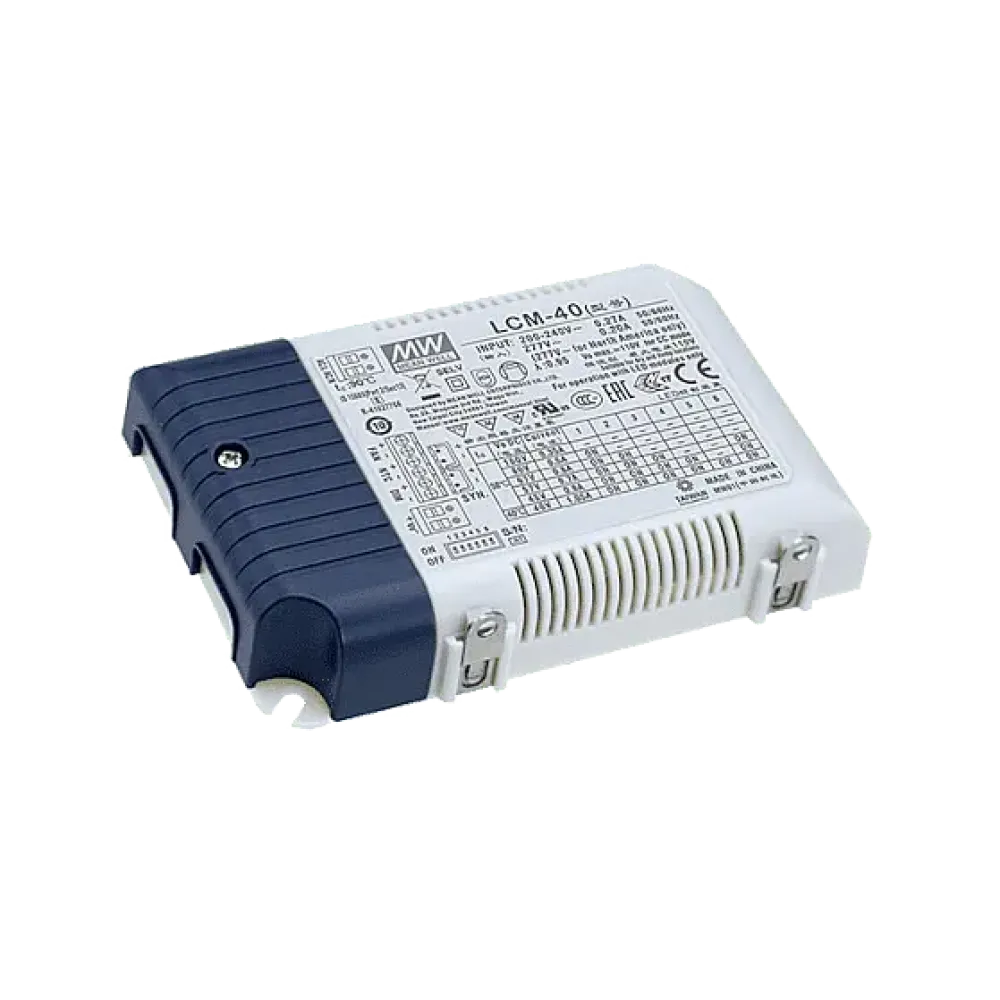

LCM-40EO is a flexible, dimmable LED converter with constant current output and integrated ENOCEAN wireless dimming.
Highlights
- The output current can be selected with the DIP switch on the power supply unit
- Wide voltage range of 2-100Vdc also enables the operation of smaller loads
- 3in1 dimming function (0-10V / 1-10V / resistor / 10V PWM control)
- ENOCEAN Wireless Dimming
- NTC function enables the light intensity to be regulated if the LED circuit board is too hot
- Dimming is flicker-free with current control, no PWM at the output
- Up to 10 LCMs can be synchronized in master/slave mode (additional SYNC cable required)
Control
- 0/1-10V signal (10V=100% Iout, 1V=10% Iout, 0V=Off)
- Resistance (100kΩ=100% Iout, 8kΩ =8% Iout,0kΩ=Off)
- 10V PWM signal (100% Duty Cycle=100% Iout, 10% Duty Cycle=10% Iout, 0% Duty Cycle=Off)
- ENOCEAN Wireless Dimming
Dimming range
The dimming range is 6% to 100% of the output current.
Product specifications
| Application | Single color |
| Control | Enocean, 0-10V, 1-10V, resistor, PWM control |
| Manufacturer's warranty | 3 years |
| Dimming type | Current control |
| Connection | Spring clamp |
| IP protection | IP20 |
| Height | 23 mm |
| Width | 81.5 mm |
| Length | 123.5 mm |
| Current setting | DIP switch |
| Power | 40 W |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Additional functions | NTC function |
