75W LED driver constant current 1400mA/27-54V, 3in1 dimming

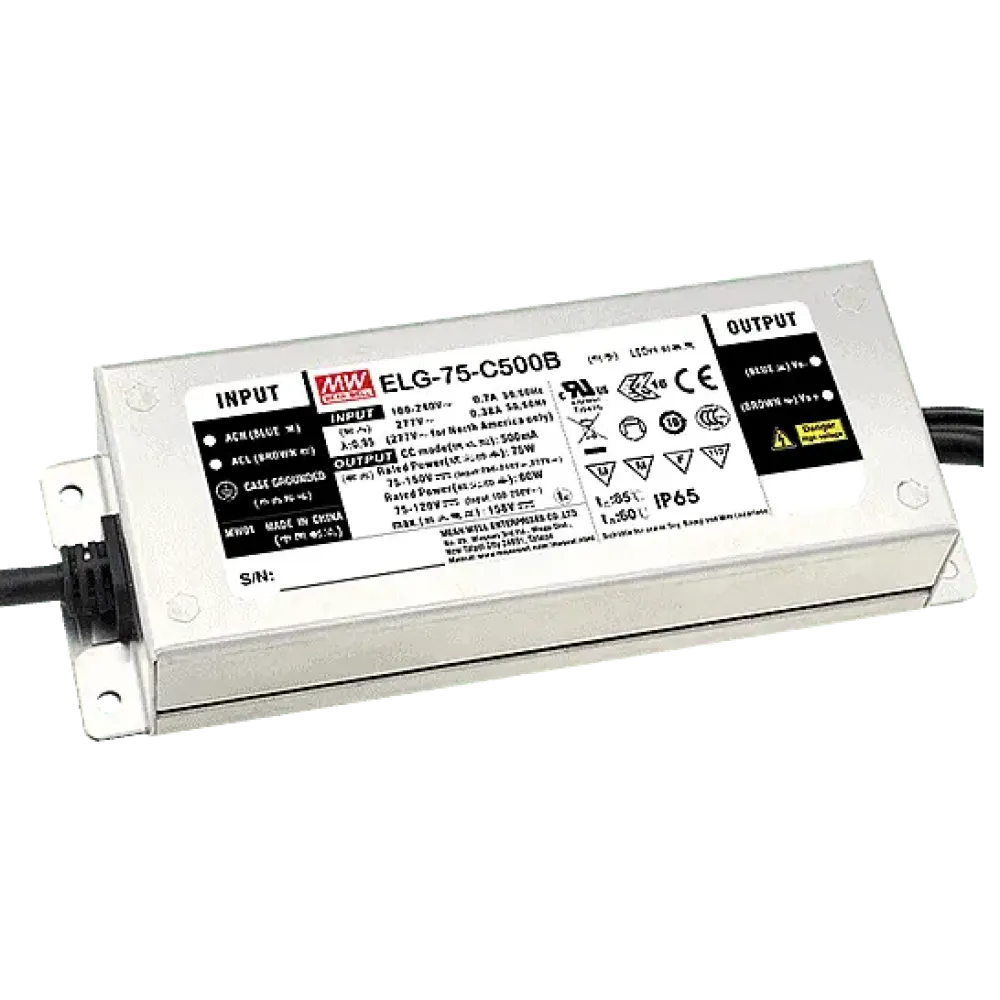

MEAN WELL ELG-75-CxxB-3Y is an LED driver for use as a constant current source. Version with earth connection on the cable, with 3in1 dimming function (dim-to-off).

The "B" versions of the ELG LED converters have a built-in 3in1 dimming interface. The output current can be regulated with 0/1-10V, PWM control or resistance on the separate control cable.

Control

• 0/1-10V signal (10V=100% Iout, 1V=10% Iout, 0V=Off)
• Resistance (100kΩ=100% Iout, 8kΩ =8% Iout,0kΩ=Off)
• 10V PWM signal (100% Duty Cycle=100% Iout, 10% Duty Cycle=10% Iout, 0% Duty Cycle=Off)

Dimming range

The dimming range is 8% to 100% of the output current.

Technical data

• Input voltage 100 to 305Vac (note derating at low input voltage)
• No load power consumption <0.5W
• Built-in 3in1 dimming function (dim-to-off)
• Service life >50,000 hours
• IP67 design, protected against short-term submersion
• Fully encapsulated in a metal housing
• Operating temperature range from -40°C to +70°C
• Dimensions 180 x 63 x 35.5mm (L x W x H)
