About the product

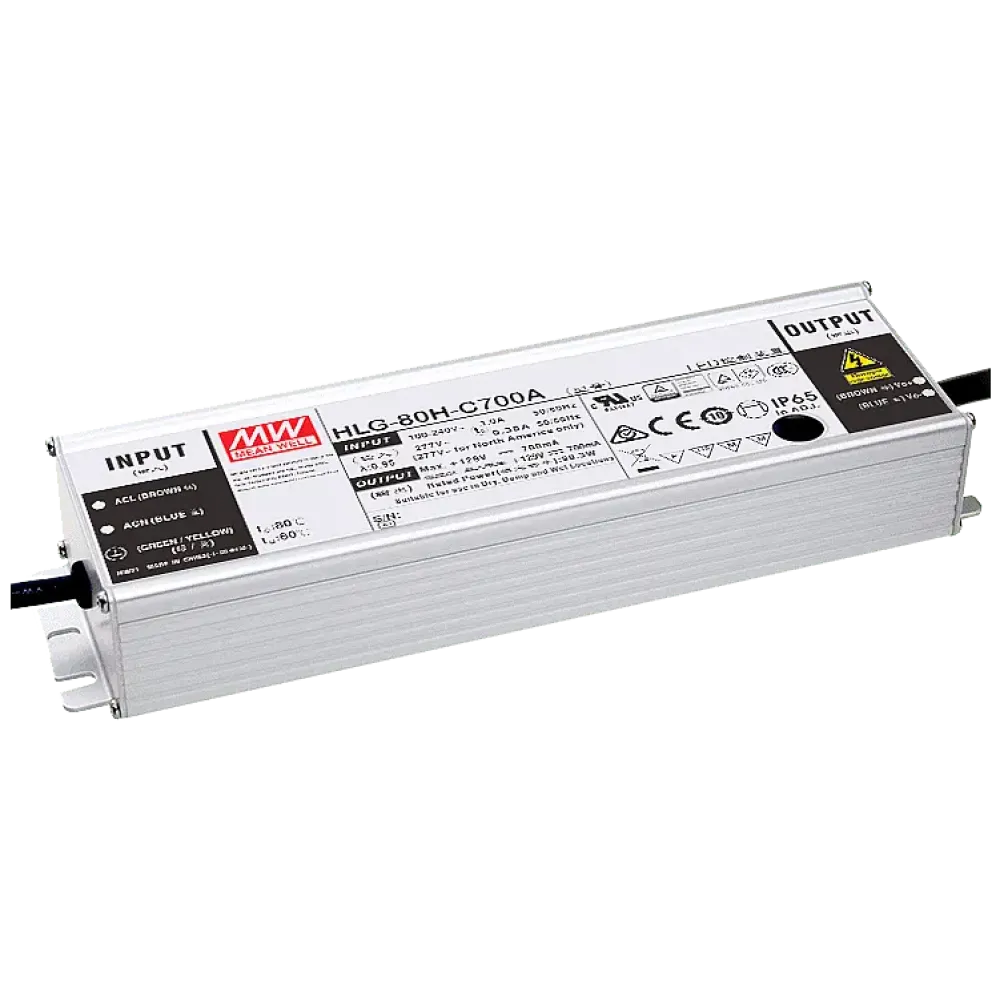

MEAN WELL HLG-80H-C is an LED driver for use as a constant current source. Current can be regulated on the LED driver.
Technical data
- Constant current driver with high output voltage
- Current adjustable on the driver
- IP65 design, splash-proof
- Very robust design with a long service life
- Fully encapsulated in aluminum housing
- Operating temperature range from -40°C to +70°C
- Dimensions 195.6 x 61.5 x 38.8mm (L x W x H)
Product specifications
| Application | Single color |
| Control | not dimmable |
| Connection | Cables |
| IP protection | IP65 |
| Power | 90 W |
| Length | 195.6 mm |
| Current setting | Potentiometer |
| Width | 61.5 mm |
| Height | 38.8 mm |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Manufacturer's warranty | 7 years |
Data sheets
