About the product

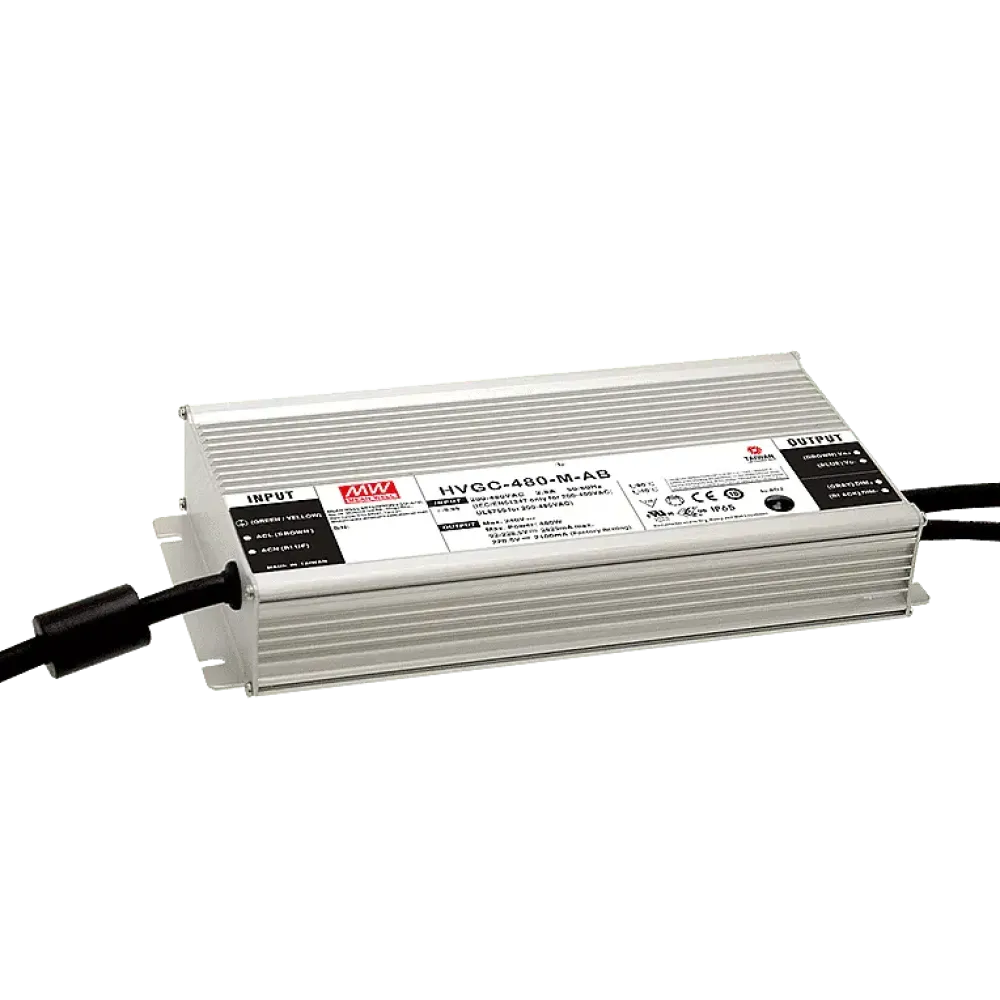

The HVGC-480 LED driver with 480W constant power output is designed for the operation of LED lighting applications with constant current. The high input voltage range of 180 to 528Vac enables use in applications with 3-phase mains without a neutral conductor.
Control
- 0/1-10V signal (10V=100% Iout, 0.6V=6% Iout, 0V=Off)
- Resistance (100kΩ=100% Iout, 6kΩ =6% Iout,0kΩ=Off)
- 10V PWM signal (100% Duty Cycle=100% Iout, 6% Duty Cycle=6% Iout, 0% Duty Cycle=Off)
Dimming range
The dimming range is 6% to 100% of the set output current.
Technical data
- Input voltage 180 to 528Vac
- Output current adjustable with built-in potentiometer
- Extended operating range due to constant power design
- Output voltage range HVGC-480-M: 92 - 228.5Vdc
- Current range for full power HVGC-480-M: 2100 - 2625mA
- Setting range for output current on the HVGC-480-M power supply unit: 1050 - 2625mA
- Current set to 2100mA ex works
- Metal housing with IP65
- Built-in 3in1 dimming function (0-10V, 10V PWM signal, resistor)
- Dimensions 262 x 125 x 43.8mm (L x W x H)
Product specifications
| Application | Single color |
| Connection | Cables |
| Dimming type | Current control |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Width | 125 mm |
| Length | 262 mm |
| Power | 480 W |
| Current setting | Potentiometer |
| Height | 43.8 mm |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Control | 0-10V, 1-10V, resistor |
