About the product

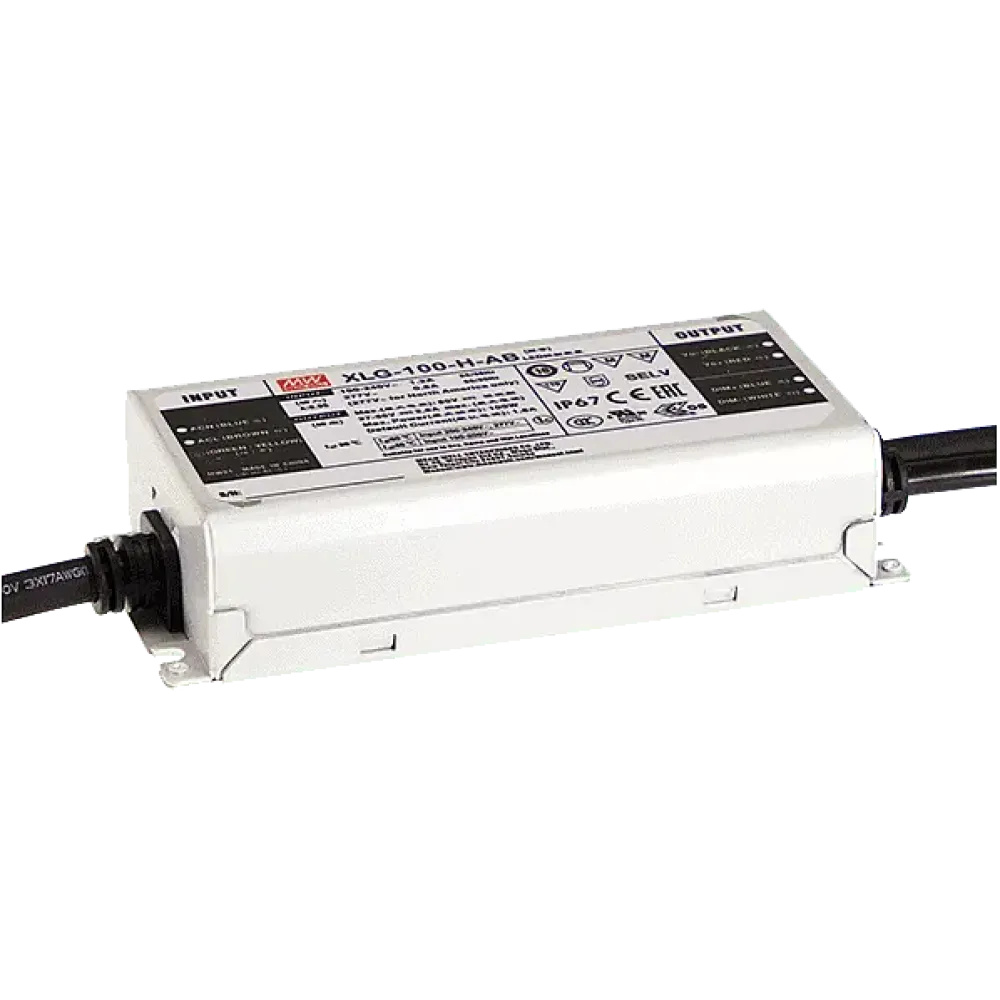

The XLG-100 LED driver with 100W constant power output is designed for the operation of LED lighting applications with constant current. Thanks to the IP67 protection, the power supply unit can be used in both indoor and outdoor applications.
Technical data
- Output current adjustable with built-in potentiometer
- Extended operating range due to constant power design
- Output voltage range: 27 to 56Vdc
- Setting range for output current on the power supply unit: 875 to 2780mA (default setting 2100mA)
- Full power from 875 to 2780mA
- Metal housing with IP67
- Dimensions 140 x 63 x 32mm (L x W x H)
Product specifications
| Height | 32 mm |
| Additional functions | Constant power |
| Connection | Cables |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Power | 100 W |
| Length | 140 mm |
| Current setting | Potentiometer |
| Width | 63 mm |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Application | Single color |
| Control | not dimmable |
